Alpitronic Hypercharger HYC400 EV Charger (100 kW – 400 kW)

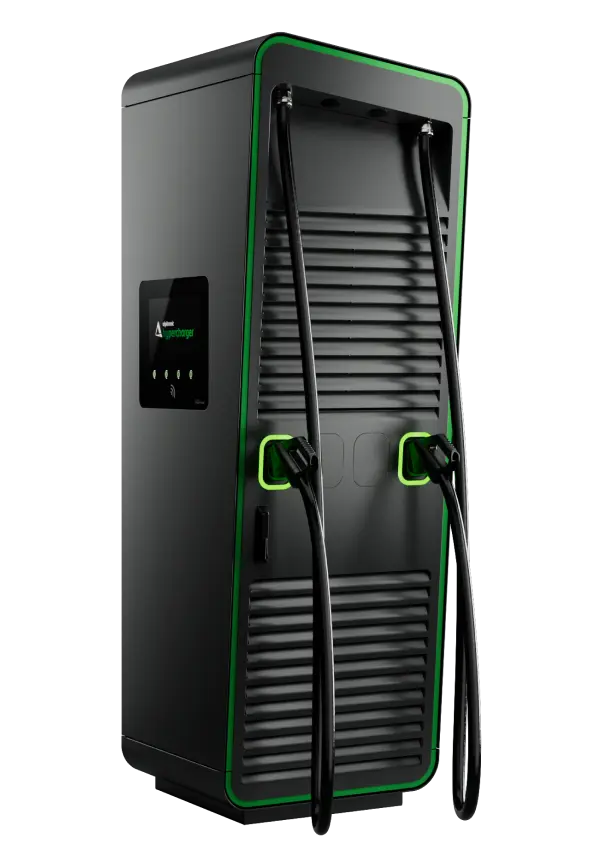

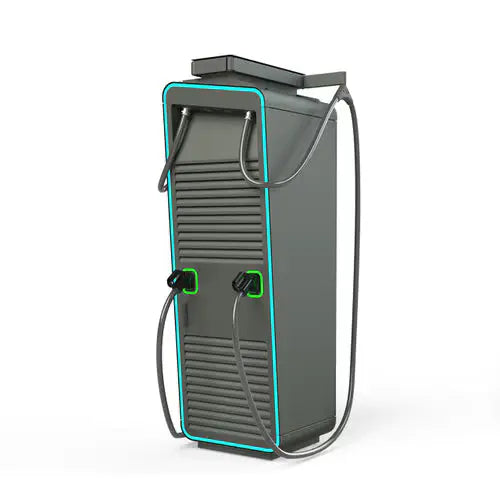

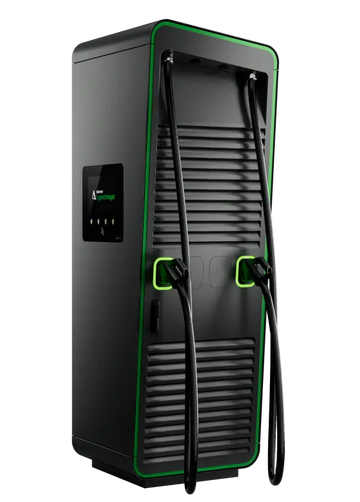

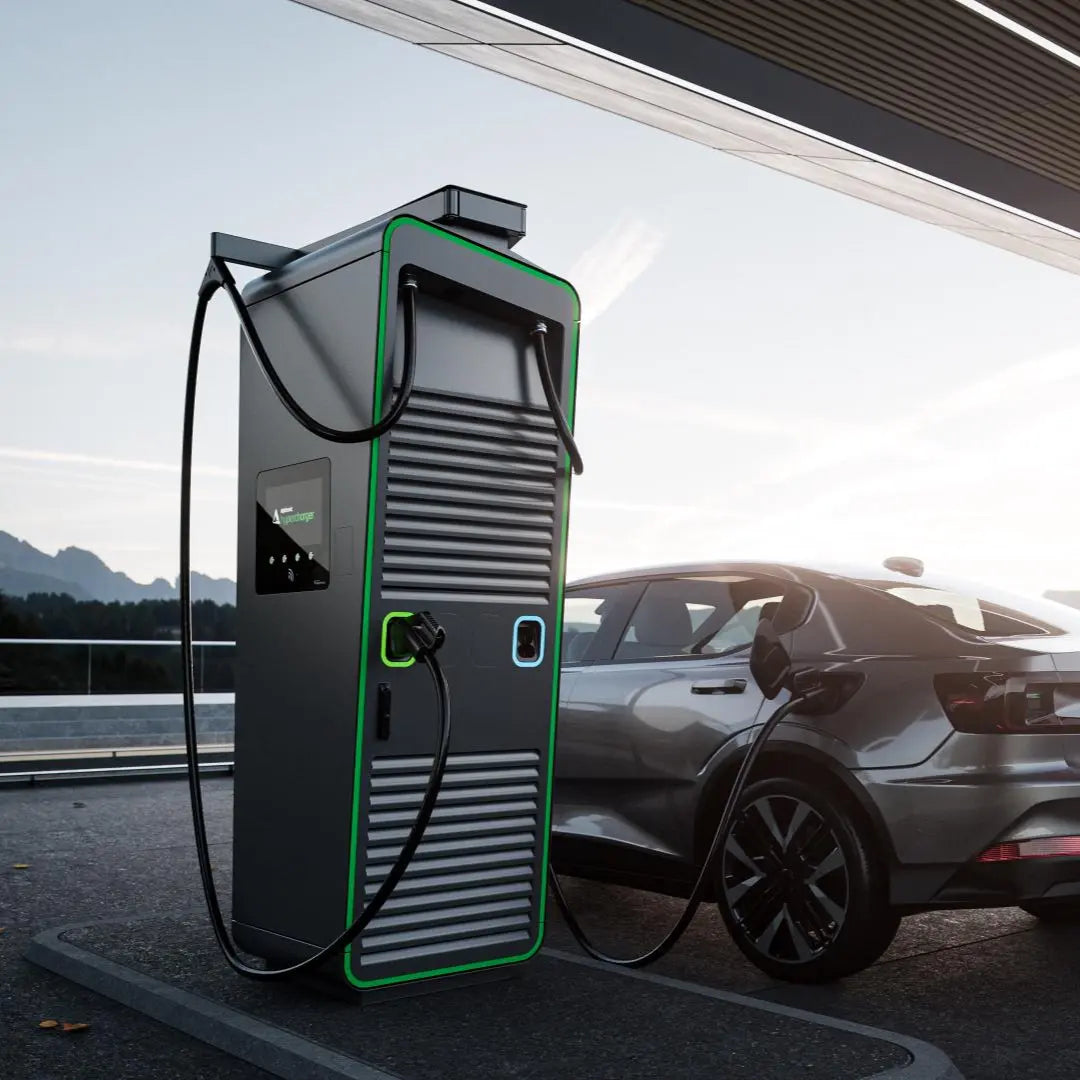

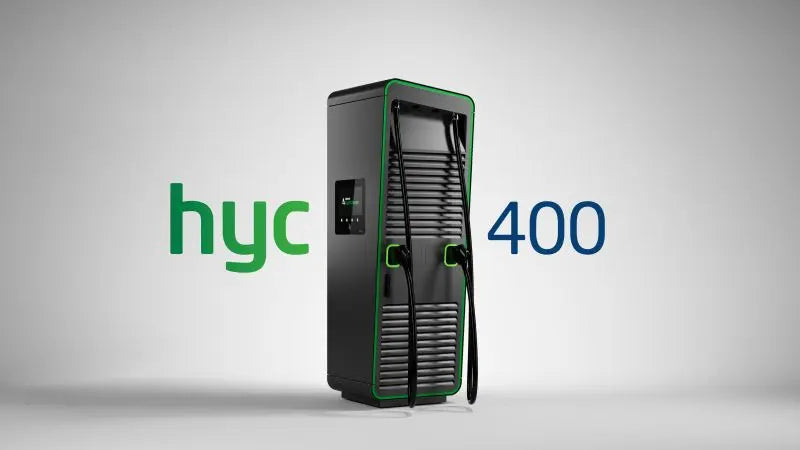

Alpitronic Hypercharger HYC400 – The World's Most Efficient 400 kW DC Fast Charger
The Alpitronic Hypercharger HYC400 is a scalable, high-performance DC fast charging system delivering up to 400 kW of output power. Designed for commercial vehicle charging and high-performance EVs, it features groundbreaking SiC semiconductor technology achieving up to 97.5% efficiency — the best in class.
Key Features
- Scalable from 100 kW to 400 kW using modular 100 kW Power-Stacks
- Up to 1,200 A total output current per charging system
- Up to 500 A per connector (prepared for 600 A boost)
- Best-in-class efficiency: up to 97.5%
- Full power delivery from 320 V onwards
- Wide output voltage range: 150 V – 1,000 V DC
- Simultaneous charging of up to 3 vehicles
- Dynamic load management with 50 kW granularity
- Scalable and upgradable via the Power-Stack concept
- Indoor and outdoor installation
- Customizable branding, housing colors, and wrapping options
Technical Specifications
| Specification | Value |
|---|---|
| DC Interfaces | CCS2, CHAdeMO, CCS1*, NACS*, GB/T* (*Only upon special OEM request) |
| Max DC Output Power | 100 kW (1x Stack) / 200 kW (2x) / 300 kW (3x) / 400 kW (4x) |
| Output Voltage Range | 150 Vdc – 1,000 Vdc |
| Max Output Current | 500 A continuous (600 A boost) |
| Power Granularity | 50 kW |
| AC Input Voltage | 400 V -15% / +10% (3-phase) |
| Max AC Input Current | 630 A (RMS) |
| Input Frequency | 50 Hz / 60 Hz |
| Power Factor | > 0.99 @ full load |
| Efficiency | Up to 97.5% @ full load |
| Standby Power | 43 W |
| Operating Temperature | -30°C to +55°C |
| Humidity | 10% – 95% relative (non-condensing) |
| Protection Rating | IP54 |
| Impact Resistance | IK10 (IEC 62262) |
| Noise Emission | < 52 dBA (@ 20°C, 3 m distance) |
| Dimensions (H x W x D) | 2,185 x 732 x 663 mm |
| Weight | 560 kg – 890 kg (depending on configuration) |
| User Interface | 15.6" display, 4 buttons |
| Network Connection | LTE/UMTS/GSM 4G/3G/2G, 10/100Base-T Ethernet, WLAN |
| Communication Protocol | OCPP 1.6 J (ready for 2.0 J) |
| User Registration | RFID reader (ISO/IEC 14443A/B, ISO/IEC 15693), optional credit card / QR-code reader |
| Remote Management | Remote access, diagnostics, software updates |
| Cable Lengths | 3.5 m or 5 m (with or without Cable Management System) |
| Installation | Floor mounted on plinth or base (optional concrete foundation) |
Certifications & Compliance
- TÜV Süd CB DE3-D0044
- EU Directives: 2014/53/EU (RED), 2011/65/EU (RoHS2), 2015/863/EU (RoHS3), 2012/19/EU (WEEE), 1907/2006 (REACH)
- Electrical Safety: IEC 61851-1, IEC 61851-23, IEC 61439-7, IEC 62311, IEC 62477-1
- EMC: EN 61000-6-4, EN 61000-6-2, IEC 61851-21-2
- DC Protocol: CCS1/2 SAE J1772 / EN 61851-24 / DIN SPEC 70121; ISO 15118; CHAdeMO 1.2; GB/T 27930
After-Sales & Warranty
Alpitronic's Hyperservices team provides 24/7 support, including remote and on-site assistance. Alpitronic handles all technical questions, repairs, and maintenance in collaboration with certified partners. Service options are flexible and include CPMS integration support. Contact us for warranty terms and service contract options.
Configuration Options
- Custom colors (powder coating), foil application, and stickers
- Cable Management System (CMS) for 5 m cables
- Optional barrier-free version (DIN 18040-3 compliant)
- Payment systems: credit card, EC card, QR-code readers
- DC meters per German Calibration Law
- Emergency stop button, crash/tilt sensor, door contact switch
- Multilingual GUI (27 languages)
Product Datasheet
📄 Download Official HYC400 Product Data Sheet (PDF)
📄 Download HYC400 Data Sheet V1-1 (PDF)
More information: Alpitronic Official Product Page
