AIMS Power 4000 Watt Pure Sine Inverter Charger 24Vdc to 120/240Vac Output Listed to UL & CSA | PICOGLF4024240SUL

AIMS Power 4000 Watt Pure Sine Low Frequency Inverter Charger – Split Phase

AIMS Power 4000 Watt Pure Sine Low Frequency Inverter with built-in battery charger and transfer switch. This inverter charger is perfect for medium-sized industrial applications that depend upon power being available even under heavy load. Use this product for renewable solar, off-grid, business back up power, mobile and emergency backup power applications anywhere that uses 100/110/120/220/230/240 volts of alternating current. Features auto frequency detection that allows users to operate at either 50 or 60 hertz.

This AIMS power inverter charger includes a powerful 55 amp charger and is capable of accepting any source of 240V AC power to charge batteries, including a gas or diesel generator or shore power.

The 4000 watt inverter charger is capable of a 12000 watt surge for 20 seconds and can run at 4000 watts continuously. Low-voltage shut-down keeps the voltage at either 20 volts or 21 volts. Battery priority mode lets you run directly off a battery back-up system. Power saver mode pulses every 30 seconds, drawing ~0.5A/hr in sleep mode.

BACKED BY A 3 YEAR WARRANTY & LIFETIME TECH SUPPORT.

Features

• 4000 watt low frequency inverter
• 12000 watt surge for 20 seconds – 300% surge capability
• 24 Volt DC input
• Split phase 120/240Vac output
• Listed to UL 458, 1741, 1012 and CSA 22.2 NO. 107.1 & 107.2
• Battery priority selector
• Terminal block
• Marine coated and protected
• Multi stage smart charger – 55 Amp
• Charges lithium LiFePO4, GEL, AGM and lead batteries

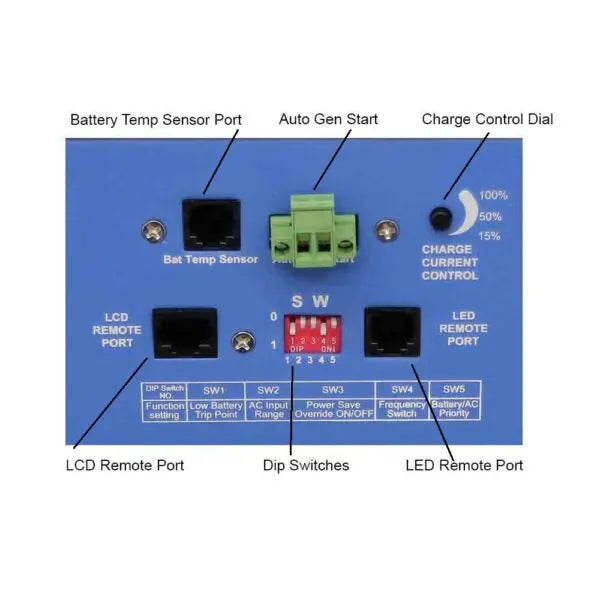

• Remote panel available – LED or LCD
• Auto frequency detection (50/60 Hz)
• 10ms typical transfer time
• Selectable 25W power save mode (hibernation)
• 7 battery type settings for charger
• Allows start up and through power with depleted batteries
• Automatic transfer switch

Output Specifications

• Continuous output power: 4000 Watts
• Surge rating: 12000 Watts (20 Seconds)
• Output waveform: Pure Sine / Same as input (Bypass Mode)
• Output voltage: 100-110-120-220-230-240Vac
• Output breaker: 30 Amps
• Nominal efficiency: >88% (Peak)
• Line mode efficiency: >95%
• Output frequency: 50Hz ±0.3Hz / 60Hz ±0.3Hz
• Typical transfer time: 10ms (Max)
• THD: <10% DC
• Ambient operating temperature: 14°F to 122°F (-10°C to 50°C)

Input / DC Specifications

• Nominal input voltage: 24.0Vdc
• Minimum start voltage: 20.0Vdc
• Low battery alarm: 21.0Vdc – 22.0Vdc
• Low battery trip: 20.0Vdc – 21.0Vdc
• High voltage alarm: 32.0Vdc
• Low battery voltage restart: 26.6Vdc
• Idle consumption: 52.5 watts
• Idle consumption with power saver mode ON: <25 watts

Charger Specifications

• Charger rate: 55A
• Over charge protection shutdown: 31.4V
• Selectable charge setting based on battery type
• Adjustable charge current: off-15%-100%
• Four stage smart charger
• 30 amp automatic transfer switch

Physical Dimensions

• Unit Weight: 84 lb.
• Unit Size (L x W x H): 19 x 16.5 x 8 inches
• Shipping Weight: 88 lb
• Shipping Dimensions (L x W x H): 30.5 x 14.25 x 13.75 inches

Certifications

Listed to UL 458, 1741, 1012 and CSA 22.2 NO. 107.1 & 107.2

Warranty

3 Year Warranty + Lifetime Tech Support

Manual / Datasheet

Download AIMS Power 4000W Inverter Charger Manual (PICOGLF4024240SUL)

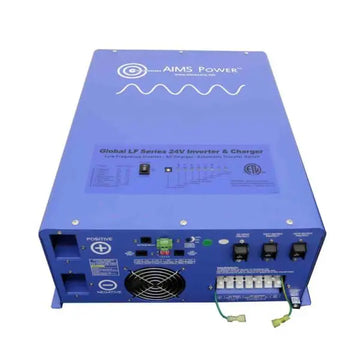

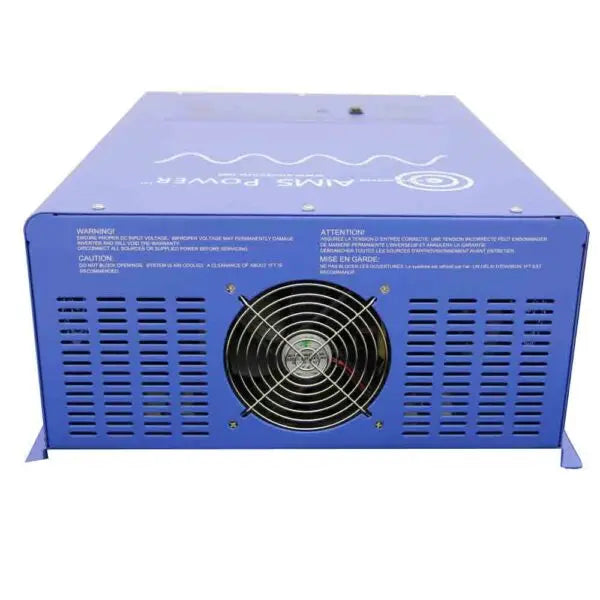

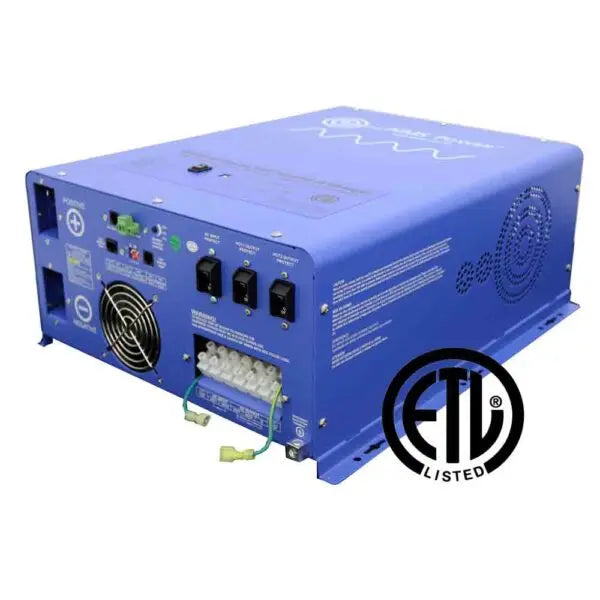

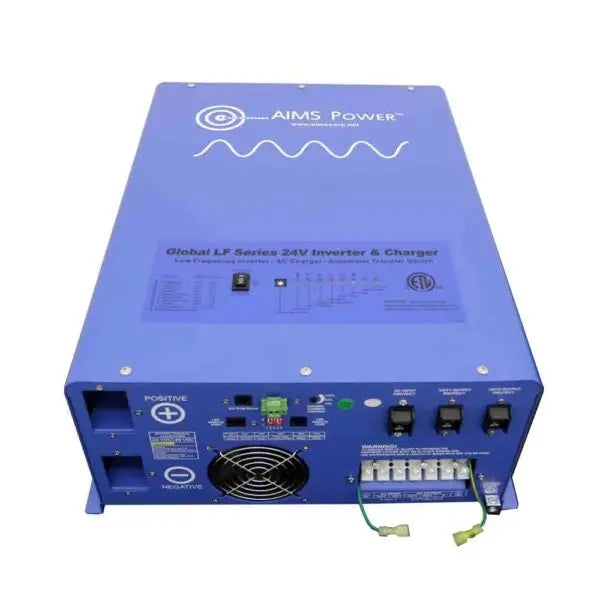

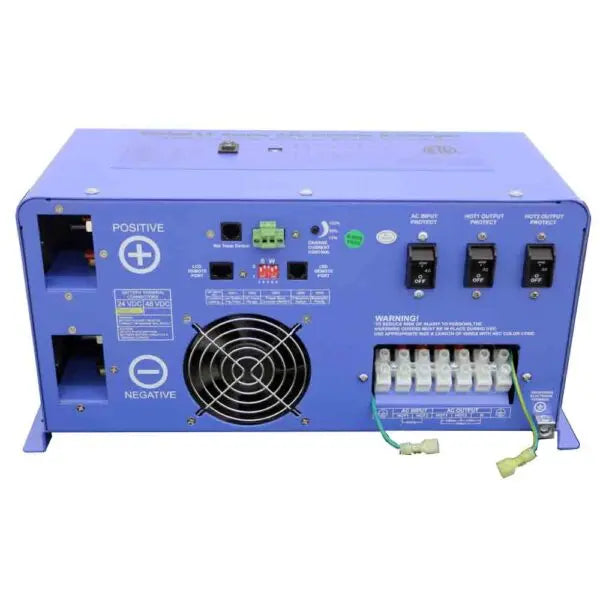

Product Images

Source: AIMS Corp Product Page
