ABB Model Case Circuit Breaker

Comprehensive Overview of ABB Circuit Breaker Model Case

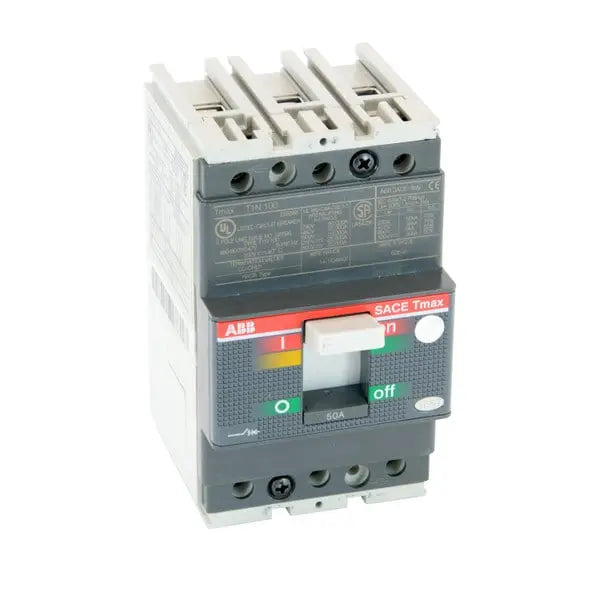

The ABB T1N050TL Molded Case Circuit Breaker is a critical component for reliable electrical protection in industrial and commercial power systems. Engineered for performance and safety, this thermal-magnetic circuit breaker is designed to interrupt overloads and short circuits, helping to protect wiring, equipment, and personnel from electrical hazards. With a 50-amp rating and a 3-pole configuration, it is well-suited for a wide range of applications where compact, high-performance protection is required.

This breaker is part of ABB's trusted Tmax T1 series, known for its durable construction and compliance with global standards. It features panel mounting and includes line and load side lugs for ease of installation. Whether used in a panelboard or switchgear assembly, the T1N050TL ensures consistent, long-term protection.

Key Features:

• Breaker Type: Molded Case Circuit Breaker (MCCB)
• Amperage Rating: 50A
• Poles: 3-Pole
• Trip Mechanism: Thermal-Magnetic
• Voltage Rating: 600V AC / 500V DC
• Interrupting Capacity: 22kA at 480V AC
• Mounting Type: Panel Mount
• Standards Compliance: UL 489, CSA C22.2, IEC 60947-2
• Construction: Durable molded case with included line and load lugs

This molded case circuit breaker is a dependable solution to enhance electrical system protection and maintain uptime in demanding environments, offering robust performance and straightforward installation.

Documents:
T1N050TL - Specification Sheet

Durability and Design of ABB Circuit Breaker

The ABB Circuit Breaker model case is engineered for resilience and long-term reliability, ensuring secure electrical protection across various applications. Its robust construction enables it to withstand harsh industrial environments while maintaining optimal performance. Designed with precision, the circuit breaker integrates seamlessly into power distribution systems, offering enhanced safety and operational efficiency. This model case exemplifies ABB’s commitment to quality, combining sturdy materials with innovative technology to prevent electrical faults and damage.

Advanced Safety Features

Safety is paramount in the ABB Circuit Breaker model case, which is equipped with advanced trip mechanisms to detect overloads, short circuits, and electrical faults promptly. These protective features help to minimize risks of fire, equipment damage, and downtime. The circuit breaker’s intelligent design supports easy maintenance and operational reliability, making it a preferred choice for industrial and commercial electrical safety. Its precise response capability safeguards critical electrical networks, increasing overall system stability.

Application and Versatility

The ABB Circuit Breaker model case is highly versatile, suitable for a wide range of applications from industrial plants to commercial buildings and infrastructure projects. It efficiently manages multiple voltage ratings and current capacities, catering to diverse power requirements. This adaptability ensures that the circuit breaker provides dependable protection in various electrical installations. Its user-friendly installation and compatibility with other ABB products make it an excellent solution for upgrading or expanding existing electrical systems.
