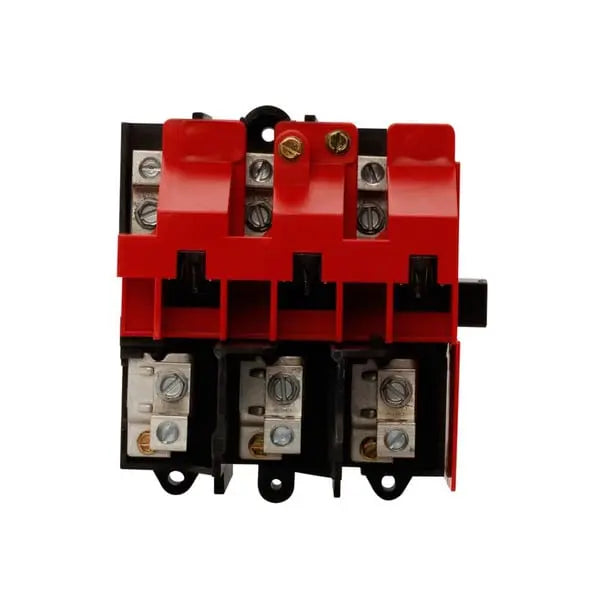

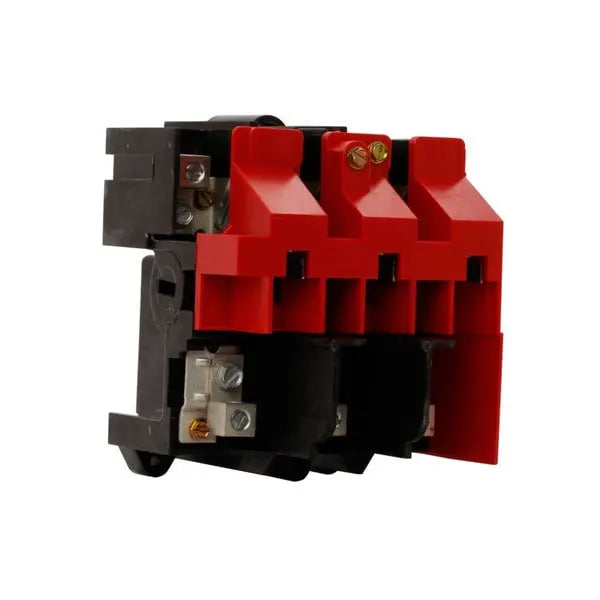

70-7758-13 - Eaton Safety Switch Base

The Eaton Safety Switch Base is an essential component used with 30A and 60A, three-pole and six-pole, 600V non-fusible safety switches. This switching base provides a reliable and secure foundation for the operation of safety switches in various industrial and commercial applications. It is designed for use in environments requiring NEMA 1, 3R, 4, and 12 ratings, ensuring protection against dust, water, and other environmental factors. The base is compatible with both three-pole and six-pole configurations, offering flexibility and reliability in electrical systems.

Key Features:

• Accessory Type: Safety Switch Base
• Purpose: Provides a secure foundation for 30A and 60A, three-pole and six-pole non-fusible safety switches
• Compatibility: Used with 30A, three and six-pole, 600V non-fusible safety switches
• NEMA Ratings: NEMA 1, 3R, 4, and 12 for versatile protection
• Voltage: 600V
• Durability: Designed for use in industrial and commercial environments

This safety switch base is a critical accessory for ensuring the safe and reliable operation of non-fusible safety switches, contributing to the overall safety and performance of the electrical system.

Documents:

Catalogs
Commercial Distribution, Switching Devices, Volume 2, Tab 1

Specifications and datasheets
Eaton Specification Sheet - 70-7758-13
