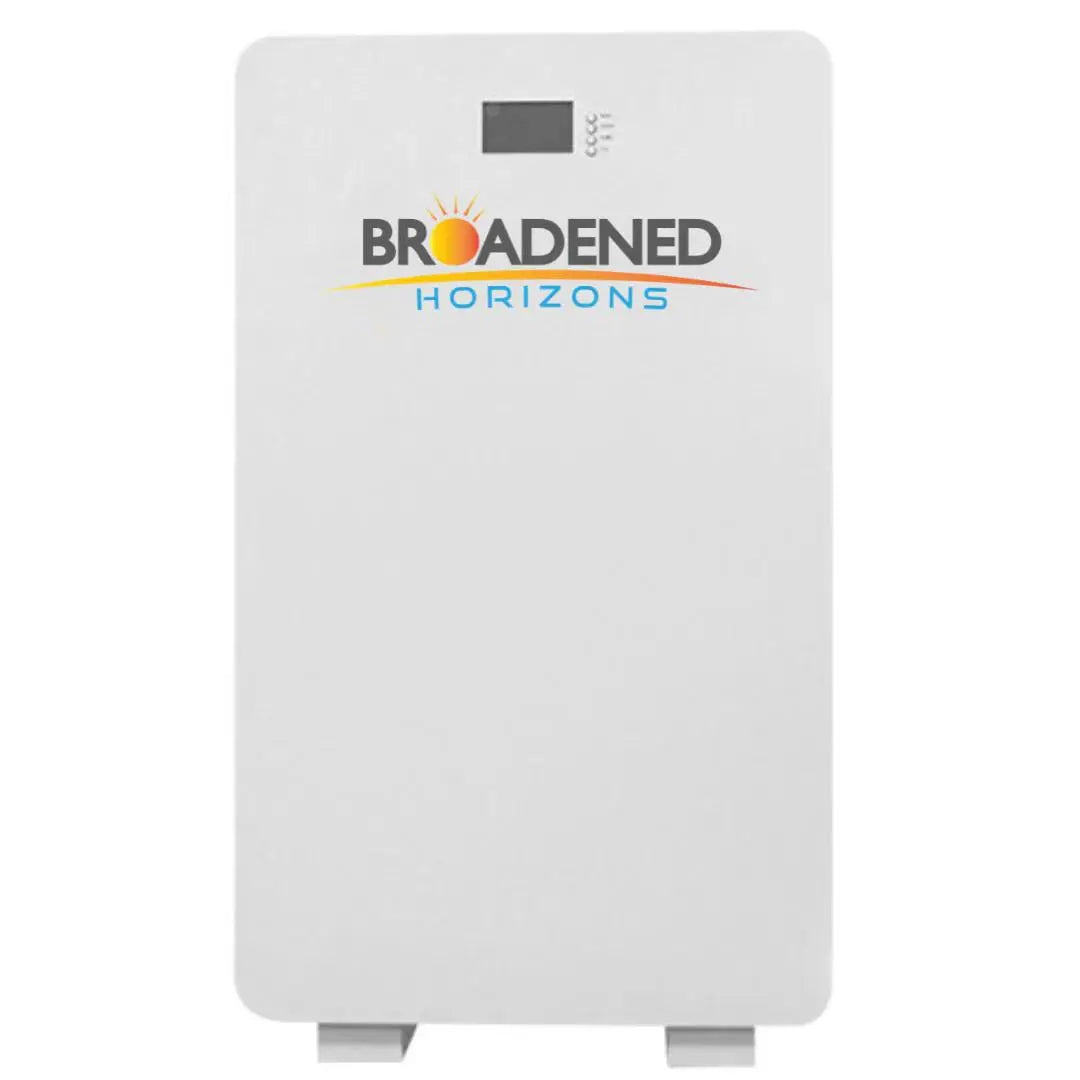

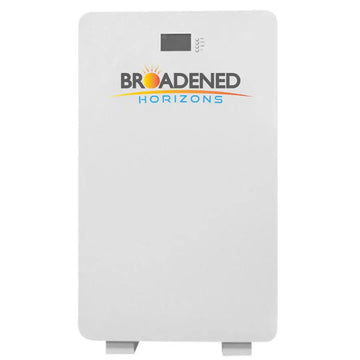

48 V DC-Direct Wall Mount LiFePO₄ Battery — Solar Energy Storage System
This wall-mounted 48 V LiFePO₄ (lithium iron phosphate) battery is designed specifically for solar energy storage systems that use DC-coupled architectures. It offers a durable, compact, and efficient energy reserve for residential, small commercial, or off-grid applications.
Key Features & Benefits
-
DC-Direct Integration
Built for systems where battery output is fed directly into DC-coupled inverters or charge controllers. Eliminates extra conversion losses and simplifies wiring. -

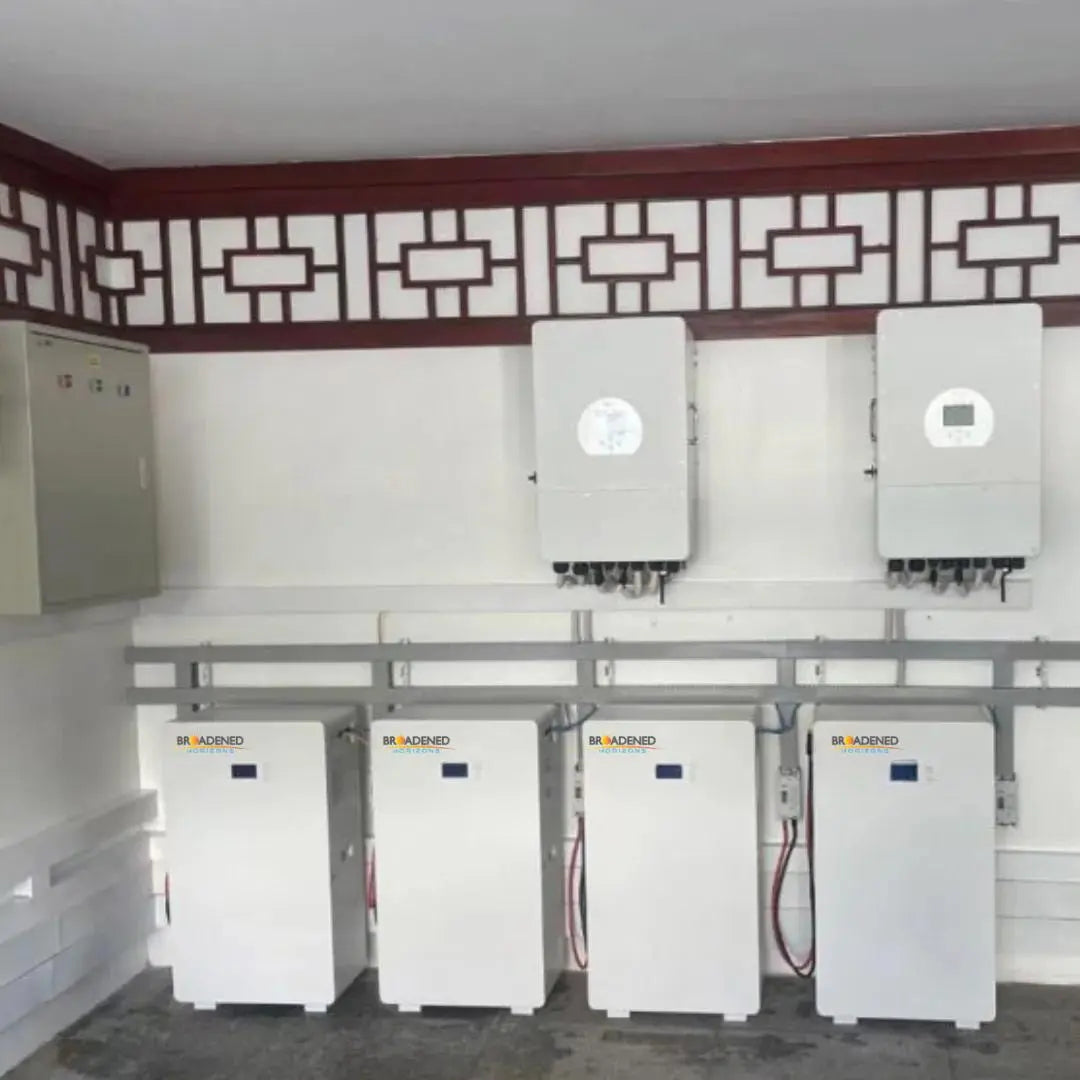

Space-Saving, Wall-Mount Design
Vertical, wall-mounted installation saves floor space and allows deployment in tight areas such as garages, utility rooms, or dedicated battery enclosures. -

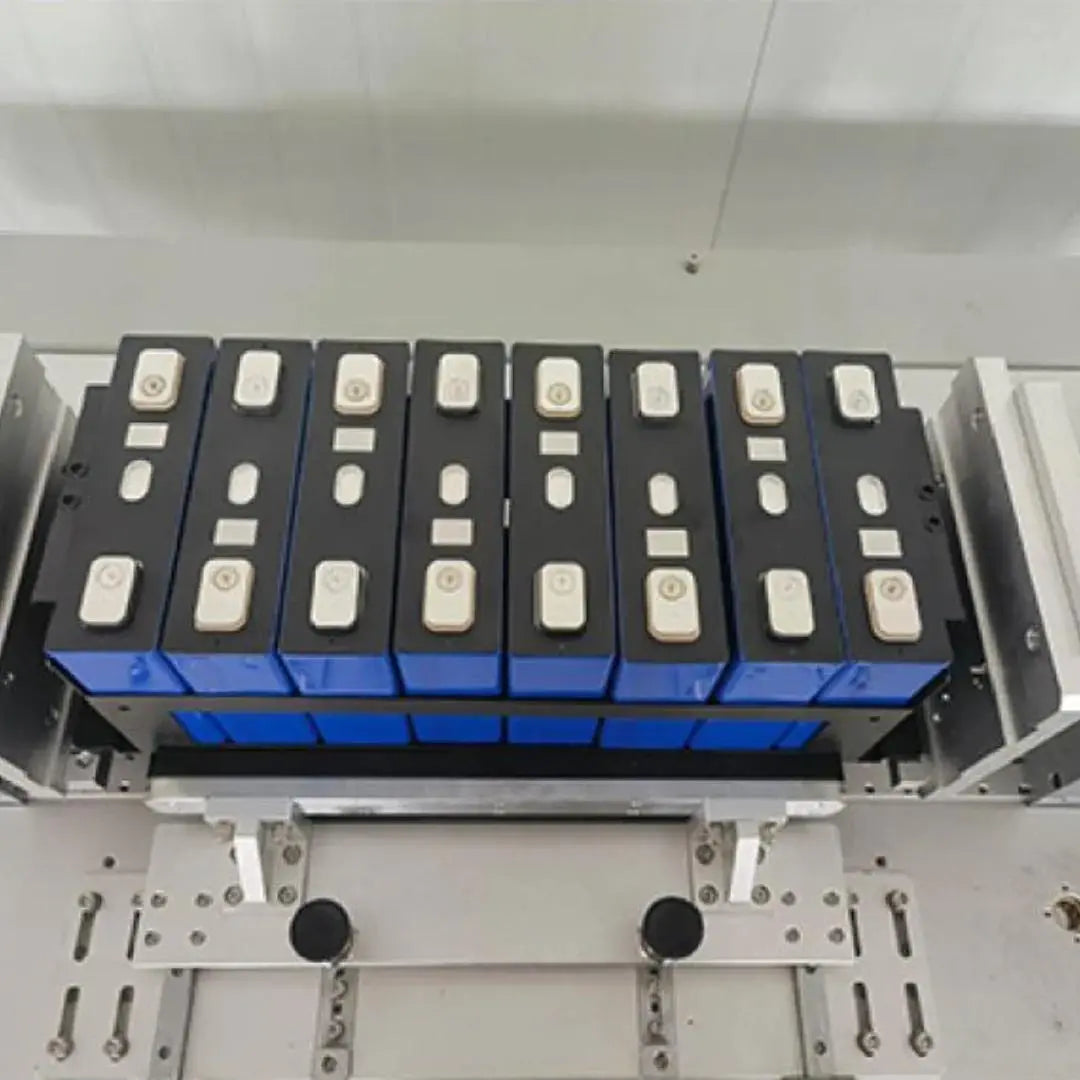

LiFePO₄ Chemistry
Offers long cycle life, high stability, and safer thermal characteristics compared to many lithium alternatives. -
High Capacity & Scalable Configuration
Suitable for configurations in the 10 kWh+ range (e.g. 200 Ah @ 48 V = 9.6 kWh nominal) and supports parallel expansion for larger energy storage needs. -
Robust Construction & Safety Features
-
Sturdy powder-coated steel housing (or equivalent)
-
Internal Battery Management System (BMS) handling overcharge, over-discharge, overcurrent, temperature protection
-
Safe operating voltage range, insulation, and fault protection
-
-
Wide Operating Conditions
Designed to operate reliably across common ambient conditions (within specified temperature/humidity ranges). -
Compatibility & Flexibility
Works with popular hybrid inverters, charge controllers, and microinverter systems that accept 48 V battery input.
Sample Specifications
Note: Adapt these values to your exact model’s datasheet:
| Parameter | Sample Value / Range |
|---|---|
| Nominal Voltage | 48 V DC (≈ 51.2 V nominal) |
| Capacity (Amp-hours) | e.g. 200 Ah |
| Nominal Energy | ~9.6 kWh |
| Max Charge / Discharge Current | e.g. 0.5 C or 100 A (depends on design) |
| Cycle Life | 3,000+ to 6,000+ cycles (depends on usage) |
| Operating Temperature | e.g. 0 °C to 45 °C for charging, –10 °C to 45 °C discharge |
| Storage Temperature | –20 °C to 45 °C |
| Dimensions | [to be filled from spec sheet] |
| Weight | [to be filled] |
| Mounting | Wall-mount brackets / hardware included |
| Communications / Interface | CAN / RS485 / BMS signals (optional) |
| Protection Features | Overcharge, over-discharge, over-current, short-circuit, temperature, cell balancing |
Document: Specification Sheet
