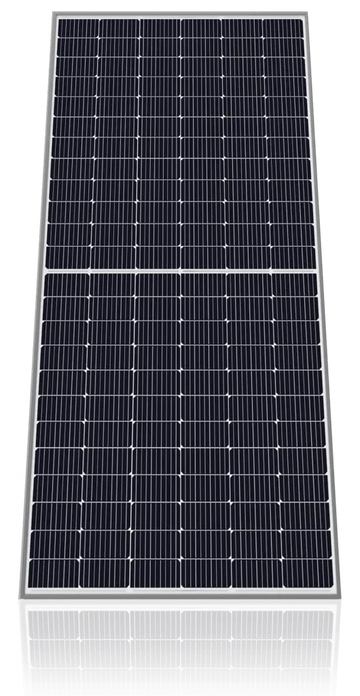

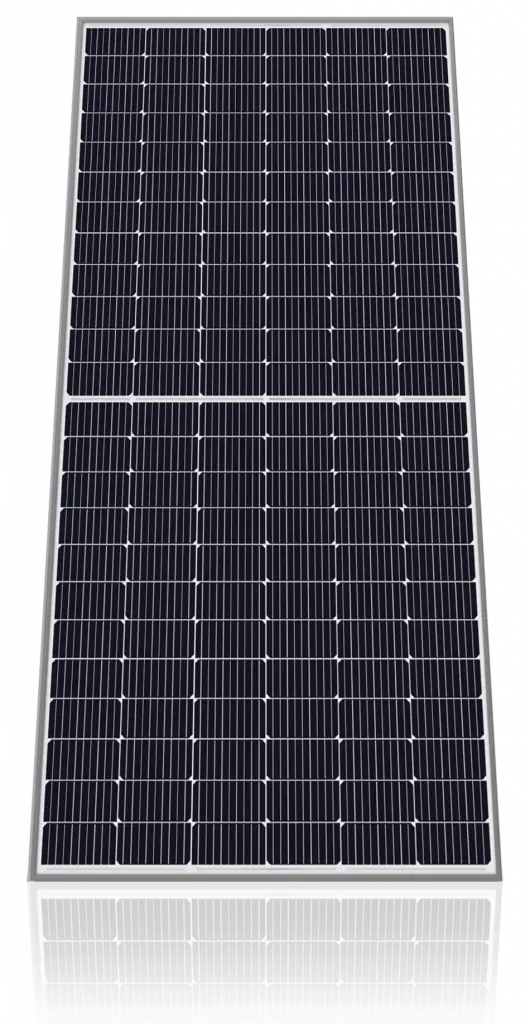

450W Heliene Bi-Facial Solar Panel
-
Estimated Delivery:Jul 26 - Jul 30
-
Free Shipping & Returns: On all orders under $50
450W Heliene Bi-Facial Solar Panel
Only 1 panel is Available!
The 450W Heliene Bi-Facial Solar Panel is a premium bifacial solar module featuring 144 half-cut M6 Monocrystalline PERC cells. Manufactured to international quality standards (ISO9001), this panel delivers exceptional performance and reliability for residential and commercial solar installations.
Key Features
- 20.4% Module Efficiency – Utilizes the latest M6 size super high efficiency Monocrystalline PERC cells. Half-cut design further reduces cell to module (CTM) losses.
- Bifacial Technology – Enables additional energy harvest from the rear side of the panel.
- Half-Cut Design with Split Junction Box Technology
- 1500V System Voltage Rating
- Stability & Looks – Rugged, double webbed frame design withstands wind, snow, and other mechanical stresses. Framed Glass–Backsheet aesthetic is ideal for high visibility installation.
- Anti-Reflective Glass – Premium solar glass with anti-reflective coating delivers more energy throughout the day.
- High Reliability – Proven resistance to PID and reliable in high temperature and humidity environments.
Electrical Data (STC)
| Parameter | Value |
|---|---|
| Peak Rated Power (Pmpp) | 450W |
| Maximum Power Voltage (Vmpp) | 42.16V |
| Maximum Power Current (Impp) | 10.68A |
| Open Circuit Voltage (Voc) | 50.03V |
| Short Circuit Current (Isc) | 11.29A |
| Module Efficiency | 20.4% |
| Maximum Series Fuse Rating | 20A |
| Power Output Tolerance | -3/+3% |
Mechanical Data
| Parameter | Value |
|---|---|
| Solar Cells | 144 Half-Cut, M6, 166mm, PERC Cells |
| Module Construction | Framed Glass–Backsheet |
| Dimensions (L x W x D) | 2108 x 1048 x 40 mm (82.99 x 41.25 x 1.6 inch) |
| Weight | 25 kg (55.12 lbs) |
| Frame | Double Webbed 15-Micron Anodized Aluminum Alloy |
| Glass | 3.2mm Low-Iron Content, High-Transmission, PV Solar Glass with Anti-Reflective Coating |
| Junction Box | IP-68 rated with 3 bypass diodes |
| Output Cables | 0.3-meter Symmetrical Cables |
| Connectors | MC4 Compatible |
Temperature Ratings
| Parameter | Value |
|---|---|
| Nominal Operating Cell Temperature (NOCT) | +45°C (±2°C) |
| Temperature Coefficient of Pmax | -0.39%/°C |
| Temperature Coefficient of Voc | -0.30%/°C |
| Temperature Coefficient of Isc | 0.037%/°C |
| Operational Temperature | -40°C to +85°C |
| Max System Voltage | 1500V |
Certifications
- UL61215, UL61730
- ISO9001
Warranty
- 15 Year Manufacturer's Workmanship Warranty
- 25 Year Linear Power Guarantee
Packaging
- Modules per box: 27 pieces
- Modules per 53' trailer: 702 pieces
Datasheet: Download PDF Datasheet
