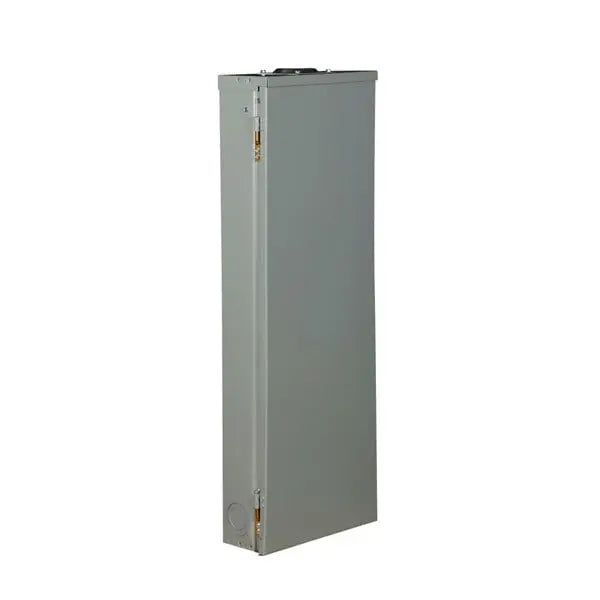

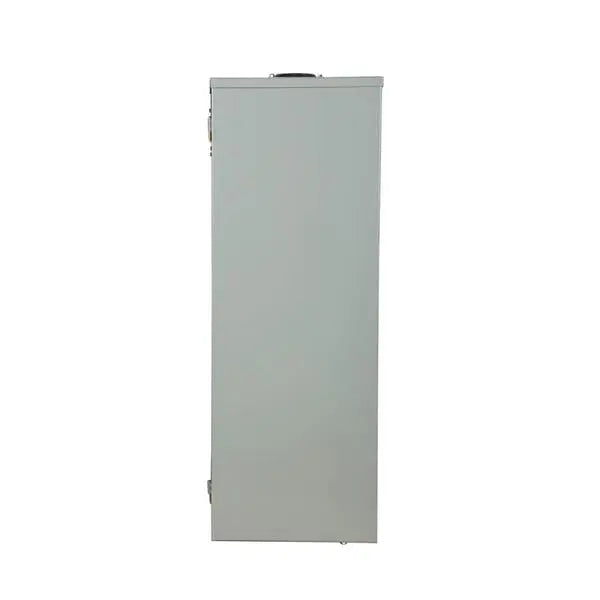

3BR4242L225R - Eaton BR Main Lug Loadcenter

The Eaton BR Main Lug Loadcenter is designed to provide reliable and safe electrical distribution for commercial and industrial applications. This loadcenter features a 225A rating and is configured as a main lug type, with no feed-thru lugs, making it ideal for situations where the main service is not being fed through the loadcenter. Constructed with a durable aluminum bus, the loadcenter includes a NEMA 3R-rated metallic enclosure, ensuring it is weather-resistant for outdoor installations. The unit is designed to accept Eaton BR 1-inch breakers, offering 42 circuits and 42 spaces, and is configured for a three-phase, four-wire system with a 208Y/120V configuration. With a 25 kAIC short-circuit rating, this loadcenter provides optimal protection for your electrical system.

Key Features:

• Product Type: Main Lug Loadcenter
• Amperage Rating: 225 A
• Main Configuration: Main Lug (no feed-thru lugs)
• Bus Material: Aluminum for efficient power distribution
• NEMA Rating: NEMA 3R – weather-resistant for outdoor use
• Enclosure Material: Metallic for durability
• Short-Circuit Rating: 25 kAIC (Maximum available short-circuit current)
• Breaker Compatibility: Designed for Eaton BR 1-inch breakers
• Circuit Configuration: 42 Circuits, 42 Spaces, Four-Wire, Three-Phase, 208Y/120V
• Application: Ideal for commercial and industrial electrical distribution
• Cover Included: Yes
• Mounting Type: Surface mount

The Eaton BR Main Lug Loadcenter offers a safe and efficient solution for electrical power distribution, providing flexibility and protection for your commercial or industrial electrical system. With a robust design and high short-circuit rating, it ensures reliable performance in demanding environments.

Documents:

Catalogs
Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1

Specifications and datasheets
Eaton Specification Sheet - 3BR4242L225R

Warranty guides
Eaton type BR circuit breaker limited warranty June 2024
