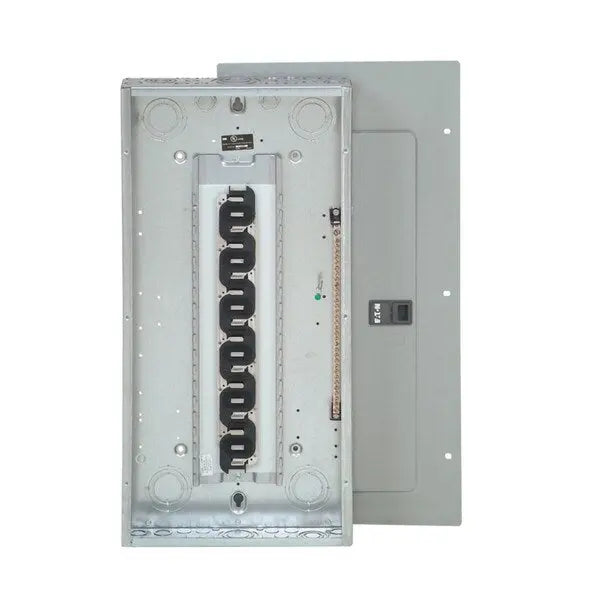

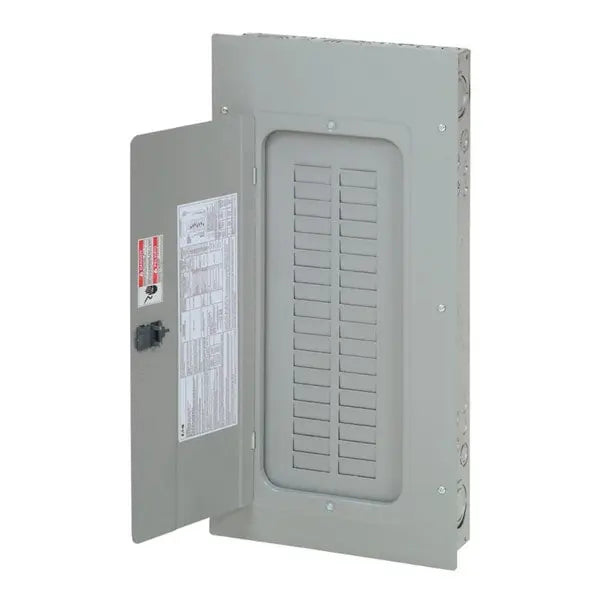

3BR3030N100 - Convertible Loadcenter

The Convertible Loadcenter is a reliable and flexible solution for managing power distribution in residential and light commercial settings. Designed to accommodate up to 30 spaces and 30 circuits, it delivers efficient performance and room for future system expansion. With a 100A capacity, it supports both 208Y/120 V and 240 V systems, making it a versatile option for various electrical installations.

Built with a metallic enclosure and featuring an aluminum bus, this loadcenter offers a durable and corrosion-resistant design. It supports wire sizes from 4 AWG to 1/0 AWG and is sized for convenient wall mounting. Its compact footprint—3.88 inches in overall length, 14.31 inches in width, and 29.13 inches in height—makes it ideal for applications where space is limited.

Key Features:

• Type: Convertible Loadcenter
  Amperage: 100 A
  Circuit Capacity: 30 Spaces, 30 Circuits
  Voltage Compatibility: 208Y/120 V; 240 V
  Wire Range: 4 to 1/0 AWG
  Material: Metallic Enclosure
  Bus Material: Aluminum
  Mounting: Wall Mount
  Dimensions: 3.88″ Length × 14.31″ Width × 29.13″ Height

This convertible loadcenter provides a durable, efficient, and scalable solution for modern electrical systems, offering ease of installation and long-term performance in a variety of environments.

Documents:

Catalogs
Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1

Specifications and datasheets
Eaton Specification Sheet - 3BR3030N100

Warranty guides
Eaton type BR circuit breaker limited warranty June 2024
