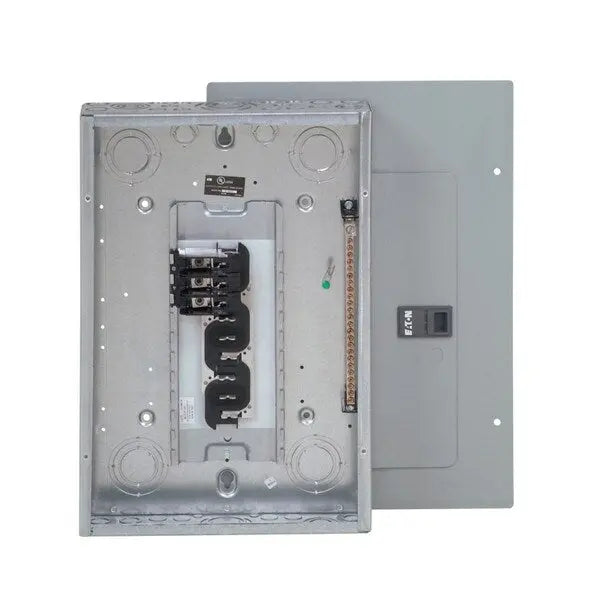

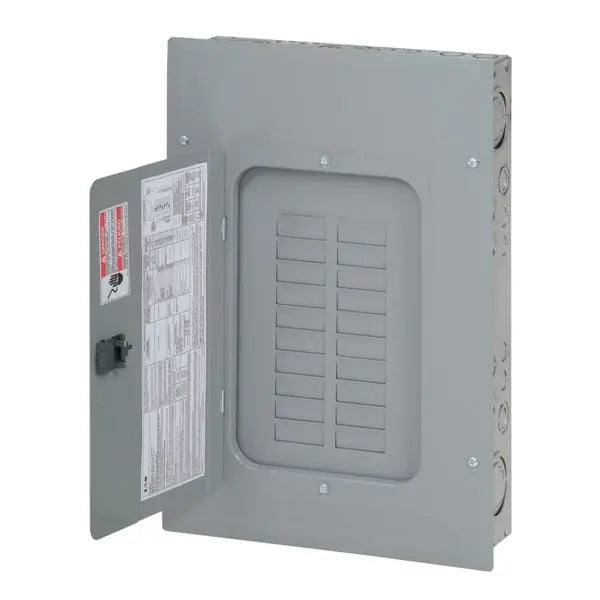

3BR1224L125 - Main Lug Load Center

The Main Lug Load Center is designed to provide reliable and efficient electrical distribution for residential, commercial, or light industrial applications. Featuring a 125A rating, this load center is suitable for 120/208/240V AC systems and supports up to 12 spaces and 24 circuits. The unit is constructed with a durable metallic enclosure and features an aluminum bus for optimal conductivity and performance. It is designed to accommodate wire sizes ranging from 6 AWG to 3/0 AWG, providing flexibility for various wiring needs. With a compact design, the load center offers a 53.34 cm overall length, a 36.35 cm overall width, and a 98.55 cm overall height, making it suitable for a variety of installation environments.

Key Features:

• Product Type: Main Lug Load Center
• Amperage Rating: 125 A
• Voltage Rating: 120/208/240 V AC
• Spaces & Circuits: 12 Spaces, 24 Circuits
• Wire Size Compatibility: 6-3/0 AWG
• Enclosure Material: Metallic for durability and long-lasting protection
• Bus Material: Aluminum for reliable conductivity
• Overall Dimensions: 53.34 cm (Length) x 36.35 cm (Width) x 98.55 cm (Height)
• Application: Suitable for residential, commercial, and light industrial electrical distribution
• Mounting Type: Surface-mounted

The Main Lug Load Center provides an efficient solution for power distribution, offering flexibility, reliability, and safety for various electrical systems. Its compact design and high current rating make it ideal for applications that require robust and secure electrical distribution.

Documents:

Catalogs
Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1

Specifications and datasheets
Eaton Specification Sheet - 3BR1224L125

Warranty guides
Eaton type BR circuit breaker limited warranty June 2024
