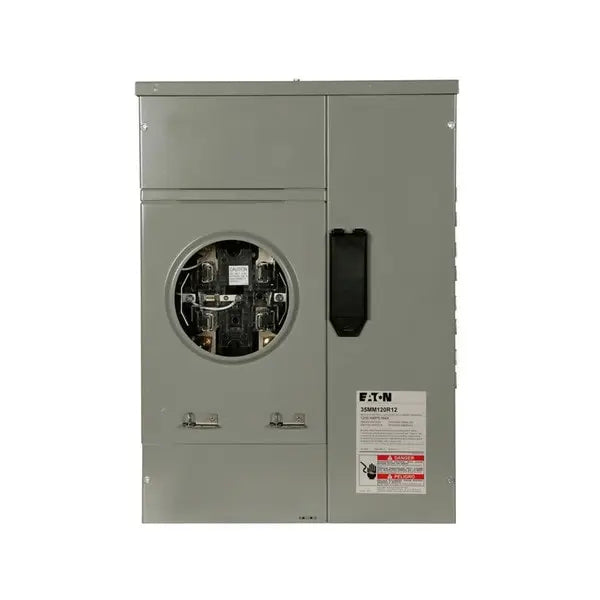

35MM120R12 - Eaton 35MM Commercial Meter Stack

The Eaton 35MM Commercial Meter Stack is a high-performance metering solution designed for multi-tenant commercial applications. Featuring a 200A plug-in socket and a 1200A aluminum bus, this unit supports 3-phase in and 1-phase out configurations, making it suitable for diverse electrical setups. The stack includes a 5-jaw, ringless socket and lever bypass for ease of maintenance and serviceability. Built with a NEMA 3R rated enclosure, it’s engineered for outdoor use, delivering weather-resistant durability. Compatibility with various main circuit breakers (EHD2_, CCV2_X, CCVH2_X, CVS2_XMM, CV2_XMM, CVH2_XMM) offers flexible system integration.

Key Features:

• Product Type: Commercial Meter Stack

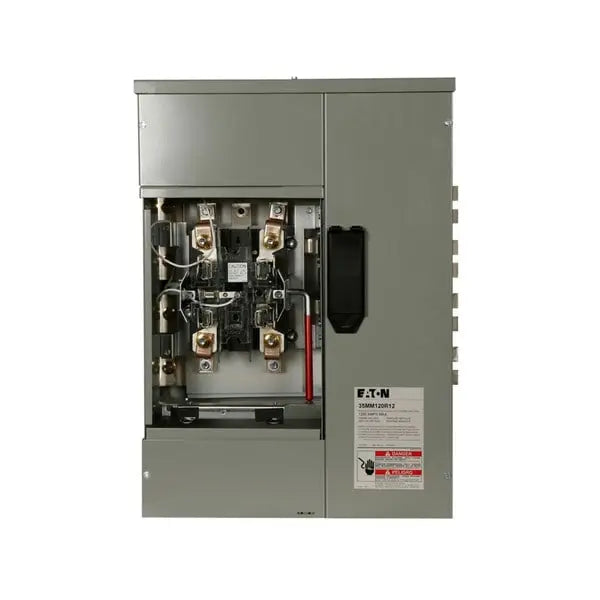

• Socket Type: Plug-In, Ringless with Lever Bypass
• Amperage Rating: 200A Socket
• Bus Rating: 1200A Aluminum
• Configuration: 3-Phase In / 1-Phase Out (A-B)
• Jaw Count: 5-Jaw Meter Socket
• Sockets: 1
• Enclosure Type: NEMA 3R for outdoor use
• Breaker Compatibility: EHD2_, CCV2_X, CCVH2_X, CVS2_XMM, CV2_XMM, CVH2_XMM
• Design: Modular, stackable metering for multi-tenant commercial buildings

This commercial meter stack is a robust, scalable solution for streamlined power distribution and metering, offering superior flexibility, reliability, and weather protection in commercial installations.

Documents:

Catalogs
Residential and Light Commercial, Metering Products, Volume 1 Tab 4

Specifications and datasheets
Eaton Specification Sheet - 35MM120R12
