225ASFBKIT - Eaton

The Eaton Panelboard Sub-Feed Breaker Kits are essential renewal components designed to enhance the flexibility and capacity of existing panelboard installations. These kits facilitate the addition of sub-feed breakers, allowing for efficient power distribution in various applications.

Key Features:

• Type: Sub-Feed Breaker Kit
• Compatibility: Designed for use with Eaton's PRL1A and PRL2A panelboard interiors
• Amperage Ratings: Available in 225A and 400A configurations
• Installation Position: Suitable for bottom or thru-feed end installations

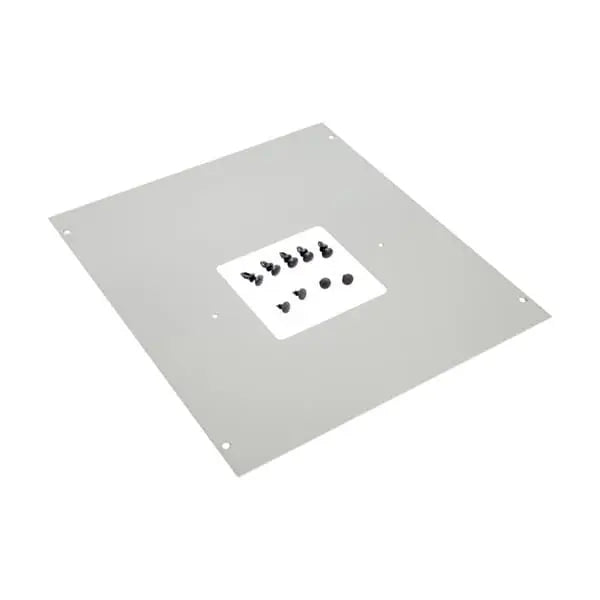

• Design: Replaces two solid covers on the panelboard's end to accommodate the sub-feed breaker
• Certifications: UL Listed
• Construction: Durable steel construction with a gray finish
• Dimensions: Approximately 10.4 inches (Length) x 10.8 inches (Width) x 0.1 inches (Height)
• Weight: Approximately 1.6 lbs
• Catalog Numbers: 225ASFBKIT (225A), 400ASFBKIT (400A)

These sub-feed breaker kits are ideal for expanding the capacity of existing panelboards, providing a reliable solution for applications requiring additional circuit protection.Their design ensures easy installation and integration into Eaton's PRL1A and PRL2A panelboard systems.
