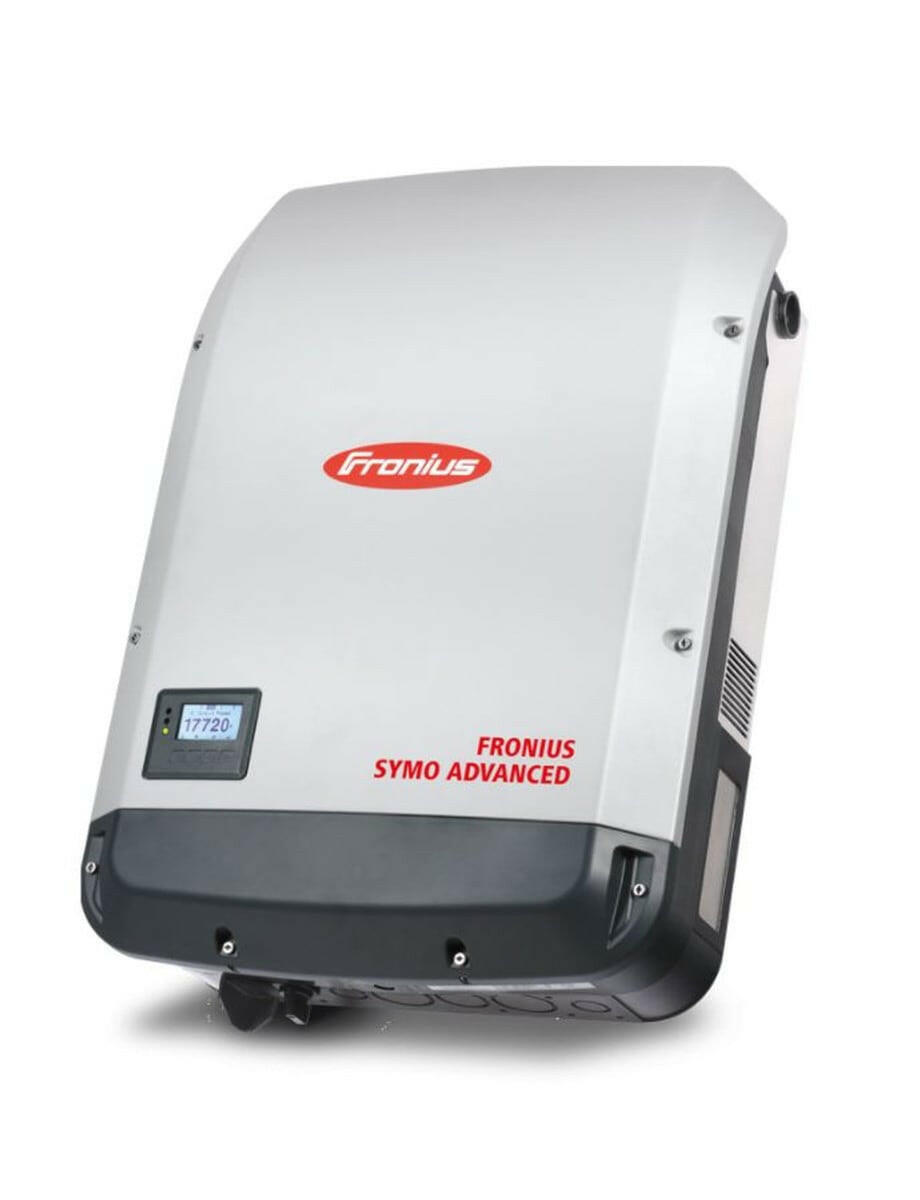

22.7kW Fronius Symo Advanced Lite 22.7-3 480V 3-Phase String Inverter
The Symo Advanced is the three-phase inverter for maximum safety, reliability & ROI. Featuring six models ranging from 10 kW to 24 kW, it is ideal for any commercial and industrial application. The Symo Advanced is lightweight and combines high-power density with flexibility to ensure the fastest possible installation for your PV project. The small number of total power conversion electronics adds to the high serviceability from any mounting spot. You get optimized system granularity with a low number of system components.
Features
- 3-Phase Transformerless
- Integrated 6-string Combiner-Dual MPPT
- NEC 2011, 2014 and 2017 ready
- SnapINverter Mounting System
- Advanced Grid Features
- 200VDC - 600VDC Input Range SunSpec Rapid Shutdown communication standard
-
Datamanager Card not included (In multi inverter systems, use only one Datamanager card, up to 99 Symo LITE units can attached daisy chained together for monitoring).
Specifications
- Type: Transformless Topology
- Height: 28.5 in
- Width: 20.1 in
- Depth: 8.9 in
- Altitude: 2000 m
- Input PV Power Rating: 18-29.5 kW
- Nominal Input Voltage: 710 V
- Phase: 3
- Number of MPPT: 2
- Output Power: 22,727 W
- Output Configuration: 480 V
- Frequency Rating: 60 Hz
-
Enclosure Rating/IP Rating: NEMA 4X
