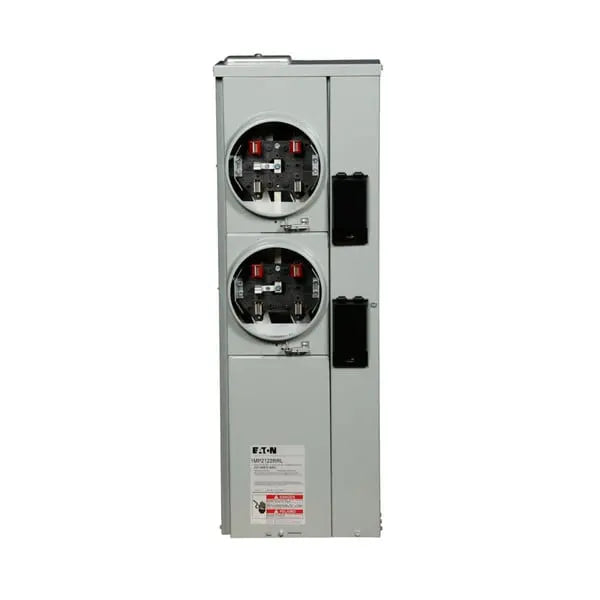

1MP2122RRL - Meter Stack

The Meter Stack is a compact and reliable electrical metering solution designed to manage power distribution and provide secure connections for residential or light commercial applications. With a 125A rating, this meter stack is built to handle 120/240V AC, single-phase systems. It features 2 poles, 5 jaws, and 2 sockets, ensuring ample capacity for accurate metering and efficient power distribution. Constructed from durable aluminum bus material, the stack is designed for longevity and optimal conductivity. With a Myer Hub hub connection, this unit is well-suited for secure and weather-resistant installations.

Key Features:

• Product Type: Meter Stack
• Amperage Rating: 125 A
• Voltage Rating: 120/240V AC
• Phase/Wire Configuration: Single-Phase
• Number of Poles: 2 Poles
• Bus Material: Aluminum (for enhanced conductivity)
• Number of Jaws: 5 Jaws for secure metering connections
• Number of Sockets: 2 Sockets
• Hub Type: Myer Hub Hub for secure and weather-resistant connection
• Dimensions:
• Height: 34.56 inches
• Length: 7.56 inches
• Width: 11.88 inches
• Weight: 34 lbs
• Application: Residential or light commercial power metering
• Certifications: UL Listed

The Meter Stack offers an efficient and durable solution for electrical metering, providing reliable performance and secure connections for residential or light commercial use.

Documents:

Catalogs
Residential and Light Commercial, Metering Products, Volume 1 Tab 4

Specifications and datasheets
Eaton Specification Sheet - 1MP2122RRL
