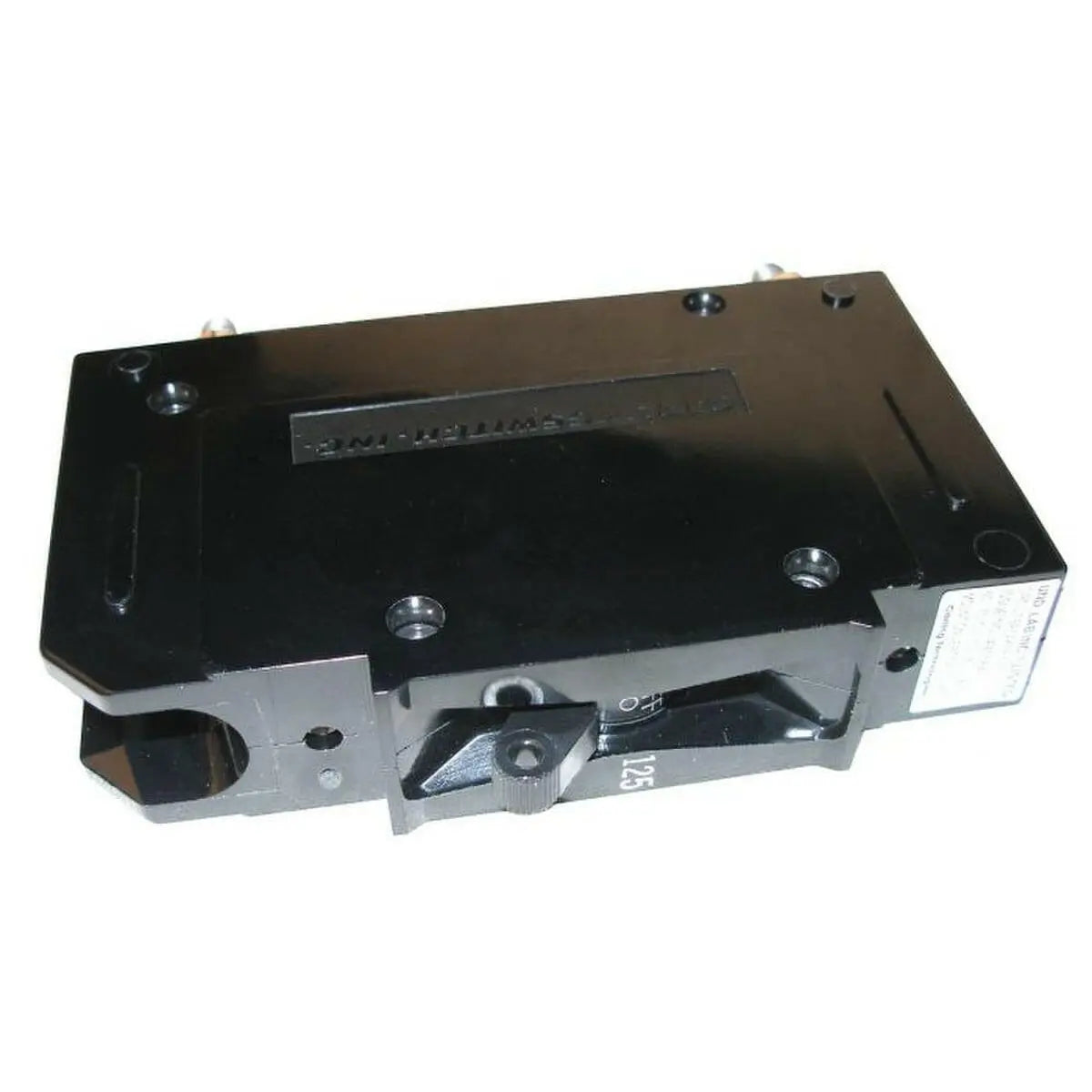

125A/125VDC Remote Trip Breaker

MidNite's breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Always use a properly sized breaker for disconnecting. This breaker has the Remote Trip feature that allows it to work with our Battery Disconnect Module ( MNBDM-24 or MNBDM-48 ) and the Rapid Shutdown System. MidNite's breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Always use a properly sized breaker for disconnecting. These are single-pole panel-mount breakers with stud terminals that require ring terminals on the wires connected to them (except the two items with lugs). Breakers up through 80 A can be used in the Conext XW+ Distribution Panel. The 100 A and larger DC breakers fit in the OutBack Power FLEXware enclosures and MidNite E-Panels. Rated for 125 VDC only (except the 60 A lug breaker, which is rated at 160 VDC). MidNite breaker models ending in "RT" are remote trip breakers that can be used with the MNBDM for rapid shutdown.

Features

• Non polarized
• Highlights - easy installation and high compatibility


Specifications

• Voltage Rating: 125 VDC
  Maximum Voltage Rating: 150 V
  Trip Amperage: 156 A
  Time Delay: 14 (Medium)
  VCoil Rating: 24 VDC
  Trip Voltage: 19 VDC
  Current Rating: 125 A
  Mounting Type: Panel
  Terminals: 1/4 in Stud
  Suitable For Use With: Midnite Battery Disconnect Module & the Rapid Shutdown
  Includes: (2) 6-32 x 5/16 in Pan Head Phillips Mounting Screws
  Enclosure Rating: Type 1
  Standards: UL Listed, ETL Listed, CE Certified, FCC Certified
  Warranty: 5 Years
  Dimensions: 1 in Width
  Weight: 2 lb
