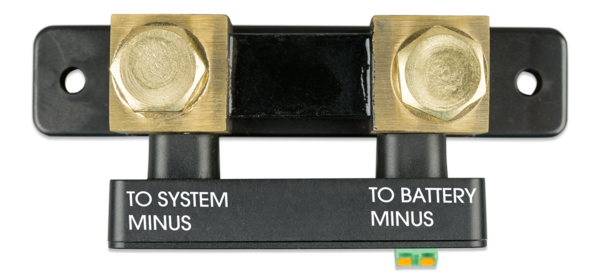

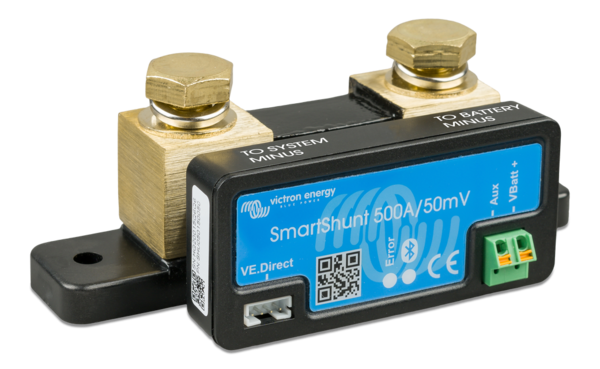

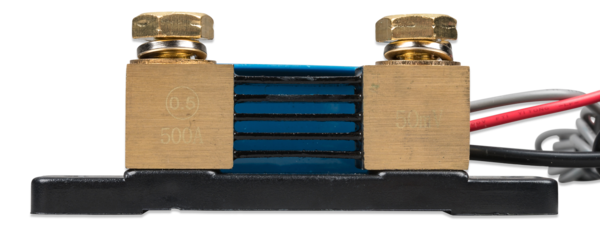

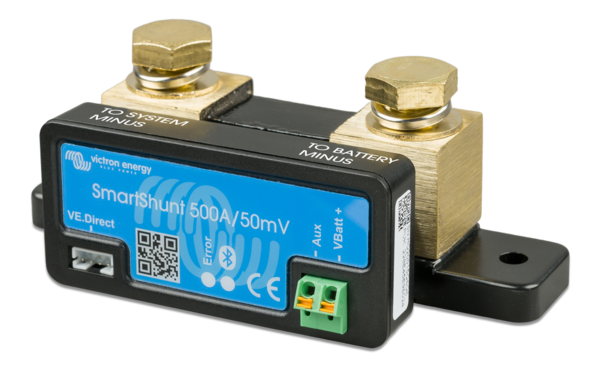

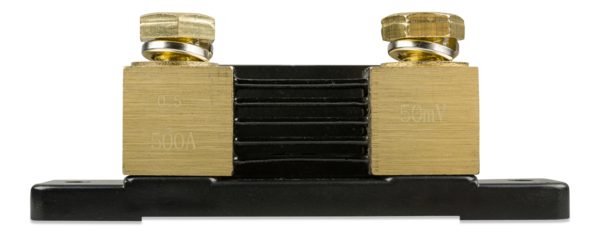

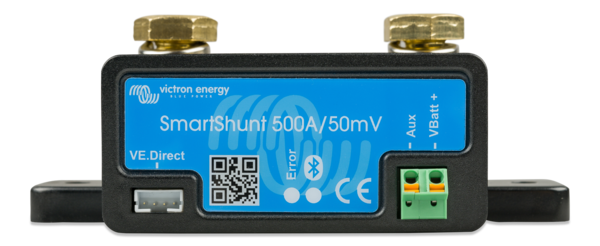

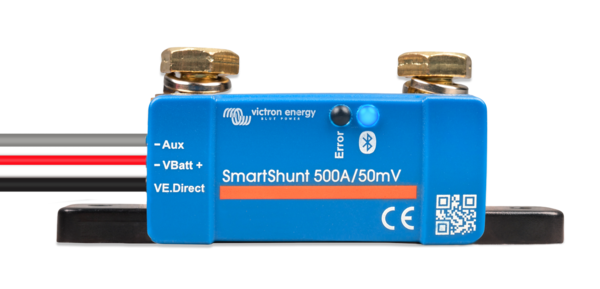

Victron SmartShunt 500A/50mV (SKU Part Number SHU050150050)

The SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more. Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable. The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted. The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.

Specifications:

Supply Voltage Range: 6.5-70 VDC
Current Rating: 500 A
Current Draw: <1mA
Battery Capacity (Ah): 1-9999 Ah
Operating Temperature: -40 to 50 deg C
Temperature Measurement Range: -20 to 50 deg C
VE.Direct Communication Port: Yes
Shunt Connection Bolts: M10 (0.3937 in)
Protection Category: IP55
Dimensions: 46 mm Height x 120 mm Width x 54 mm Depth
Standards: Safety - EN 60335-1, Emission/Immunity - EN-IEC 61000-6-1 EN-IEC 61000-6-2, EN-IEC 61000-6-3, Automotive Directive - EN 50498
