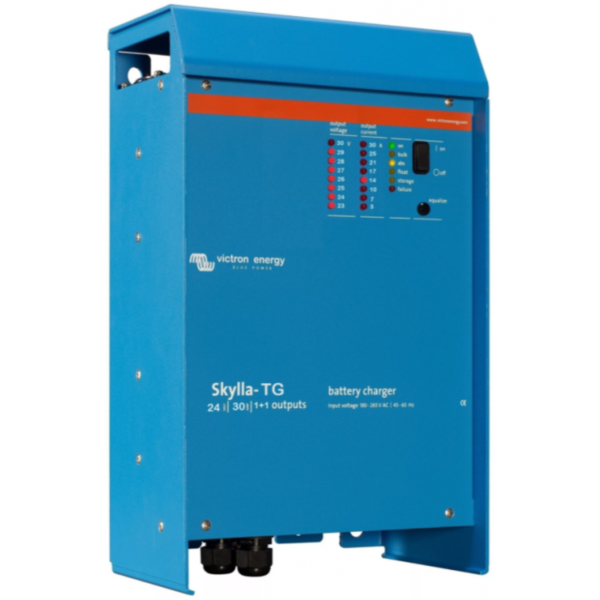

Victron Skylla TG Battery Charger (1+1) 24V -30A (SKU Part Number SDTG2400303)

One full rated output and one 4 Amp output. Charge voltage can be precisely adjusted to suit any battery system. The input for the charger is 230V at 50/60HZ. Charge voltage can be measured directly on the battery terminals in order to compensate for voltage loss due to cable resistance. An external sensor allows measuring battery temperature and compensating charge voltage accordingly.

Feature Bullets

• Perfect chargers for any type of battery - Charge voltage can be precisely adjusted to suit any sealed or unsealed battery system
• In particular, sealed maintenance free batteries must be charged correctly in order to ensure a long service life
• Overvoltage will result in excessive gassing and venting of a sealed battery. The battery will dry out and fail
• Suitable for AC and DC supply (AC-DC and DC-DC operation) - Except for the 3-phase input models, the chargers also accept a DC supply
• Controlled charging - Every TG Charger has a microprocessor, which accurately controls the charging in three steps
• The charging process takes place in accordance with the IUoUo characteristic and charges more rapidly than other processes
• Use of TG Chargers as a power supply- As a result of the perfectly stabilized output voltage, a TG Charger can be used as a power supply if batteries or large buffer capacitors are not available
• Two outputs to charge 2 battery banks (24V models only) - The TG Chargers feature 2 isolated outputs. The second output, limited to approximately 4A and with a slightly lower output voltage, is intended to top up a starter battery
• To increase battery life: temperature compensation - Every Skylla TG Charger comes with a battery temperature sensor. When connected, charge voltage will automatically decrease with increasing battery temperature. This feature is especially recommended for sealed batteries which otherwise might be overcharged and dry out due to venting
• Battery voltage sense - In order to compensate for voltage loss due to cable resistance, TG Chargers are provided with a voltage sense facility so that the battery always receives the correct charge voltage

Specifications:

Input Voltage: 120/230 V
Input Voltage Range VAC: 95-264 V
Input Voltage Range VDC: 120-400 V
Frequency Rating: 45-65 Hz
Power Factor: 1
Charge Voltage Absorption (VDC): 28.5 V
Charge Voltage Float (VDC): 26.5 V
Charge Current House Battery (A) (2): 50 A
Charge Current House Battery at 110 V (A) (3): 30 A
Charge Current Starter Battery (A): 4 A
Charge Characteristic: IUoUo (Three Step)
Battery Capacity (Ah): 150-500 Ah
Temperature Sensor: Yes
Can be Used as Power Supply: Yes
Remote Alarm: Potential Free Contacts 60 V/1 A ( (1) NO & (1) NC)
Forced Cooling: Yes
Protection (1): a, b, c, d
Operating Temperature: -40 to 50 deg C
Humidity: Maximum 95% (Non-Condensing)
Material: Aluminum
Color: Blue
Battery Connection: M8 Bolts
230 VAC Connection: Screw-Clamp 2.5 mm2
Enclosure Rating: IP21
Standards: Safety EN 60335-1, EN 60335-2-29, Emission EN 55014-1, EN 61000-3-2, Immunity EN 55014-2, EN 61000-3-3
Dimensions: 14.4 in x 9.9 in x 5.8 in
Weight: 12.1 lb
