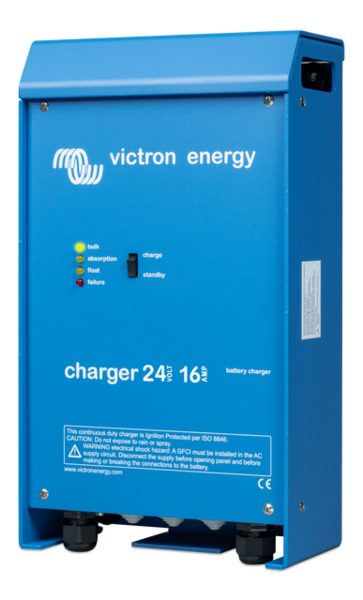

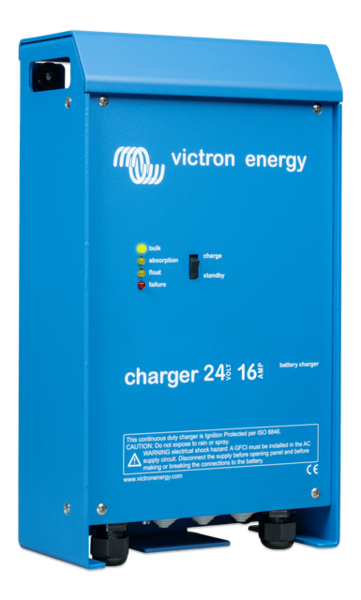

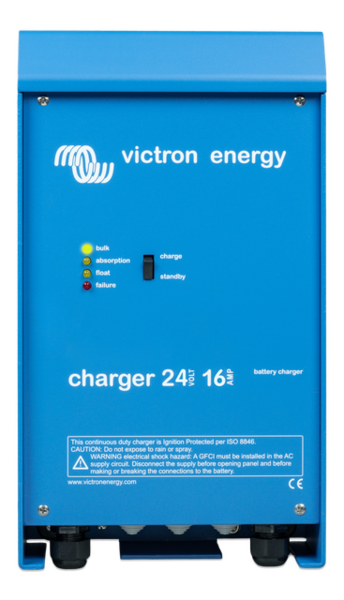

Victron Phoenix Charger 24V-16A (SKU Part Number PCH024016001)

Adaptive 4-stage charge characteristic: bulk - absorption - float - storage. Two full rated outputs and one 4 Amp output. Universal input 90-265V, 50/60Hz. The Charger features a microprocessor controlled adaptive battery management system that can be pre-set to suit different types of batteries. The adaptive feature will automatically optimize the charge process relative to the way the battery is being used.

Feature Bullets

• Adaptive 4-stage charge characteristic: bulk - absorption - float - storage - The Phoenix Charger features a microprocessor controlled 'adaptive' battery management system that can be preset to suit different types of batteries
• The 'adaptive' feature will automatically optimize the process relative to the way the battery is being used
• The right amount of charge: variable absorption time - When only shallow discharges occur (a yacht connected to shore power for example) the absorption time is kept short in order to prevent overcharging of the battery
• After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged
• Preventing damage due to excessive gassing: the BatterySafe mode (see fig. 2 below) - If, in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the Phoenix Charger will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached
• Less maintenance and aging when the battery is not in use
• To increase battery life - temperature compensation
• Battery voltage sense

Specifications:

Input Voltage Range VAC: 90-265 VAC
Input Voltage Range VDC: 90-400 VDC
Frequency Rating: 45-65 Hz
Power Factor: 1
Charge Voltage Absorption (VDC): 28.8 VDC
Charge Voltage Float (VDC): 27.6 VDC
Charge Voltage Storage (VDC): 26.4 VDC
Charge Current Rating (A) (2): 16 A
Charge Current Starter Battery (A): 4 A
Charge Characteristic: 4 Stage Adaptive
Battery Capacity (Ah): 100-200 Ah
Temperature Sensor: Yes
Can be Used as Power Supply: Yes
Forced Cooling: Yes
Protection: a, b, c, d
Operating Temperature: -20 to 60 deg C
Humidity: Maximum 95% (Non-Condensing)
Material: Aluminum
Color: Blue

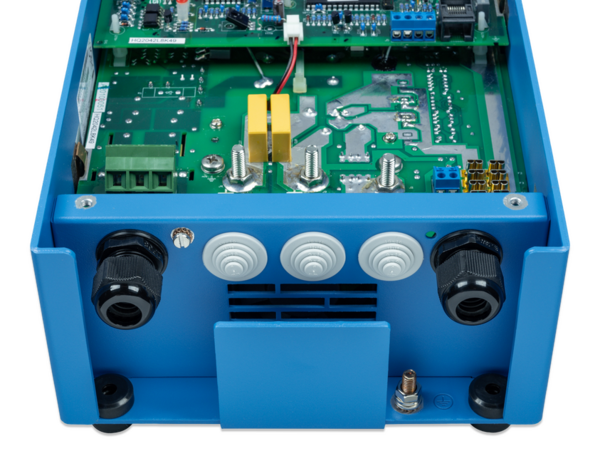

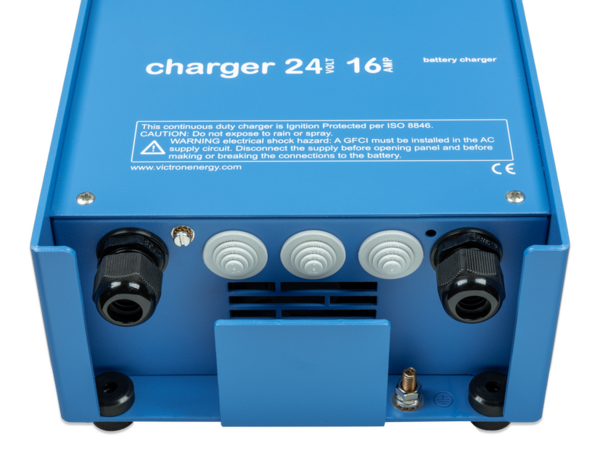

Battery Connection: M6 Bolts
AC Connection: Screw-Clamp 4 mm2
Enclosure Rating: IP21
Standards: EN 60335-1, EN 60335-2-29, EN 55014-1, EN 61000-3-2, EN 55014-2, EN 61000-3-3, IEC68-2-6:10-150Hz/1.0G
Dimensions: 13.8 in x 7.9 in x 4.3 in
Weight: 8 lb
