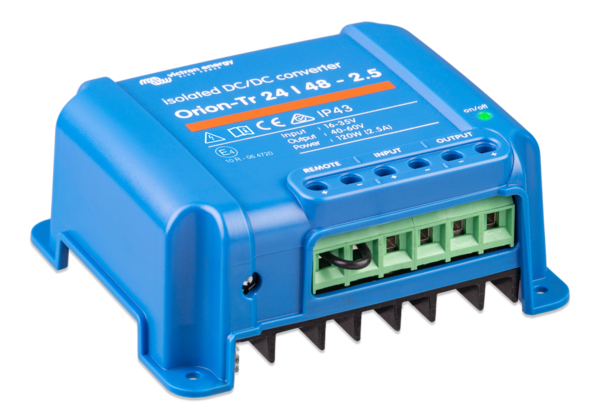

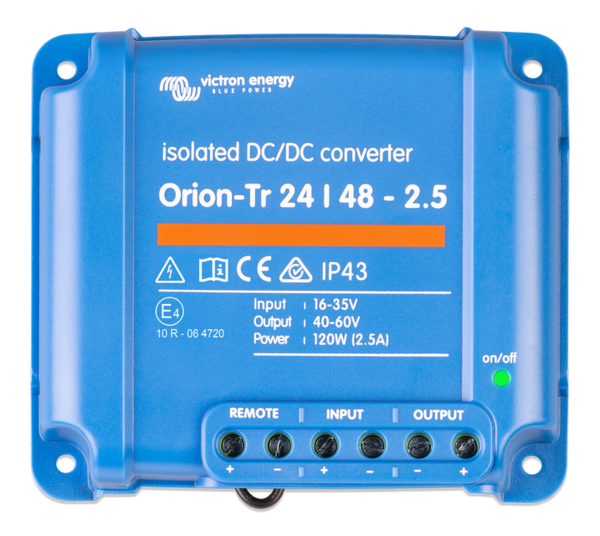

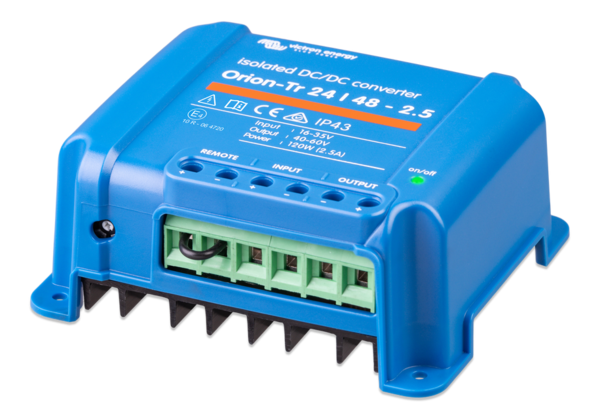

Victron Orion-Tr 24V to 48V - 120W 2.5A Isolated DC/DC Converter (SKU Part Number ORI244810110)

The remote on/off eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or by for example the engine run/stop switch (see manual). All models are short circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel.

Feature Bullets

• IP43 protection
• When installed with the screw terminals oriented downwards
• Screw terminals
• No special tools needed for installation
• Input fuse - On 12V and 24V input models only

Specifications:

Type: Isolated
Input Voltage Range: 16-35 V
Under Voltage Shutdown: 14 V
Under Voltage Restart: 15 V
Output Voltage Adjust Range: 40-60 V
Nominal Output Voltage: 48.2 V
Output Voltage Tolerance: +/-0.2 V
Output Noise: 2 mV rms
Continuous Output Current at Nominal Output Voltage & 25 deg C: 2.5 A
Maximum Output Current (10 s) at Nominal Output Voltage: 3 A
Short-Circuit Output Current: 19 A
Continuous Output Power at 25 deg C: 120 W
Continuous Output Power at 40 deg C: 115 W
Efficiency: 88%
No Load Input Current (2): <120 mA
Current Consumption: <200 uA When Disabled Via its Remote Port
Galvanic Isolation: 200 VDC Between Input, Output & Case
Operating Temperature: -20 to 55 deg C
Humidity: Maximum 95% Non-Condensing
DC Connection: Screw Terminals
Maximum Cable Cross-Section: 6 mm2 10 AWG
Standards: EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-5
Dimensions: 4 in x 4.5 in x 1.9 in
Weight: 1 lb
