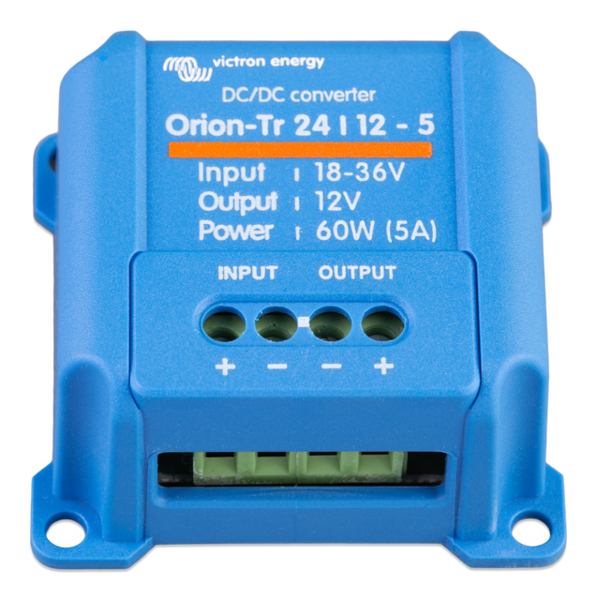

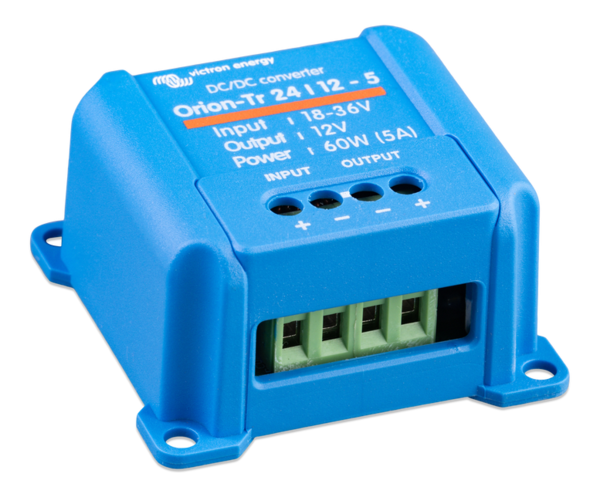

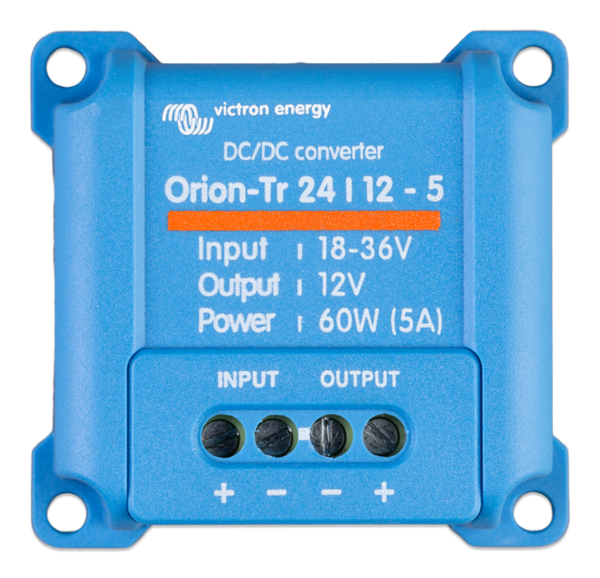

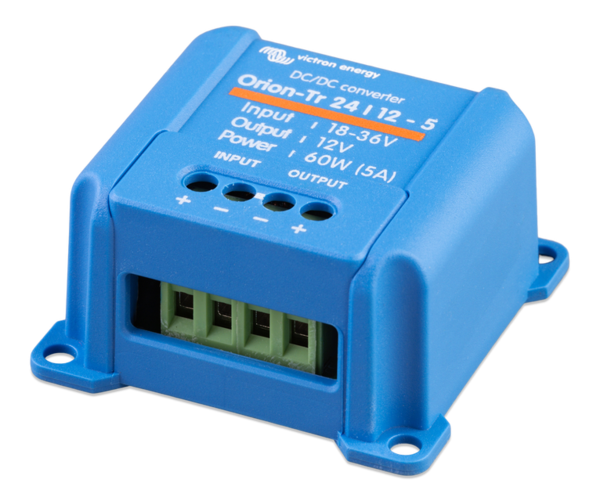

Victron Orion-Tr 24V to 12V - 60W 5A Non Isolated DC/DC Converter (SKU Part Number ORI241205200R)

Feature Bullets

• High efficiency - Using synchronous rectification, full load efficiency exceeds 95%
• IP43 protection - When installed with the screw terminals oriented downwards
• Screw terminals - No special tools needed for installation

Specifications:

Type: Non-Isolated
Input Voltage Range: 18-35 V
Output Voltage: 12.7 V
Continuous Output Current: 5 A
Galvanic Isolation: No
Off Load Current: <20 mA
Operating Temperature (Derate 3% Per deg C Above 40 deg C): -20 to 55 deg C
DC Connection: Screw Terminals
Maximum Cable Cross-Section: 3.3 mm2 12 AWG
Standards: EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-5
Dimensions: 2.1 in x 2 in x 1.1 in
Weight: 0.2 lb
