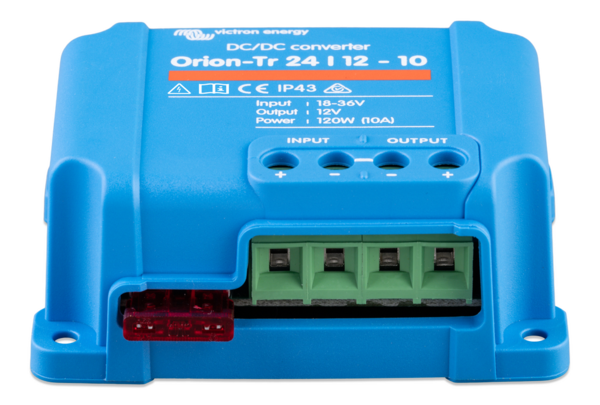

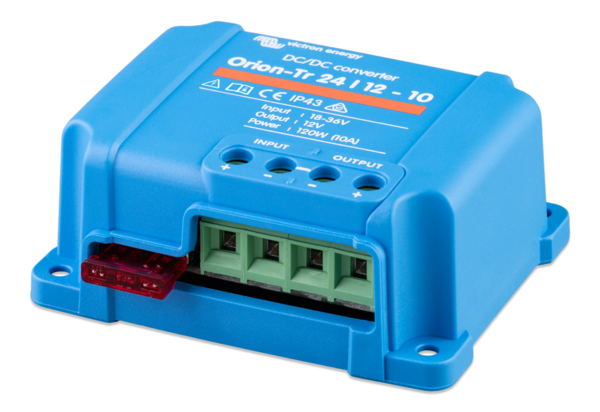

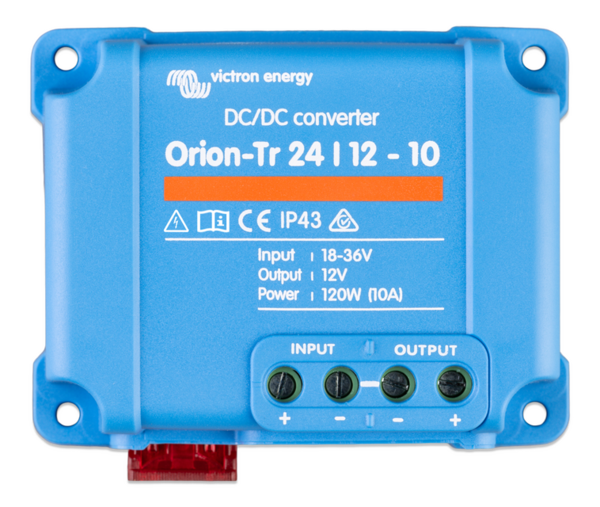

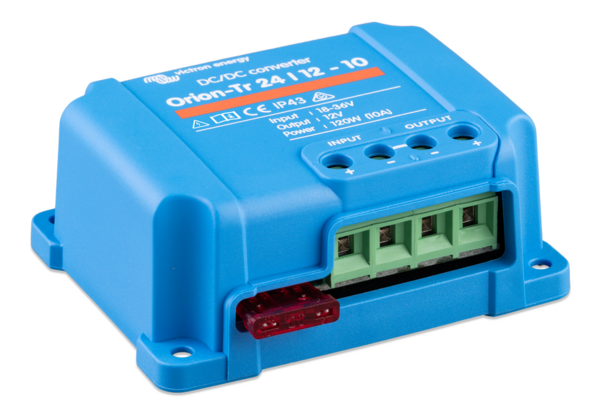

Victron Orion-Tr 24V to 12V - 120W 10A Non Isolated DC/DC Converter (SKU Part Number ORI241210200R)

Feature Bullets

• High efficiency - Using synchronous rectification, full load efficiency exceeds 95%
• IP43 protection - When installed with the screw terminals oriented downwards
• Screw terminals - No special tools needed for installation

Specifications:

Type: Non-Isolated
Input Voltage Range: 18-35 V
Output Voltage: 12.5 V
Continuous Output Current: 10 A
Maximum Output Current: 12 A
Galvanic Isolation: No
Off Load Current: <45 mA
Operating Temperature (Derate 3% Per deg C Above 40 deg C): -20 to 55 deg C
DC Connection: Screw Terminals
Maximum Cable Cross-Section: 6 mm2 10 AWG
Standards: EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-4
Dimensions: 2.9 in x 3.7 in x 1.5 in
Weight: 0.44 lb
