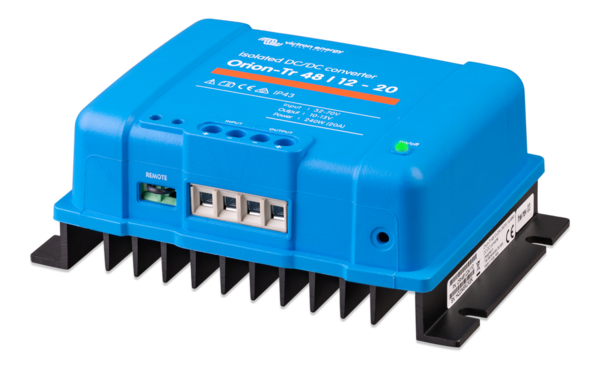

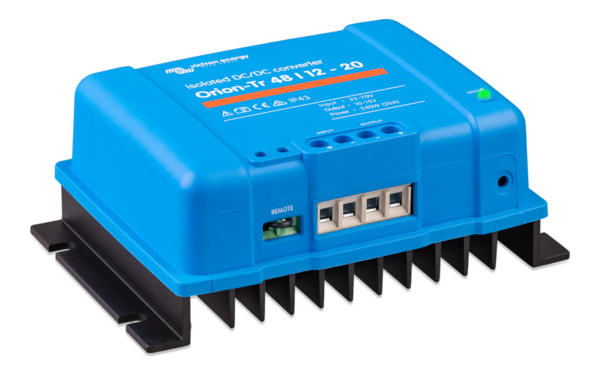

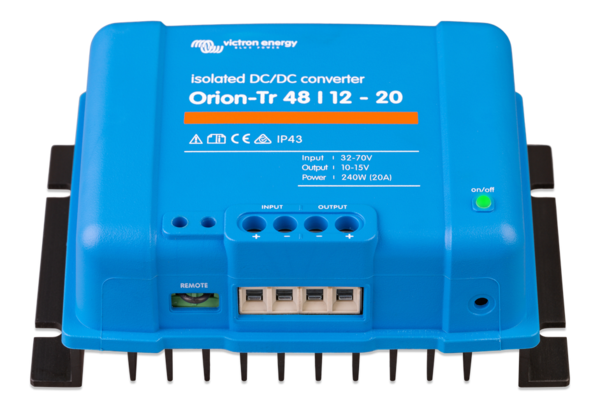

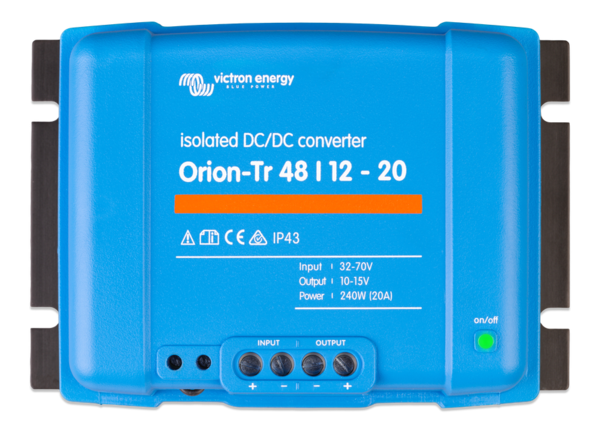

Victron Orion 48V to 12V - 240W 20A Isolated DC/DC Converter (SKU Part Number ORI481224110)

The remote on/off eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or by for example the engine run/stop switch (see manual). All models are short circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel.

Feature Bullets

• IP43 protection
• When installed with the screw terminals oriented downwards
• Screw terminals
• No special tools needed for installation
• Input fuse - On 12V and 24V input models only

Specifications:

Type: Isolated
Input Voltage Range: 32-70 V
Under Voltage Shutdown: 28 V
Under Voltage Restart: 30 V
Output Voltage Adjust Range: 10-15 V
Nominal Output Voltage: 12.2 V
Output Voltage Tolerance: +/-0.2 V
Output Noise: 2 mV rms
Continuous Output Current at Nominal Output Voltage & 40 deg C: 20 A
Maximum Output Current (10 s) at Nominal Output Voltage: 25 A
Short-Circuit Output Current: 50 A
Continuous Output Power at 25 deg C: 280 W
Continuous Output Power at 40 deg C: 240 W
Efficiency: 87%
No Load Input Current (2): <80 mA
Current Consumption: <200 uA When Disabled Via its Remote Port
Galvanic Isolation: 200 VDC Between Input, Output & Case
Operating Temperature: -20 to 55 deg C
Humidity: Maximum 95% Non-Condensing
DC Connection: Screw Terminals
Maximum Cable Cross-Section: 16 mm2 6 AWG
Standards: EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-5

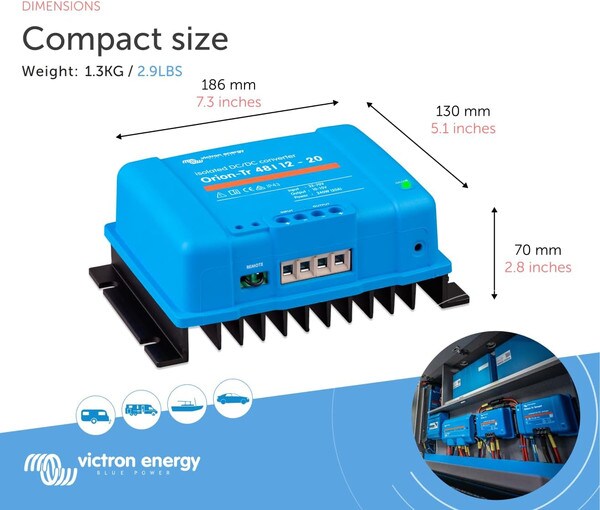

Dimensions: 5.1 in x 7.3 in x 2.8 in
Weight: 4 lb
