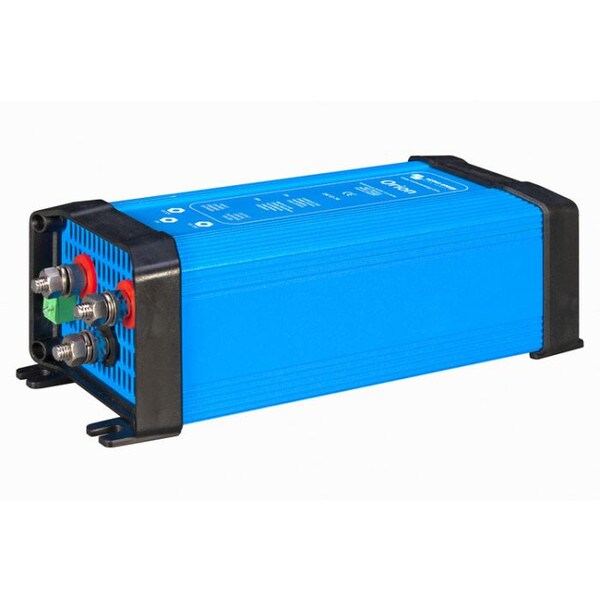

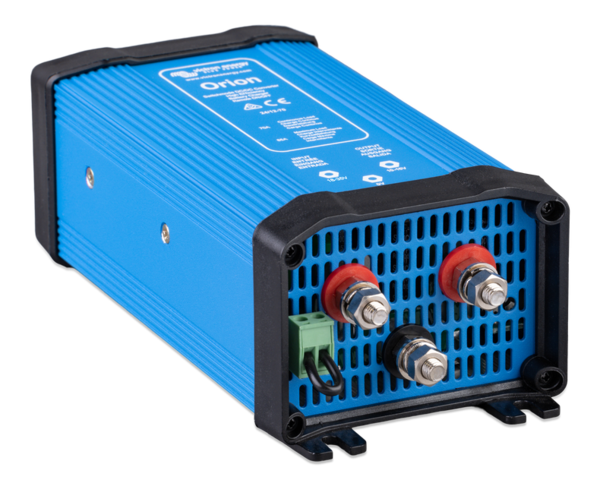

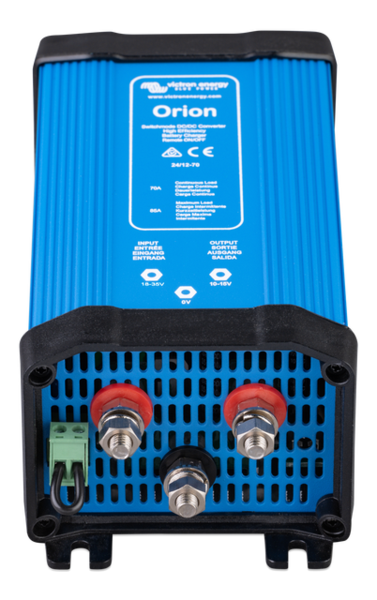

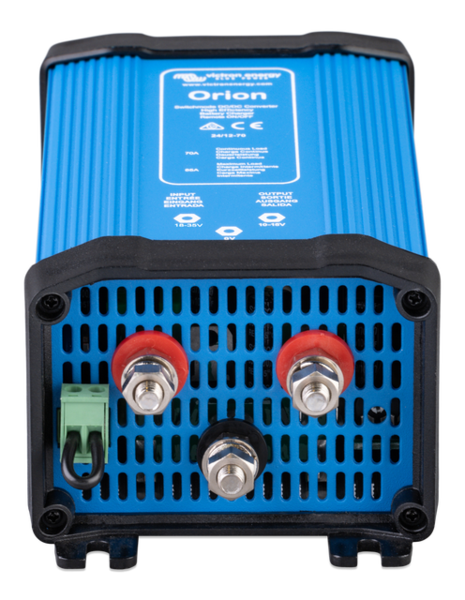

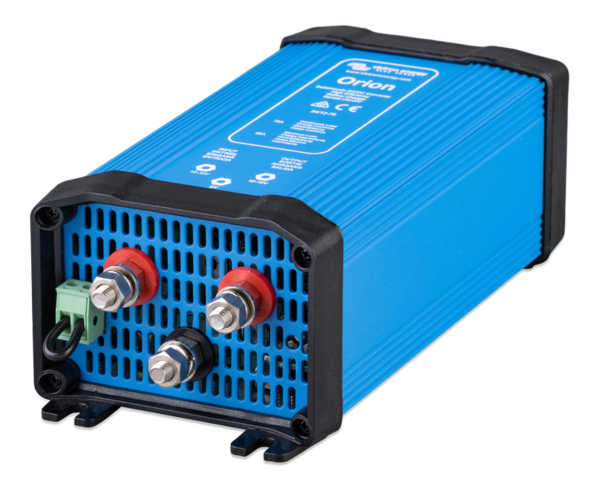

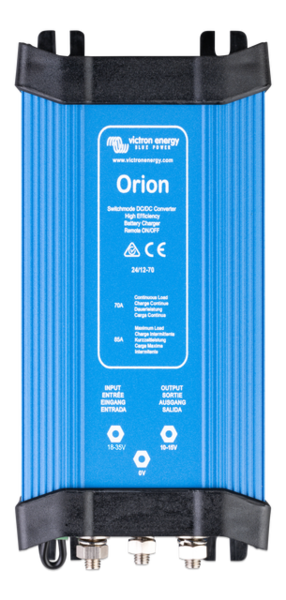

Victron Orion 24V to 12V - 840W 70A Non Isolated DC/DC Converter (SKU Part Number ORI241270020)

The remote on/off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual). All models with adjustable output can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system. All models with adjustable output can be paralleled to increase output current Up to five units can be connected in parallel.

Specifications:

Type: Non-Isolated
Input Voltage Range: 18-35 V
Under Voltage Shutdown: 14 V
Under Voltage Restart: 18 V
Output Voltage Adjustable with Potentiometer: Yes
Output Voltage: Adjustable 10-15 V F Set 13, 2 V
Suitable to Buffer-Charge a Battery: Yes
Can be Connected in Parallel: Yes
Continuous Output Current: 70 A
Maximum Output Current: 85 A
Efficiency: 92%
Fan Assisted Cooling (Temperature Controlled): Yes
Galvanic Isolation: No
Off Load Current: <20 mA
Remote On/Off: Yes
Operating Temperature (Derate 3% Per deg C Above 40 deg C): -20 to 55 deg C
DC Connection: M6 Bolt
Standards: EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-4
Dimensions: 2.6 in x 3.5 in x 7.7 in
Weight: 2 lb
