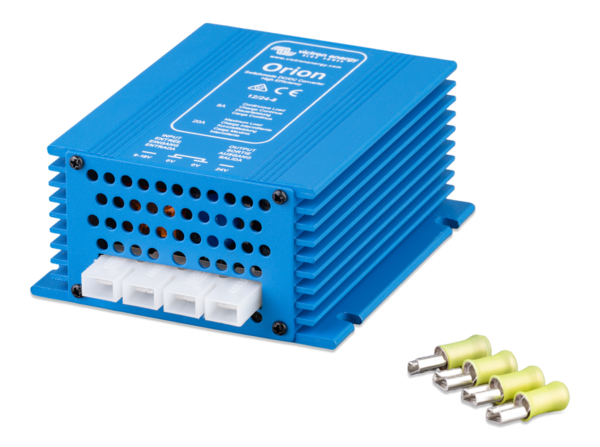

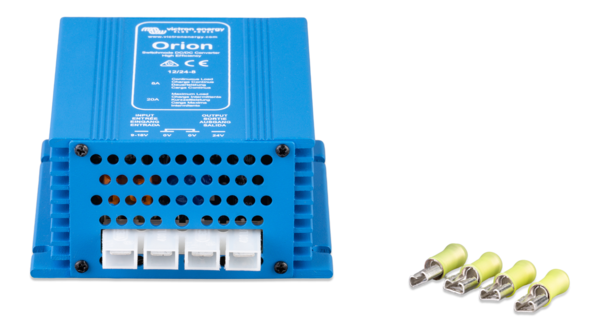

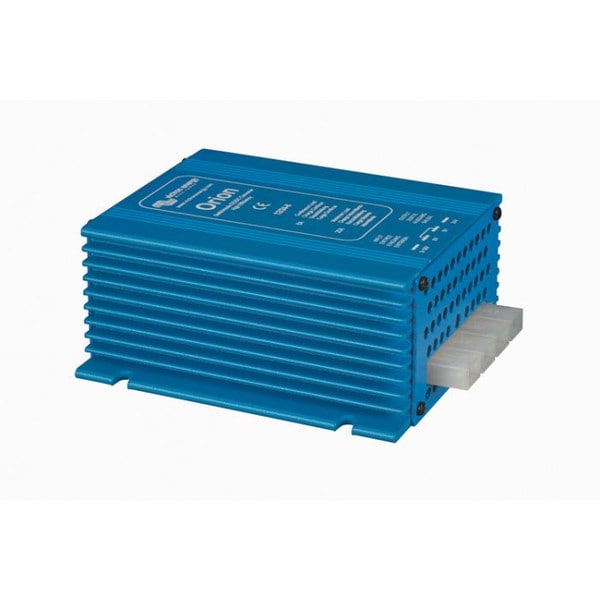

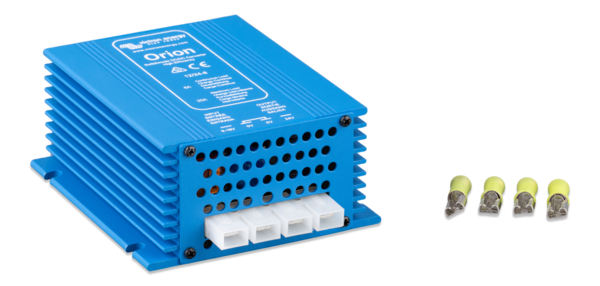

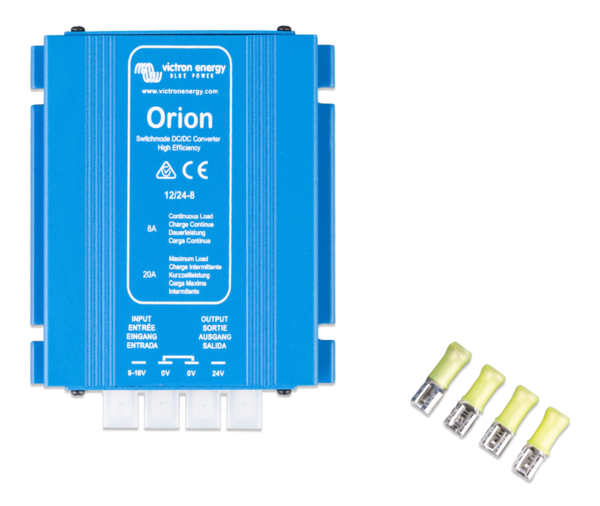

Victron Orion 12V to 24V - 192W 8A Non Isolated DC/DC Converter (SKU Part Number ORI122408020)

The remote on/off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual). All models with adjustable output can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system. All models with adjustable output can be paralleled to increase output current Up to five units can be connected in parallel.

Specifications:

Type: Non-Isolated
Input Voltage Range: 9-18 V
Under Voltage Shutdown: 8 V
Under Voltage Restart: 10 V
Output Voltage Adjustable with Potentiometer: No
Output Voltage: 24 V
Suitable to Buffer-Charge a Battery: No
Can be Connected in Parallel: No
Continuous Output Current: 8 A
Maximum Output Current: 20 A
Efficiency: 95%
Fan Assisted Cooling (Temperature Controlled): No
Galvanic Isolation: No
Off Load Current: <10 mA
Remote On/Off: No
Operating Temperature (Derate 3% Per deg C Above 40 deg C): -20 to 55 deg C
DC Connection: Faston Tabs 6.3 mm
Standards: EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-4
Dimensions: 1.8 in x 3.5 in x 4.5 in
Weight: 0.8 lb
