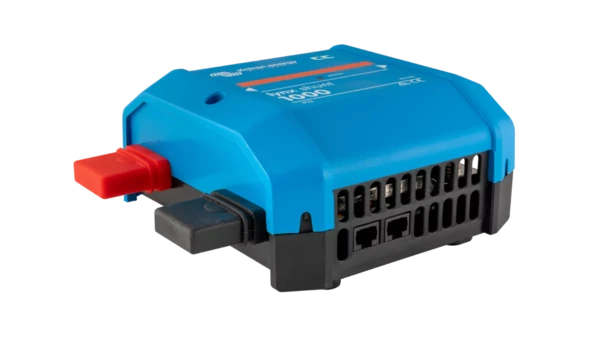

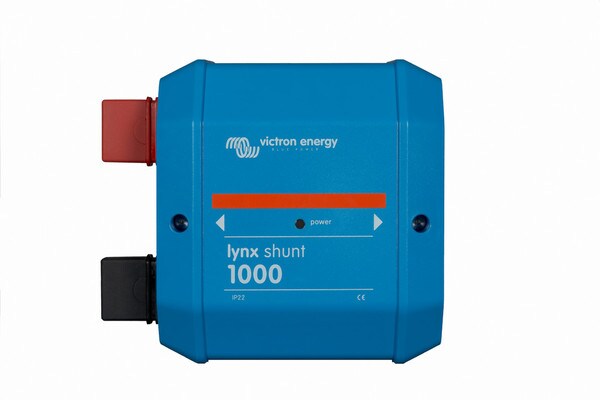

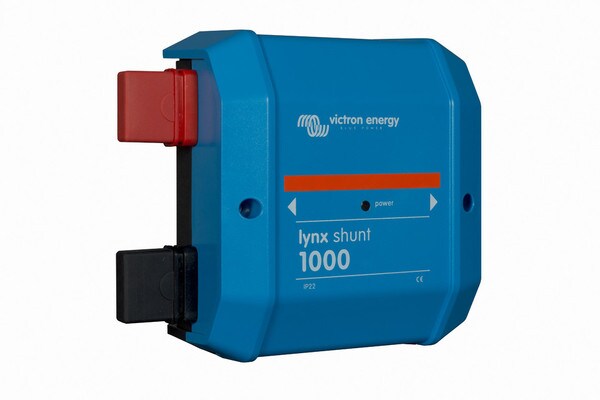

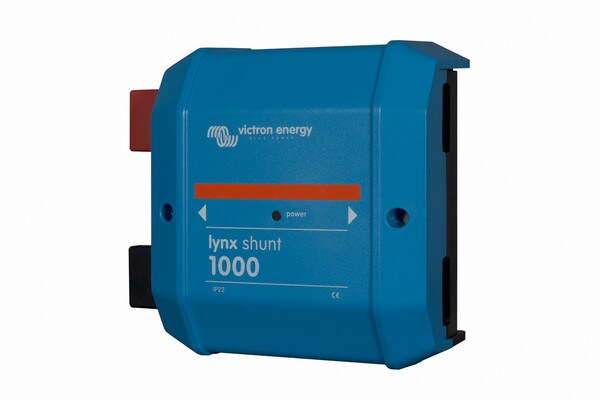

Victron Lynx Shunt VE.Can (M8) (SKU Part Number LYN040102100)

The Lynx Shunt VE.Can is an intelligent 1000A shunt with location for a fuse (not included), the built-in battery monitor accurately monitors the state of charge of your battery. Use a GX device (e.g. Cerbo GX) for reading out the information. Part of the modular Lynx distribution system.

Feature Bullets

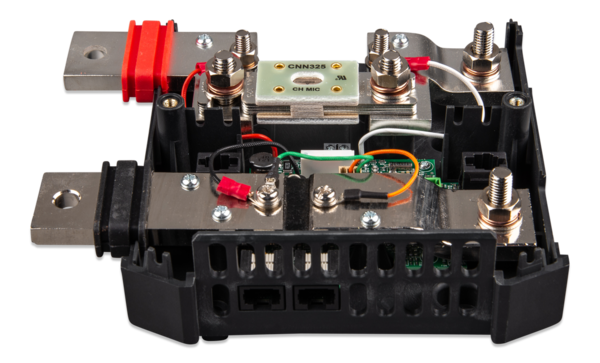

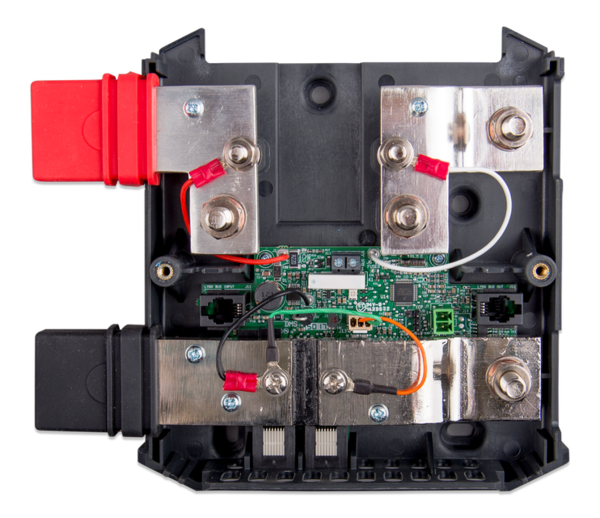

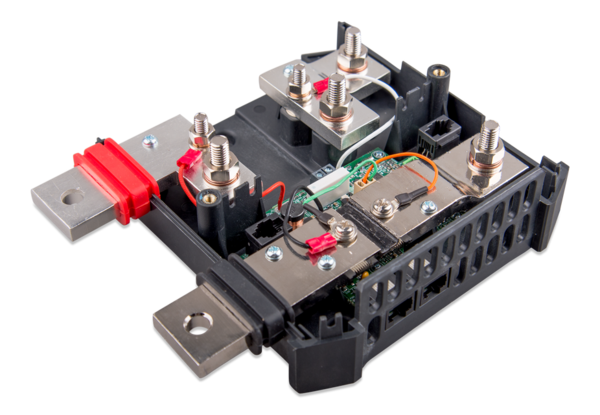

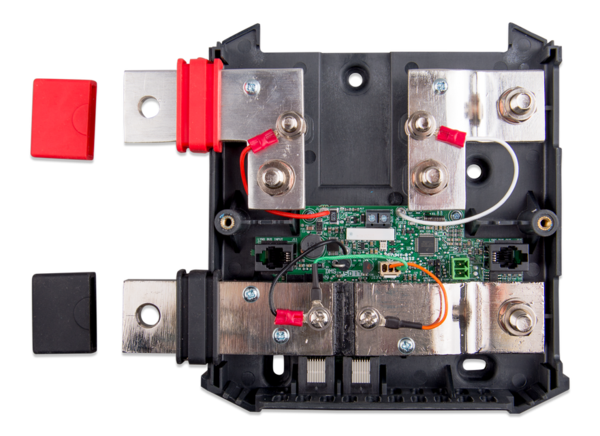

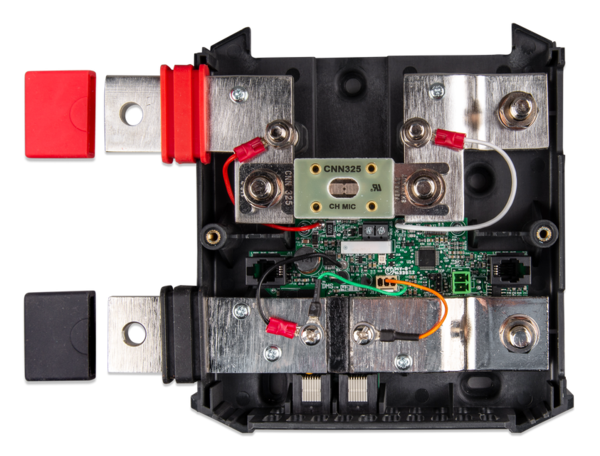

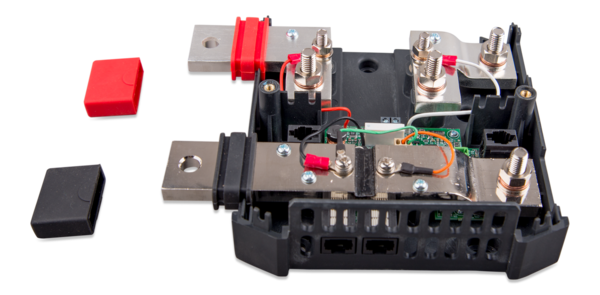

• Busbar integrated battery monitoring - The Lynx Shunt VE.Can contains a positive and negative busbar, a battery monitor and a fuse holder for the main system fuse. It is part of the Lynx Distribution system. The Lynx Distributor has a power LED. The Lynx Shunt VE.Can can communicate via VE.Can with an GX device. The Lynx Shunt VE.Can ships with two RJ45 VE.Can terminators, these are used when connecting to a GX device. The Lynx Shunt VE.Can is designed to hold a CNN fuse. The fuse needs to be purchased separately
• The Lynx Distribution System - The Lynx Distribution System is a modular busbar system that incorporates DC connections, distribution, fusing, battery monitoring and/or Lithium battery management
• The Lynx Distribution System consist of the following parts: Lynx Power In - A positive and negative busbar with 4 connections for batteries or DC equipment. Lynx Distributor - A positive and negative busbar with 4 fused connections for batteries or DC equipment together with fuse monitoring. Lynx Shunt VE.Can - A positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring. It has VE.Can communication for monitoring and setup with a GX device. Lynx Smart BMS - For use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor that is driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring. It has Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with a GX device and the VRM portal

Specifications:

Dimensions: Enclosure: 190 mm Height x 180 mm Width x 80 mm Depth, Busbar: 8 x 30 mm
Material: ABS Enclosure, Tinned Copper Busbar
Supported Voltage Range: 9-70 VDC
Reverse Polarity Protection: No
Current Rating: 1000 ADC Continuous
Power Consumption: 60 mA at 12 V, 33 mA at 24 V, 20 mA at 48 V
Potential Free Alarm Contact: 3 A, 30 VDC, 250 VAC
Busbar Connection: M8
Fuse Rating: M8
VE.Can: RJ45 & RJ45 Terminator
Power Supply Connection To Lynx Distributor: RJ10 (a RJ10 Cable Ships With Each Lynx Distributor)
Temperature Sensor: Screw Terminal
Relays: Screw Terminal
Operating Temperature: -40 to 60 deg C
Storage Temperature: -40 to 60 deg C
Humidity: Maximum 95% Condensing
Enclosure Rating: IP22
Warranty: 5 Years Limited
Weight: 1.4 kg
