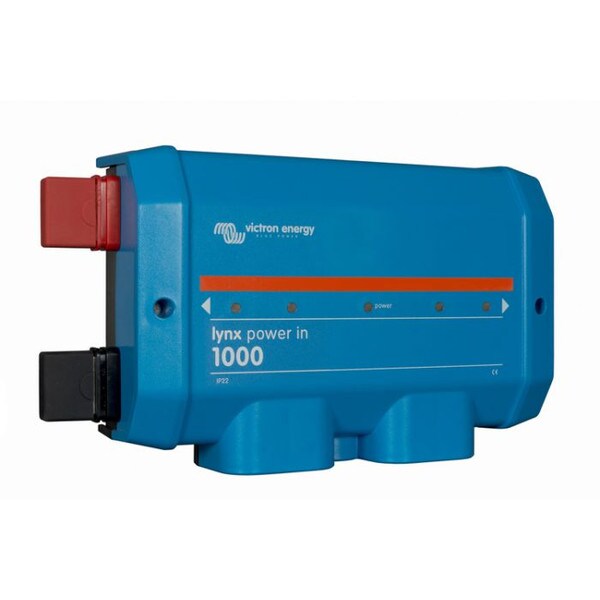

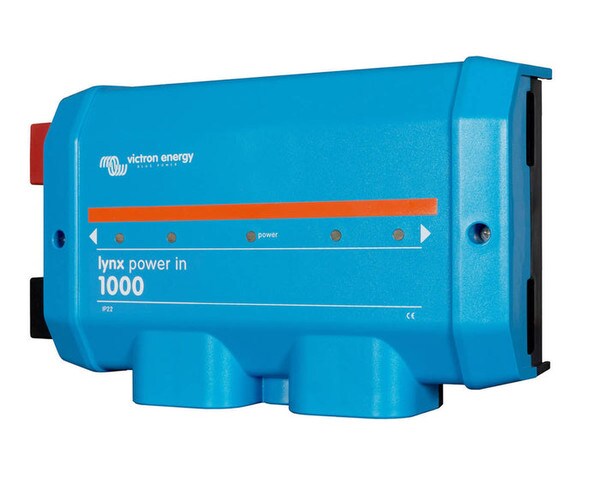

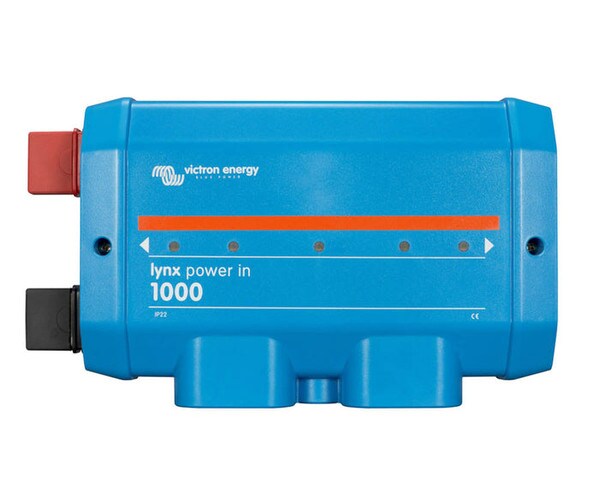

Victron Lynx Power In (M8) (SKU Part Number LYN020102000)

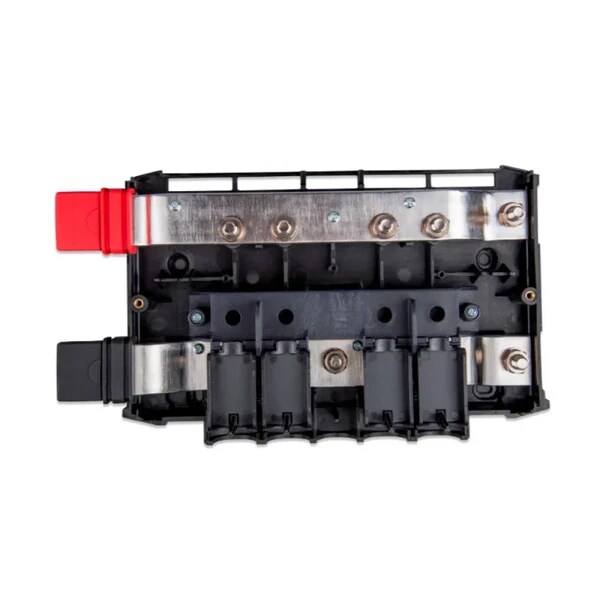

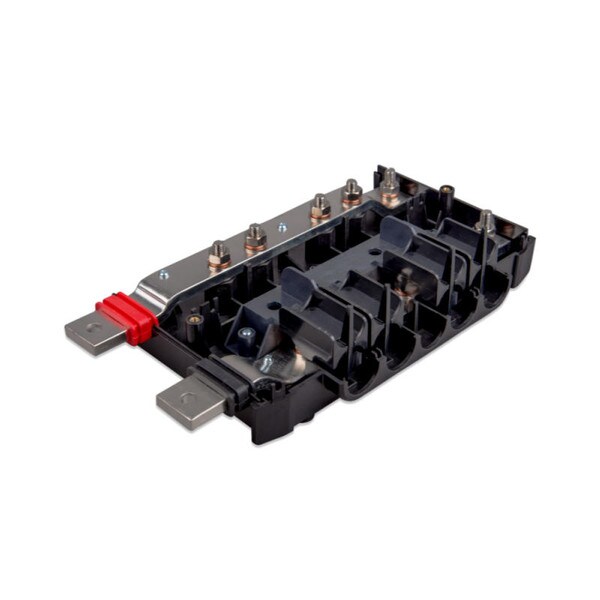

A modular DC bus bar, used to connect batteries to the Lynx DC distribution system. The Lynx Power In contains a positive and negative busbar with 4 connections for batteries, loads or chargers and a ground connection. It is part of the Lynx Distribution system and is available in two versions, with M8 or M10 busbar. Note that M10 refers to the busbar connection joints where the modules are connected to each other. The fuse and cable connections are always M8.

Specifications:

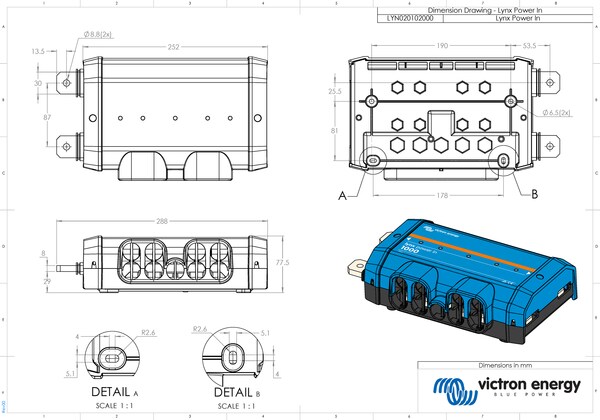

Dimensions: Enclosure: 290 mm Height x 170 mm Width x 80 mm Depth, Busbar: 8 x 30 mm
Material: ABS Enclosure, Tinned Copper Busbar
Supported Voltage Range: 9-60 VDC
Supported System Voltages: 12-24 or 48 V
Current Rating: 1000 ADC Continuous
Busbar Connection: M8
Operating Temperature: -40 to 60 deg C
Storage Temperature: -40 to 60 deg C
Humidity: Maximum 95% Condensing
Enclosure Rating: IP22
Warranty: 5 Years Limited
Weight: 2.1 kg
