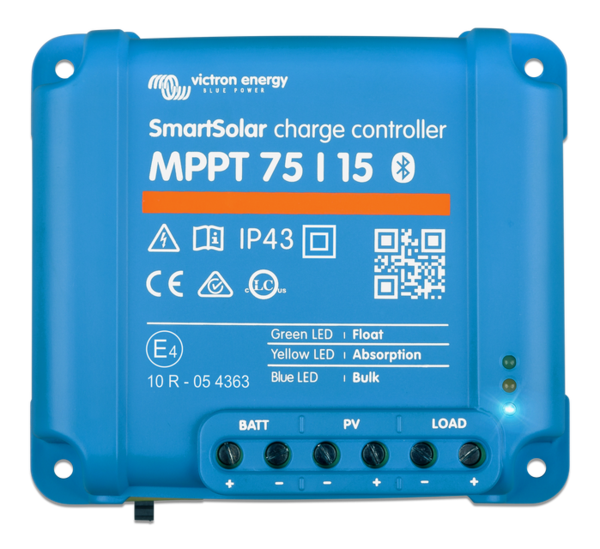

Victron Energy SmartSolar MPPT 75/15

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximizes this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life. The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

Feature Bullets

• MPPT: Ultra fast maximum power point tracking by constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels and harvested for storage
• The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing
• Remote monitoring and control - remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a bluetooth dongle and pairing it with your smartphone or other device via VictronConnect
• If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use
• For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520
• Load output - The intelligent Load output function prevents damage caused by running batteries 'flat'
• You can configure the voltage at which BlueSolar disconnects a load - thereby preventing excessive drain on your batteries
• And here's the clever bit: BlueSolar will attempt a 100% recharge every day
• If it can't - during periods of poor weather - it raises the disconnect voltage, daily, until it achieves success
• We call this feature BatteryLife because it maintains the health, and extends the life of your battery

Specifications:

Type: MPPT
Series/Model: 75/15
Battery Voltage: 12/24 V
Enclosure Rating: IP43 (Electronic Components), IP22 (Connection Area)
Maximum PV Open Circuit Voltage: 75 V
Operating Temperature: -30 to 60 deg C (Full Rated Output up to 40 deg C)
Humidity: 95%, Non-Condensing
Power Terminal: 6 mm2/10 AWG
Temperature Compensation: -16 mV/deg C Resp., -32 mV/deg C
Maximum PV Short Circuit Current: 15 A
Nominal PV Power at 12 V: 220 W
Nominal PV Power at 24 V: 440 W
Charge Current Rating: 15 A
Automatic Load Disconnect: Yes
Protection: Output Short Circuit, Over Temperature
Absorption Charge: 14.4/28.8 V (Adjustable)
Float Charge: 13.8/27.6 V (Adjustable)
Low Voltage Load Disconnect: 11.1/22.2/44.4 or 11.8/23.6/47.2 V or Battery Life Algorithm
Low Voltage Load Reconnect: 13.1/26.2/52.4 or 14/28/56 V or Battery Life Algorithm
Peak Efficiency: 98%
Self-Consumption - Load On: 19 mA at 12 V, 16 mA at 24 V
Self-Consumption - Load Off: 10 mA at 12 V, 8 mA at 24 V
Charging Algorithm: Multi-Stage Adaptive
Maximum Continuous Load Current: 15 A
Data Communication: VE.Direct (See the Data Communication White Paper on Our Website)
Color: Blue (RAL 5012)
Data Stored: Battery Voltage, Current and Temperature, as Well as Load Output Current, PV Voltage and PV Current
Number of Days Trends Data is Stored: 46
Dimensions: 100 mm Height x 113 mm Width x 40 mm Depth
Standards: EN/IEC 62109-1, UL 1741, CSA C22.2
Weight: 0.5 kg
