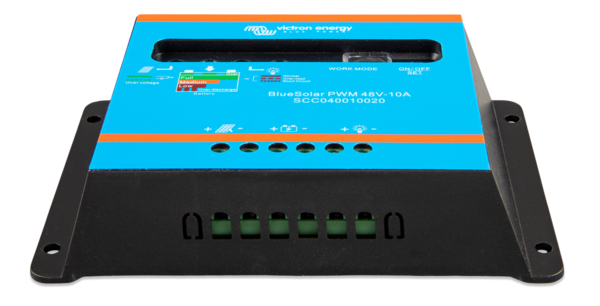

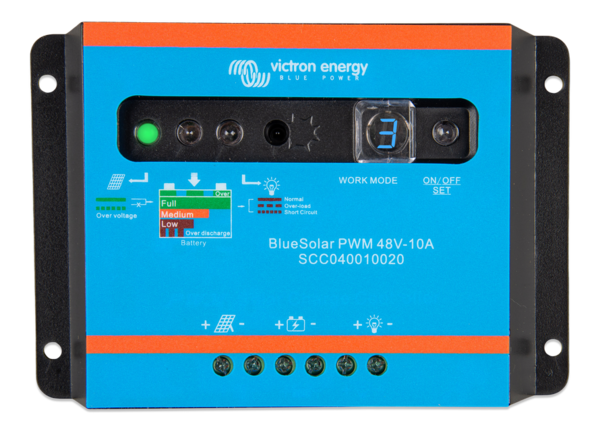

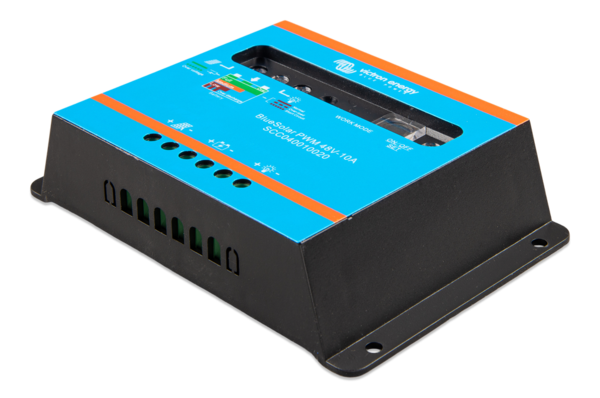

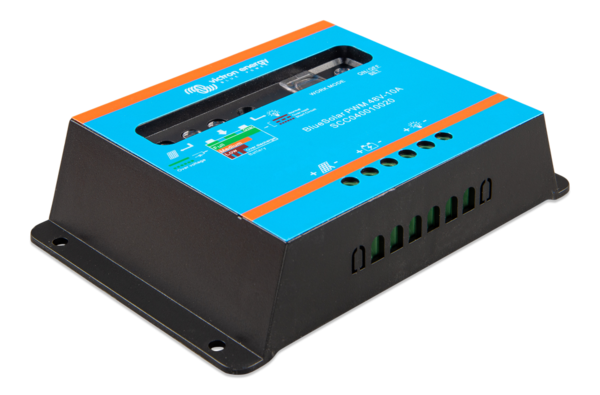

Victron Energy BlueSolar PWM-Light Charge Controller 48V-10A

Feature Bullets

• Load output with low battery voltage disconnect function
• Lighting control function, one timer only
• Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting
• Three stage battery charging (bulk, absorption, float), not programmable
• Load output protected against over load and short circuit
• Protected against reverse polarity connection of the solar array and/or battery
• Day/night timing options: see manual for details
• The Controller immediately switches to the lower absorption voltage level after the bulk charge level has been reached

Specifications:

Type: PWM-Light
Series/Model: 48V-10A
Battery Voltage: 48 V
Enclosure Rating: IP20
Operating Temperature: -20 to 50 deg C
Self-Consumption: <10 mA
Humidity: Max 95% Non-Condensing
Maximum Solar Voltage: 28/55 V
Terminal Size: 6 mm2/10 AWG
Charge Current Rating: 10 A
Automatic Load Disconnect: Yes
Load Output: Manual Control + Low Voltage Disconnect
Protection: Battery Reverse Polarity (Fuse), Output Short Circuit, Over Temperature
Grounding: Common Positive
Absorption Charge: 56.8 V
Float Charge: 55.2 V
Low Voltage Load Disconnect: 44.8 V
Low Voltage Load Reconnect: 50.4 V (Manual), 52.4 V (automatic)
Overload Protection: Shut Down After 60 sec in Case of 130% Load, Shut Down After 5 sec in Case of 160% Load
Bulk Charge: 58 V
Dimensions: 95 mm Height x 140 mm Width x 33.5 mm Depth
Standards: IEC 62109-1, EN 61000-6-1, EN 61000-6-3
Weight: 0.17 kg
