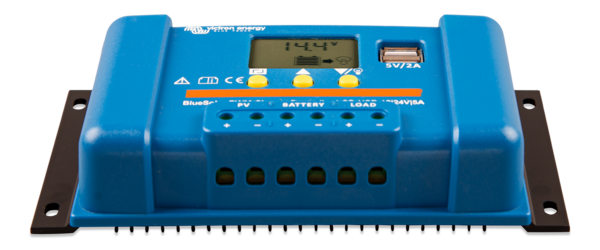

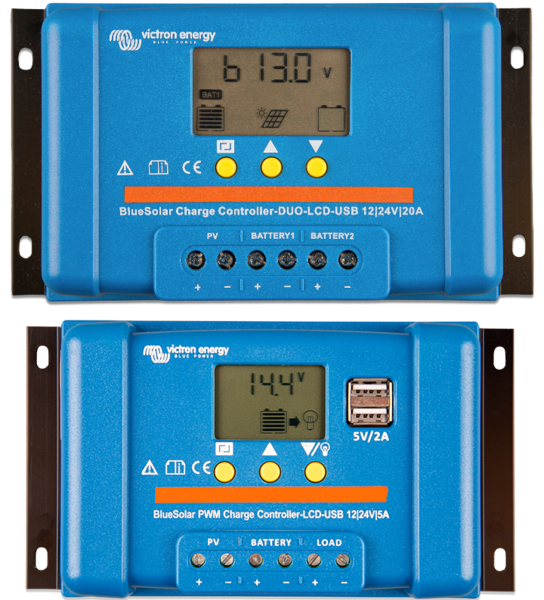

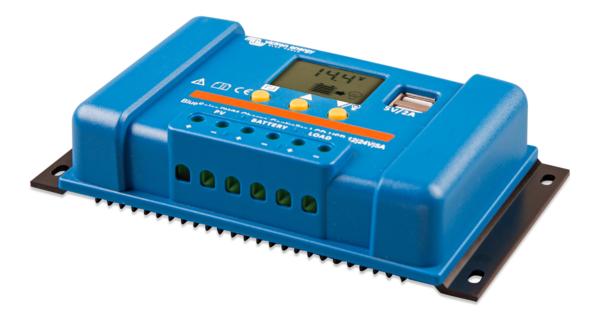

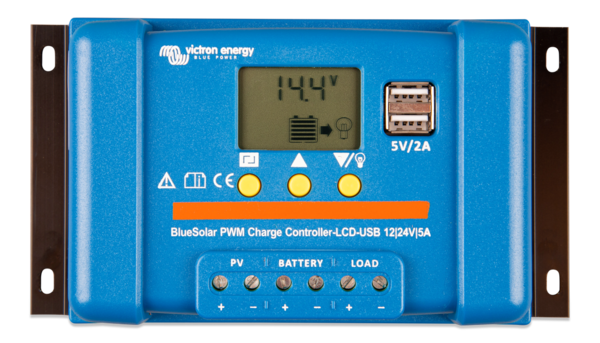

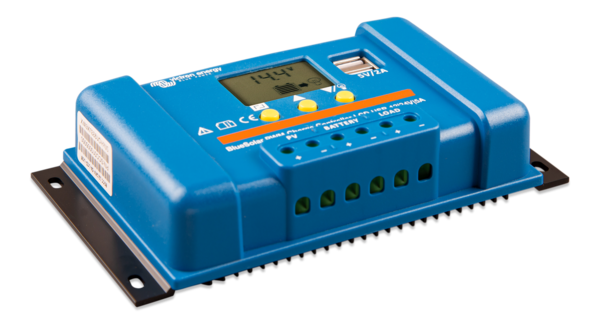

Victron Energy BlueSolar PWM-LCD&USB 12/24V-5A

Feature Bullets

• Liquid crystal display
• Two 5 V USB outputs
• Lighting control function, fully programmable
• Three stage battery charging (bulk, absorption, float), fully programmable
• Load output with low voltage and manual disconnect (programmable)
• Load output protected against over load and short circuit
• Protected against reverse polarity connection of the solar panels and/or battery

Specifications:

Type: PWM-LCD & USB
Series/Model: 12/24V-5A
Battery Voltage: 12/24 V
Enclosure Rating: IP20
Operating Temperature: -35 to 60 deg C
Self-Consumption: <10 mA
Humidity: Max 95% Non-Condensing
Maximum Solar Voltage: 28/55 V
Terminal Size: 6 mm2/10 AWG
USB Voltage: 5 V
Charge Current Rating: 5 A
Automatic Load Disconnect: Yes
Load Output: Manual Control + Low Voltage Disconnect +Timer
Protection: Battery Reverse Polarity (Fuse), Output Short Circuit, Over Temperature
Grounding: Common Positive
Absorption Charge: 14.4/28.8 V
Float Charge: 13.7/27.4 V
Low Voltage Load Disconnect: 11.2/22.4 V
Low Voltage Load Reconnect: 12.6/25.2 V
Overload Protection: Shut Down After 60 sec in Case of 130% Load, Shut Down After 5 sec in Case of 160% Load
USB Current: 2 A
Dimensions: 3.8 in Height x 6.7 in Width x 1.4 in Depth
Standards: EN60335-1, IEC 62109-1, EN 61000-6-1, EN 61000-6-3, ISO 7637-2
Weight: 0.15 kg
Application: 12V Use 36 Cell Solar Panels, 24V Use 72 Cell Solar Panels or 2x 36 Cell in Series
