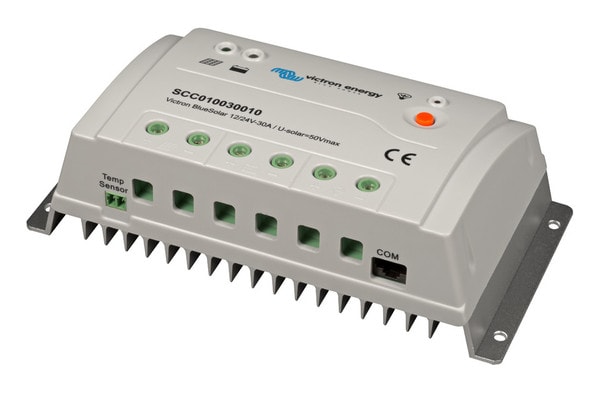

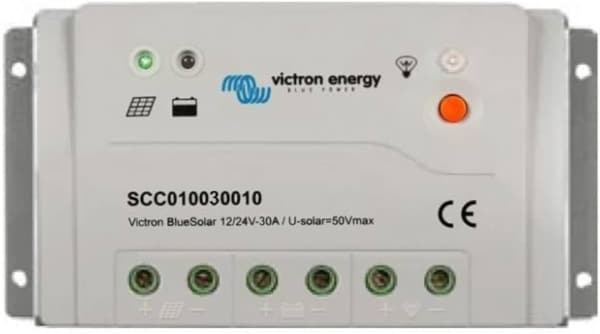

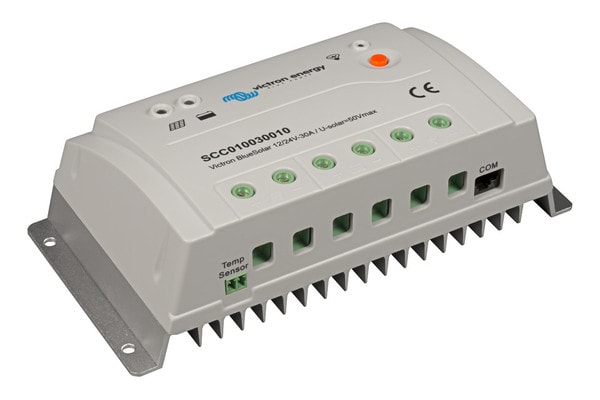

Victron Energy BlueSolar PWM-Pro Charge Controller 12/24V-30A

The BlueSolar PWM-Pro series is ready for use with its default settings. It also is fully programmable, With help of a computer and software (available free of charge from our website), With the dedicated BlueSolar Pro Remote Panel (see features below).

Feature Bullets

• Lighting control function, fully programmable
• Three stage battery charging (bulk, absorption, float), fully programmable
• Integrated battery monitor function (Remote Panel needed to display state of charge)
• Load output with low voltage disconnect and manual control (default setting)
• Optional external temperature sensor
• Load output protected against over load and short circuit
• Protected against reverse polarity connection of the solar panels and/or battery
• Day/night timing options: see manual Remote Panel for details

Specifications:

Type: PWM-Pro
Series/Model: 12/24V-30A
Battery Voltage: 12/24 V
Battery Temperature Sensor: Optional (Article SCC940100100)
Enclosure Rating: IP30
Operating Temperature: -20 to 50 deg C (Full Load)
Self-Consumption: <10 mA
Humidity: Maximum 98% Non-Condensing
Temperature Compensation: -30 mV/deg C Resp., -60 mV/deg C (If Temperature Sensor Installed)
Maximum Solar Voltage: 28/55 V
Terminal Size: 10 mm2
Charge Current Rating: 30 A
Automatic Load Disconnect: Yes
Load Output: Manual Control + Low Voltage Disconnect
Protection: Battery Reverse Polarity (Fuse), Output Short Circuit, Over Temperature
Remote Panel: Optional (Article SCC900300000)
Grounding: Common Positive
Absorption Charge: 14.2/28.4 V
Float Charge: 13.8/27.6 V
Equalization Charge: 14.6/29.2 V
Low Voltage Load Disconnect: 11.1/22.2 V
Low Voltage Load Reconnect: 12.6/25.2 V
Dimensions: 6.3 in Height x 3.2 in Width x 1.9 in Depth
Standards: IEC 62109-1, EN 61000-6-1, EN 61000-6-3, ISO 7637-2
Weight: 0.5 kg
Application: 12V Use 36 Cell Solar Panels, 24V Use 72 Cell Solar Panels
