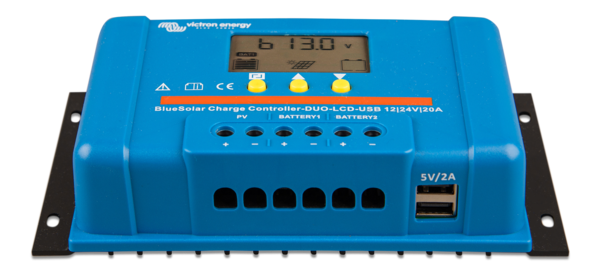

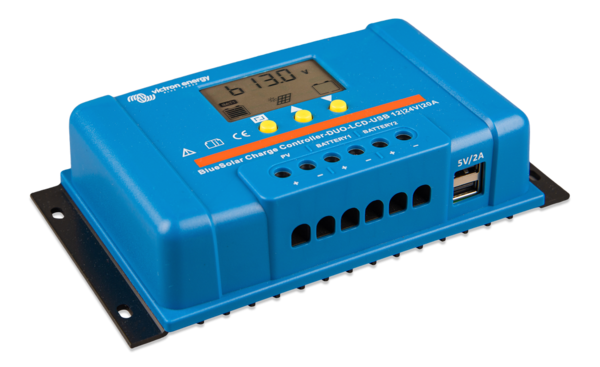

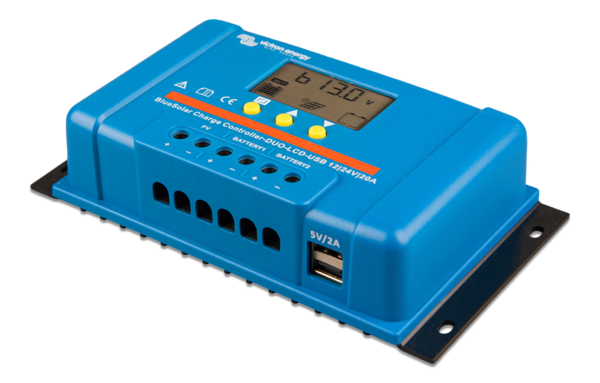

Victron Energy BlueSolar PWM DUO-LCD&USB 12/24V-20A

Feature Bullets

• Charges two separate batteries
• Programmable charge current ratio
• External temperature sensor

Specifications:

Type: PWM DUO-LCD & USB
Series/Model: 12/24V-20A
Battery Voltage: 12/24 V
Battery Temperature Sensor: Yes, Remote Sensor (Included)
Enclosure Rating: IP20
Operating Temperature: -35 to 55 deg C
Self-Consumption: <10 mA
Humidity: Max 95% Non-Condensing
Temperature Compensation: -30 mV/deg C/-60 mV/deg C
Maximum Solar Voltage: 28/55 V
Terminal Size: 16 mm2/6 AWG
USB Voltage: 5 V
Charge Current Rating: 20 A
Automatic Load Disconnect: Yes
Load Output: 2 USB Ports 5 V/2 A
Protection: Battery Reverse Polarity (Fuse), Over Temperature
Grounding: Common Negative
Absorption Charge: 14.4/28.8 V
Float Charge: 13.7/27.4 V
USB Current: 2 A
Dimensions: 4 in Height x 7.4 in Width x 1.8 in Depth
Standards: IEC 62109-1, EN 61000-6-1, EN 61000-6-3, ISO 7637-2
Weight: 0.18 kg
Application: 12V Use 36 Cell Solar Panels, 24V Use 72 Cell Solar Panel or 2x 36 Cell in Series
