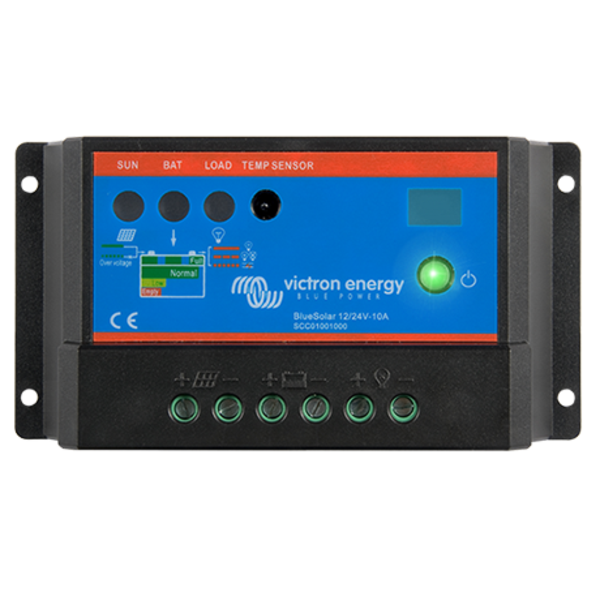

Victron Energy BlueSolar PWM-Light Charge Controller 12/24V-10A

Feature Bullets

• Load output with low battery voltage disconnect function
• Lighting control function, one timer only
• Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting
• Three stage battery charging (bulk, absorption, float), not programmable
• Load output protected against over load and short circuit
• Protected against reverse polarity connection of the solar array and/or battery
• Day/night timing options: see manual for details

Specifications:

Type: PWM-Light
Series/Model: 12/24V-10A
Battery Voltage: 12/24 V
Enclosure Rating: IP20
Operating Temperature: -20 to 50 deg C
Self-Consumption: <10 mA
Humidity: Max 95% Non-Condensing
Maximum Solar Voltage: 28/55 V
Terminal Size: 5 mm2/10 AWG
Charge Current Rating: 10 A
Automatic Load Disconnect: Yes
Load Output: Manual Control + Low Voltage Disconnect
Protection: Battery Reverse Polarity (Fuse), Output Short Circuit, Over Temperature
Grounding: Common Positive
Absorption Charge: 14.2/28.4 V
Float Charge: 13.8/27.6 V
Low Voltage Load Disconnect: 11.22/22.4 V
Low Voltage Load Reconnect: 12.6/25,2 V (Manual), 13.1/26.2 V (Automatic)
Overload Protection: Shut Down After 60 sec in Case of 130% Load, Shut Down After 5 sec in Case of 160% Load
Dimensions: 2.8 in Height x 5.3 in Width x 1.3 in Depth
Standards: IEC 62109-1, EN 61000-6-1, EN 61000-6-3, ISO 7637-2
Weight: 0.15 kg
Application: 12V Use 36 Cell Solar Panels, 24V Use 72 Cell Solar Panels or 2x 36 Cell in Series
