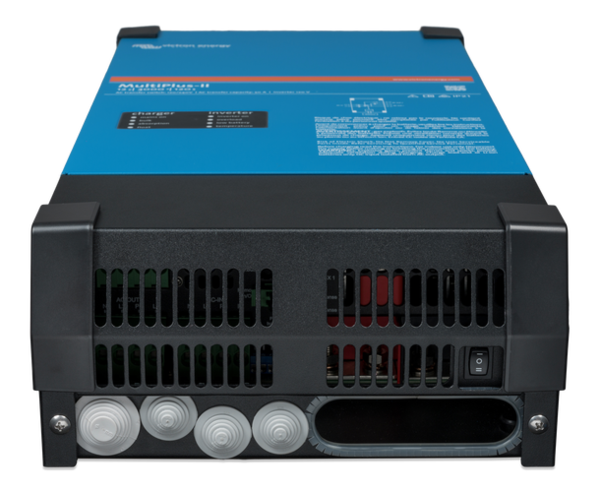

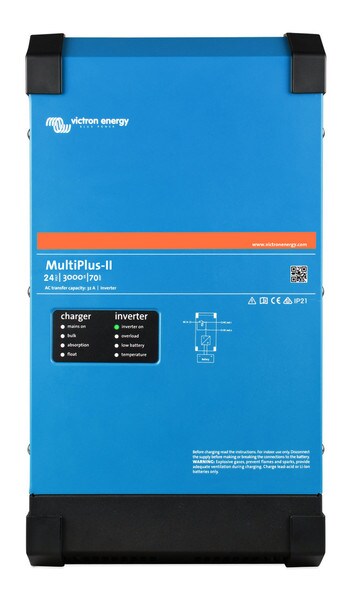

Victron Energy 3000 VA 120 V Two AC Inputs MultiPlus-II Inverter/Charger

The MultiPlus-II 2 x120V is the perfect one-box mobile solution for standard North American 50A 120/240VAC split-phase applications. Whether it is supplied from shore power or a generator, the MultiPlus-II 2x120V can accept and passthrough both lines of a 120/240V supply, with the capability to utilize the full 50A for charging and AC loads. When connecting to a single phase 120V supply, the L1 input of the MultiPlus-II 2x120V will accept incoming power for charging and passthrough, while combining the L1 and L2 outputs for single-phase 120V on each line. The MultiPlus switches to inverter operation when no AC source is available. The inverter output is also 120V single phase. In inverter mode, the MultiPlus-II 2x120V internally connects both lines L1 and L2 together to provide 120VAC to loads on either output. Therefore, in all connection circumstances, both sides of a distribution panel will be supplied with 120V. However, 240VAC is only available when the MultiPlus is supplied by a split phase 120/240VAC source. This prevents heavy loads such as water heaters or 240V air conditioners from discharging the battery. The MultiPlus-II 2x 120V has all of the expected features of our versatile inverter/charger range, including PowerControl, PowerAssist, Input Current Limit, two AC outputs, as well as parallel and 3ph configuration for larger capacity VE.Bus systems. Suitable for LiFePO4 batteries and a variety of other battery technologies.

Feature Bullets

• 120/240V input and output, or 120V input and output (always 120V output when in inverter mode) - The AC input can be supplied from a split phase 120/240V source, or single phase 120V source. When an AC source is available, the MultiPlus will feed through the AC to its output. The output will therefore mirror the AC input. The inverter/charger connects to the neutral and the preferred input line (L1). Power needed to charge the batteries will therefore be drawn from L1. The MultiPlus switches to inverter operation when no AC source is available. The inverter output is 120V single phase. In invert mode, the MultiPlus connects both output lines (L1 and L2) together to provide 120VAC to loads on either line. Any 240V loads will therefore be supplied only when the MultiPlus is supplied by a split phase AC source. This prevents heavy loads such as water heaters or 240V air conditioners from discharging the battery
• PowerControl and PowerAssist - Boosting the capacity of the grid or a generator - A maximum grid or generator current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for battery charging, thus preventing the generator or grid from being overloaded (PowerControl function). PowerAssist takes the principle of PowerControl to a further dimension. Where peak power is so often required only for a limited period, the MultiPlus-II will compensate insufficient generator, shore or grid power with power from the battery. When the load reduces, the spare power is used to recharge the battery (available on L1 input only)
• Two AC Outputs - The main output has no break functionality. The MultiPlus takes over the supply to the connected 120V loads in the event of a grid failure or when shore/generator power is disconnected. The transfer time of the L1 output is less than 18 milliseconds so that computers and other electronic equipment will continue to operate without disruption. The transfer time of the L2 output is longer: approximately 40 milliseconds. The second (auxiliary) output is live only when AC is available on the input of the MultiPlus. Loads that should not discharge the battery can be connected to this output
• Virtually unlimited power thanks to parallel and three phase operation - Up to 6 Multis can operate in parallel to achieve higher power output. In addition to parallel connection, three units of the same model can be configured for three phase output. In multi-phase setups, L2 is disabled on all units
• On-site system configuring, monitoring and control - Settings can be changed in a matter of minutes with VEConfigure software (computer or laptop and MK3-USB interface needed). Several monitoring and control options are available: Cerbo GX, Color Control GX, Venus GX,, CANvu GX, laptop, computer, Bluetooth (with the optional VE.Bus Smart dongle), Battery Monitor, Digital Multi Control Panel
• Remote configuring and monitoring - Install a Cerbo GX or other GX product to connect to the internet. Operational data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge. When connected to the internet, systems can be accessed remotely, and settings can be changed
• Cerbo GX with GX Touch 50 - Provides intuitive system control and monitoring Besides system monitoring and control the Cerbo enables access to our free remote monitoring website: the VRM Online Portal
• VRM Portal - Our free remote monitoring website (VRM) will display all system data in a comprehensive graphical format. System settings can be changed remotely via the portal. Alarms can be received by e-mail
• VRM app - Monitor and manage your Victron Energy system from your smart phone and tablet. Available for both iOS and Android
• VE.Bus Smart Dongle - Measures battery voltage and temperature and allows monitoring and control with a smart phone or other Bluetooth enabled device
• Current sensor 100A:50mA - To implement PowerControl and PowerAssist and to optimize selfconsumption with external current sensing. Maximum current: 50A resp. 100A
• Digital Multi Control Panel - A convenient and low-cost solution for remote monitoring, with a rotary knob to set PowerControl and PowerAssist levels
• VE.Bus communication port - For parallel and three phase operation, remote monitoring and system integration

Specifications:

Type: Two AC Inputs
Width: 275 mm
Height: 578 mm
Depth: 148 mm
Material: Steel
Color: Blue (RAL 5012)
Continues Power at 25 deg C: 3000 VA/2400 W (Inverter)
Continues Power at 40 deg C: 2200 W (Inverter)
Continues Power at 60 deg C: 1700 W (Inverter)
Peak Power: 5500 W (Inverter)
DC Input Voltage Range: 19-33 V (Inverter)
Output AC Voltage: 120 VAC +/-2% (Inverter)
Output AC Frequency (Adjustable): 60 Hz +/-0.1% (Inverter)
Maximum Efficiency: 94% (Inverter)
Zero-Load Power: 11 W (Inverter)
Zero-Load Power in AES Mode: 8 W (Inverter)
Zero-Load Power in Search Mode: 4 W (Inverter)
Protection: A-G
Battery Connection: (2) M8 Bolts
Protection Category: IP22
Operating Temperature: -40 to 65 deg C (Fan Assisted Cooling) Derate 1.25% per deg C Above 40 deg C
Humidity (Non-Condensing): Maximum 95%
Remote On/Off: Yes
AC Input Voltage: Split Phase: 180-280 VAC, Single Phase: 90-140 VAC (Charger)
AC Input Frequency Rating: 45-65 Hz (Charger)
Charge Voltage Absorption: 28.8 V (Charger)
Charge Voltage Float: 27.6 V (Charger)
Storage Mode: 26.4 V (Charger)
Charge Current House Battery: 70 A (Charger)
Battery Temperature Sensor: Yes

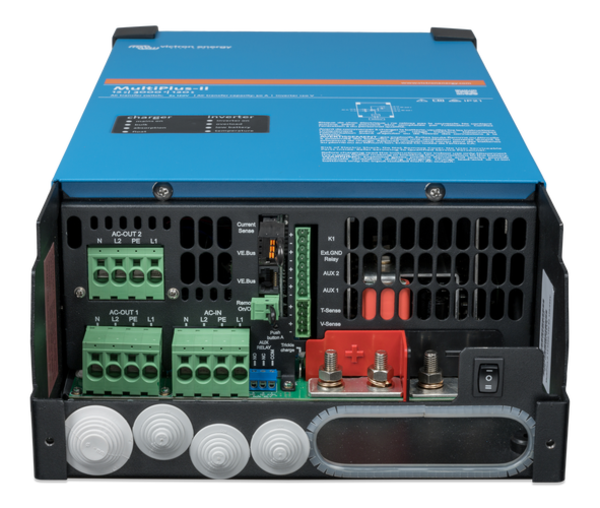

120 VAC Connection: Screw Terminals 21 mm2 (4 AWG)
PowerControl/PowerAssist: Yes (on L1 Input)
Transfer Switch: 50A
Programmable Relay: Yes
Maximum AC Input Current: 50 A (Each Leg)
Auxiliary Output: 50 A (Each Leg)
External AC Current Sensor: 100A
General Purpose Com Port: Yes (2x)
Standards: EN-IEC 60335-1, EN-IEC 60335-2-29, EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Warranty: 5 Years Limited
Weight: 48 lb
