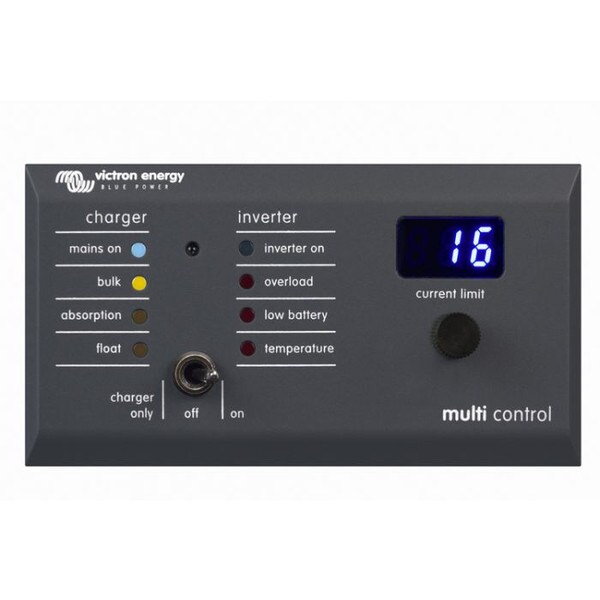

Victron Digital Multi Control 200/200A GX (90º RJ45) (SKU Part Number DMC000200010R)

The Digital Multi Control is used to remotely view and adjust AC input currents, and turn on and off the Multi or Quattro. It is designed to integrate cleanly with your boat, vehicle or house system control panel. The Digital Multi Control panel (DMC) is designed to work with all Multi/Quattro. This includes stand alone, parallel and 2-3 phase configurations. Connecting the DMC to your system is simple, in most cases just connecting the DMC with an RJ45 cable is sufficient and no extra set-up handling is required.

Feature Bullets

• Turn inverter/charger on, off or set to 'charger-only' operation
• 7-segment, blue LED display with auto-dimming function at night
• Charger status LEDs indicating power and charge stage
• Inverter status LEDs indicating power and alarm status
• Adjustable AC shore current limit via rotary control knob (upper limit settable)
• Adjustable AC input current limit for generator when using external transfer switch

Specifications:

Type: 200/200A GX
Dimensions: 65 mm Height x 120 mm Width x 12 mm Depth
Depth Required Behind Mounting Face: 20 mm
RJ45 Socket Orientation: Side Entry (90 deg to Face of Panel)
Includes: 90 deg RJ45 Connector for More Compact Installation
Warranty: 5 Years
