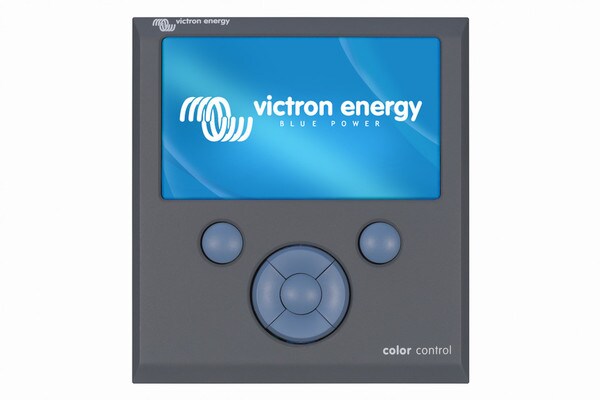

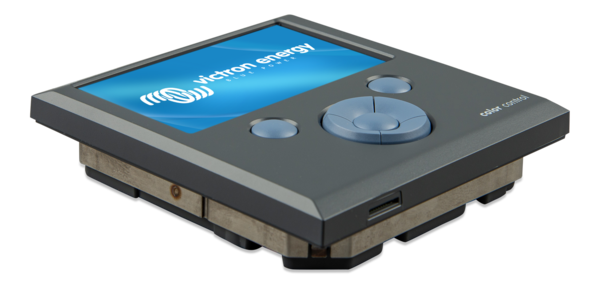

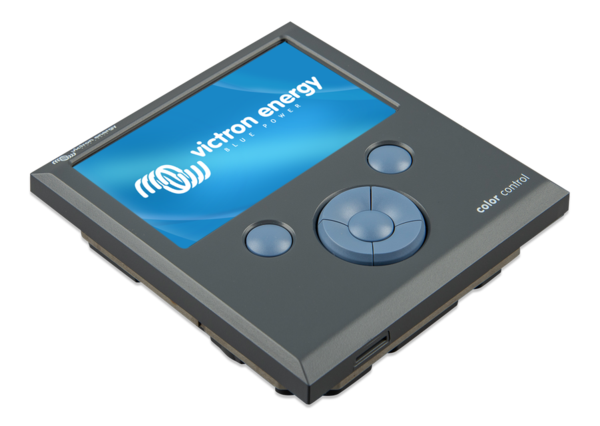

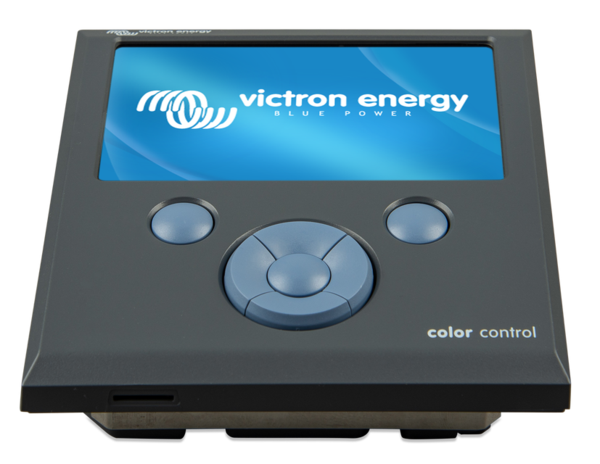

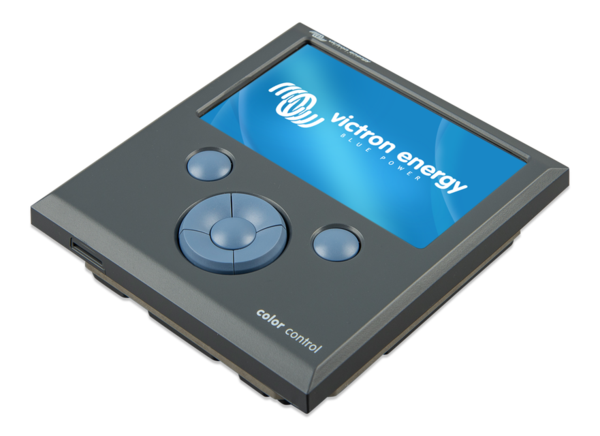

Victron Color Control GX (SKU Part Number BPP010300100R)

The Color Control GX is the communication-centre of your installation. It offers at-a-glance live information, and lets you control all products connected to it. Full system control is gained - almost anywhere in the world - by accessing your Color Control GX using our free-to-use Victron Remote Management Portal (VRM).

Feature Bullets

• Color Control GX - The Color Control (CCGX) provides intuitive control and monitoring for all Victron power systems. The list of Victron products that can be connected is endless: Inverters, Multis, Quattros, MPPT solar chargers, BMV battery monitors, Lynx Ion + Shunt and more

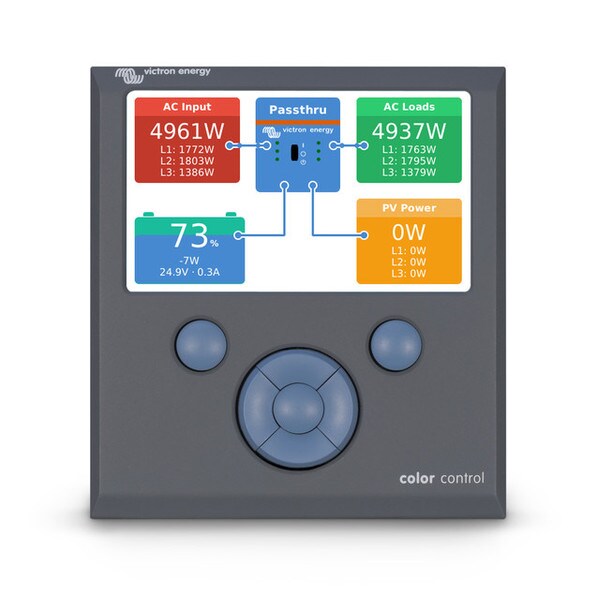

• Intuitive system overview - all you need to know, At a single touch, Color Control GX provides an instant overview of your system: battery state of charge; present power consumption; power harvest from PV; power provision from mains/generator
• The full power of Victron Remote Management - Victron Remote Management (VRM) provides you with full access to the very extensive controls and settings of all system-components which are connected to either your CCGX or Venus GX. It allows remote user and installer login - from anywhere, at anytime. This powerful application also provides for hassle-free diagnostic checks and analysis of archived information
• Automatic Generator start/stop - The Color Control GX can be programmed to auto-start your generator - triggered by low-voltage; high-demand; or battery state of charge. It can be further tailored to delay ignition until the end of 'quiet' periods - avoiding accidental nuisance at dead of night
• Remote Console - control everything from anywhere… A Remote Console feature is available. It's like carrying the front face of your CCGX control panel around on your phone, or other device
• Energy Storage Systems - 24 hour Monitoring, The Color Control GX manages Energy Storage Systems. It keeps back-up batteries at 100% ; kicks-in during power-cuts; and diverts excess (solar) power to self-consumption - saving you money
• Remotely monitor your boat or motorhome electrics - Planning a trip, Remote monitoring of your Color Control GX allows you to make sure your boat or motorhome are ready to go. Color Control GX also allows you to talk to connected equipment from other manufacturers
• Data logging - When connected to the internet, all data is sent to the VRM Portal. When there is no internet connection available, the CCGX will store the data internally, up to 48 hours. By inserting a micro SDcard or USB stick, more data can be stored. These files can then be uploaded to the VRM Portal, or offline converted with the VictronConnect app, for analysis
• Internet connection - The CCGX can be connected to internet with an Ethernet cable and via wifi. To connect via wifi, a wifi USB accessory is required. The CCGX has no internal cellular modem: there is no slot for a sim-card. Use an off-the-shelf GPRS or 3G router instead

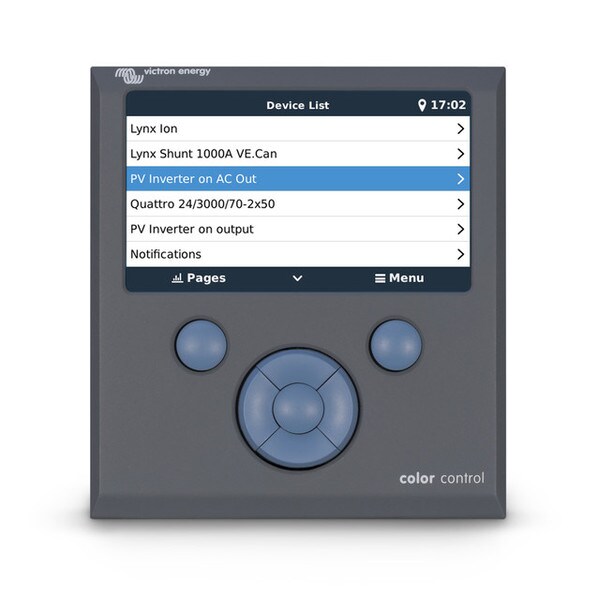

• Supported Products: - Multis and Quattros, including split-phase and three-phase systems. Monitoring and control, (on/off and current limiter). Changing configuration is possible (only remotely via the internet, not without an internet connection). - BlueSolar MPPT Solar Chargers with a VE.Direct port. - BlueSolar MPPT 150/70 and the MPPT 150/85 with VE.Can port. - SmartSolar MPPT 150/70 and the MPPT 150/100 with VE.Can port. When multiple BlueSolar MPPTs or SmartSolar MPPTs with VE.Can are used in parallel, all the information is combined as one. See also our blog-post about synchronizing multiple MPPT 150/70 solar chargers. - BMV-700 family can be connected directly to the VE.Direct ports on the CCGX. Use the VE.Direct Cable for this. - BMV-600 family can be connected to the VE.Direct ports on the CCGX. Requires an accessory cable. - Lynx Ion + Shunt, - Lynx Shunt VE.Can, - Skylla-i battery chargers, - NMEA2000 tank sensors, - A USB GPS can be connected to the USB port. Location and speed will be visible on the display, and the data is sent to the VRM Portal for tracking purposes. The map on VRM will show the latest position. - Fronius PV Inverters

Specifications:

Supply Voltage Range: 8-70 VDC
Current Draw: 12 VDC, 24 VDC, 48 VDC

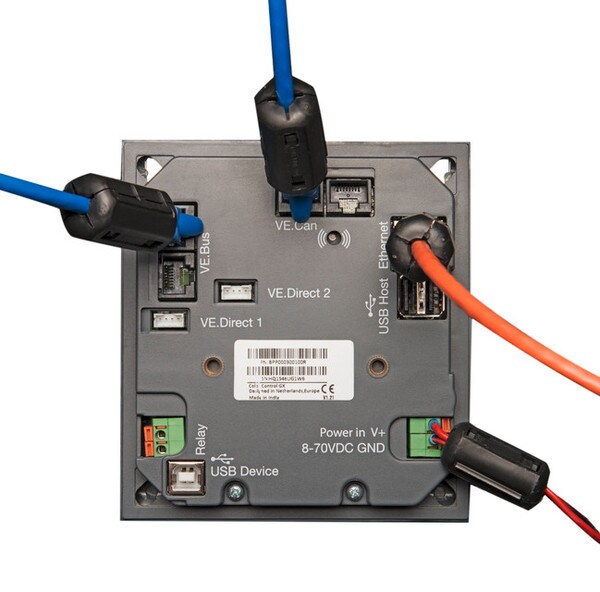

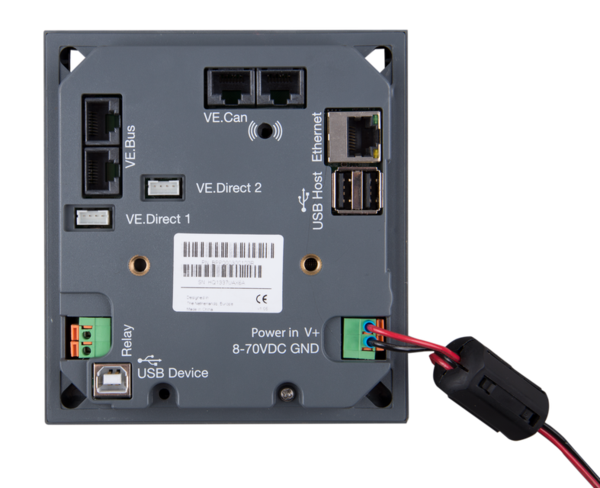

Communication Port: 2 Separate VE.Direct Ports, 2 Paralleled RJ45 Socket, 2 USB Host Ports, 10/100/1000MB RJ45 Sockets
3rd Party Interfacing: Modbus-TCP - Use Modbus-TCP to Monitor & Control All Products Connected to the Color Control GX, JSON - Use The VRM JSON API to Retrieve Data from the VRM Portal
Operating Temperature: -20 to 50 deg C
Dimensions: 130 mm Height x 120 mm Width x 28mm Depth
Standards: Safety - EN 60950-1:2005+A1:2009+A2:2013, EMC - EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, Automotive Directive - E4-10R-053535
