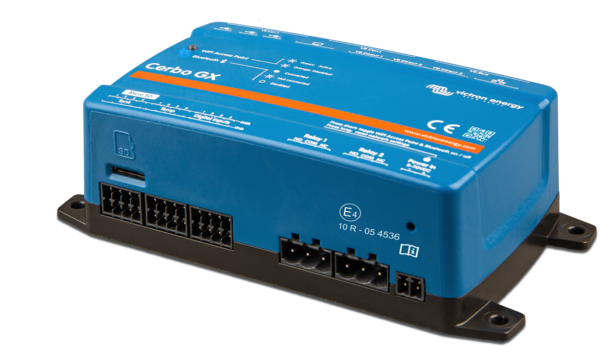

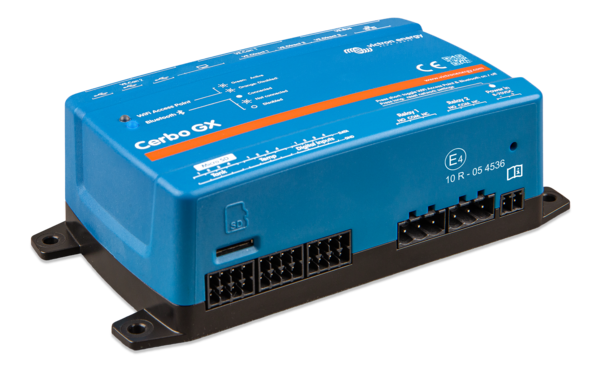

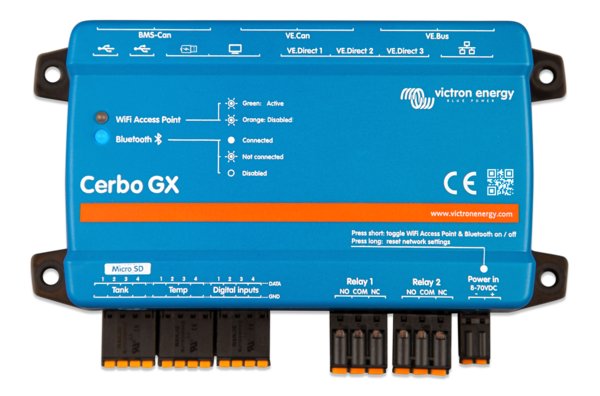

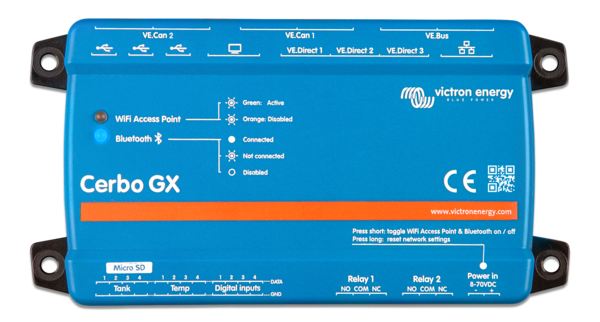

Victron Cerbo GX (SkU Part Number BPP900450100)

The Cerbo GX is a flexible communication centre that will take remote monitoring to the next level. With all the hardware connection possibilities to fit your every need. The Cerbo GX enables you to monitor and control your system from anywhere, at any time. It is designed to be a versatile centerpiece that seamlessly connects to your other Victron connected products and supported third party devices. Master remote systems with real-time monitoring, historical analysis, remote access and control with the Victron Remote Monitoring (VRM) portal and VictronConnect app. Or simply connect a GX Touch display for direct control. With plenty of possibilities, the Cerbo GX puts the power in your hands.

Feature Bullets

• Powerful processor
• VRM remote monitoring
• Optional waterproof touchscreen
• VictronConnect App
• Simple mounting
• Integrates with MFDs & NMEA 2000

Specifications:

Supply Voltage: 8-70 VDC
Power Draw without GX Touch: 2.8 W at 12 V
Power Draw with GX Touch: Backlight Off - 3.8 W at 12 V, Backlight at Maximum - 4.8 W at 12 V
Mounting Type: Wall or DIN Rail (35 mm) (2)
VE.Direct Ports (Always Isolated): 3 (Maximum Possible VE Direct Devices - 15) (3)
VE.Bus (Always Isolated): 2 Paralleled RJ45 Sockets
VE.Can: Yes - Non-Isolated
BMS-Can port: Yes
Bluetooth: Yes
Resistive tank level inputs: 4
Temperature Sense Inputs: 4
Digital Inputs: 4
Relays: 2 x NO/NC, DC up to 30 VDC - 6 A DC up to 70 VDC: 1 A, AC - 6 A, 125 VAC
Operating Temperature: -20 to 50 deg C
Enclosure Rating: IP20
Display Resolution: GX Touch 50 - 800 x 480, GX Touch 70 - 1024 x 600
Cable Length: 2 m
Mounting Type: Top/Wall
Standards: IEC 62368-1, EN 301489-1, EN 301489-17, ECE R10-6
Dimensions: 78 mm x 154 mm x 48 mm
