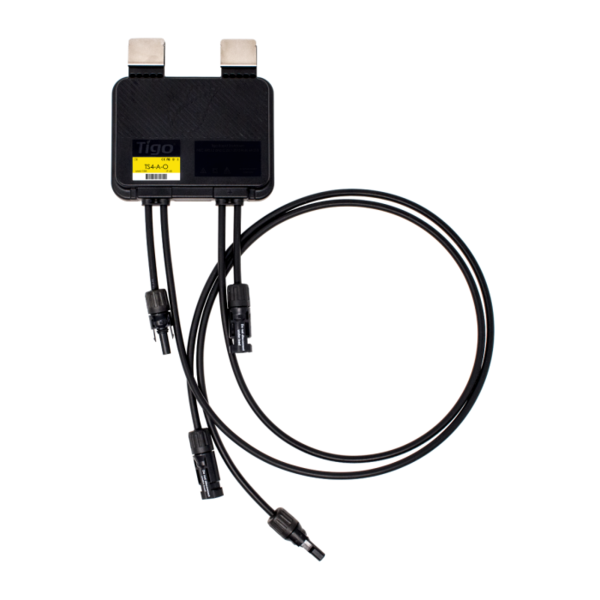

Tigo TS4-A-O, 1500V UL/TUV, 1.2M Cable, MC4 Comparable, 700W Max Power (SKU Part Number 461-00252-32)

The Tigo TS4-A-O improves production, safety, and intelligence in new designs and existing systems. Patented technology delivers top performance with high efficiency for a fast ROI. Easy installation and long term reliability reduce system downtime and truck rolls, while Tigo's Energy Intelligence platform enables quicker onsite commissioning and comprehensive remote monitoring.

Feature Bullets

• Simple, fast installation - snap to a standard PV module frame or mount to racking
• Intelligent optimization - optimizes only when needed
• Module-level monitoring - full visibility into module- and system-level production
• Rapid shutdown - a UL/NEC-certified component for photovoltaic rapid shutdown systems (PVRSS) worldwide
• Works with any system - fully compatible with thousands of different inverter models from more than 50 inverter brands
• Monitoring, rapid shutdown, and remote troubleshooting with TAP and CCA
• The TS4-A-O (Optimization) is the advanced add-on optimization solution that brings smart module
• functionality to standard PV modules for higher reliability. Improve energy efficiency by upgrading
• underperforming PV systems or adding smart features to new installations. Complies with 2017 and 2020 NEC rapid shutdown requirements
• The TS4-A-O add-on supports PV modules up to 700W
• Module-level optimization for increased energy yield and greater design flexibility
• Manual or automatic module-level shutdown. Complies with NEC 2017 and 2020
• Module-level monitoring for energy production tracking and system management
• Easy Installation - Snap to standard module frame or remove brackets for rack mounting
• Smart Commissioning - Configure and commission with your Android or iOS mobile device

Specifications:

Series/Model: TS4-A-O
Maximum Input Voltage: 80 V
Input Voltage Range: 16-80 V
Maximum Current: 15 A
Maximum Power (Pmax): 700 W
Cable Length: 0.12-0.62 m
Connector Type: MC4 (Standard), EVO2 (Optional)
Rapid Shutdown UL Listed: Yes
Conductor Range: 12 AWG
Operating Temperature: -30 to 75 deg C
Outdoor Rating: IP68, NEMA 3R
Maximum Altitude: 2000 m
Rapid Shutdown Time Limit: Relative Humidity: 0-100%
Standards: FC, IC, CE
Warranty: 25 Years
Weight: 520 g
