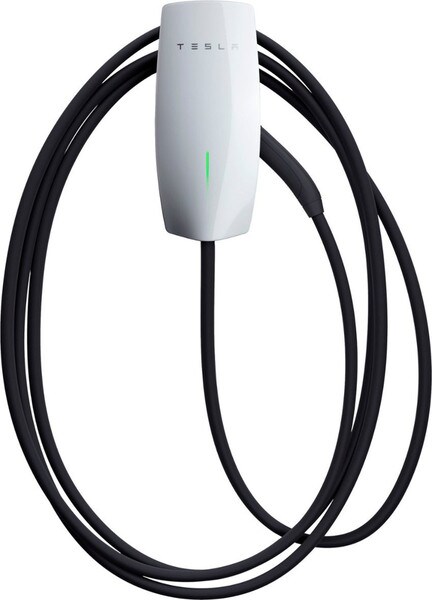

Tesla Motors 24' Gen 3 Cable Wall Connector

(0)No Reviews yet

Wall Connector is the most convenient charging solution for houses, apartments, hospitality properties and workplaces. The Tesla Motors 24' Gen 3 Cable Wall Connector is a convenient and high-performing charging solution for Tesla vehicles. This wall connector features a 24-foot cable, making it easy to position and use in a variety of parking locations. It uses a maximum power output of 48 amps to charge your Tesla quickly, ensuring that you're back on the road in no time. The Tesla Motors 24' Gen 3 Cable Wall Connector is designed with user convenience in mind, with features such as a lightweight design and a simple wall-mounted installation process. This wall connector is compatible with all Tesla cars and is a must-have accessory for convenient and efficient charging. Visit Tesla's website to purchase the Tesla Motors 24' Gen 3 Cable Wall Connector or for more information.

Feature Bullets

  • Compatible with both single and three phase power
  • Up to 75 km of range added per hour
  • Auto-sensing handle to open charge port
  • Monitor and manage your charging schedule and usage from the Tesla app
  • Wi-Fi connectivity for over-the-air updates, remote diagnostics and access controls
  • Versatile indoor/outdoor design
  • Variable amperage configurations depending on installation location
  • Power-share with up to six Wall Connectors
  • 7.3 m Cable length
  • Four-year warranty for residential use


Height: 13.6 in
Width: 6.1 in
Depth: 4.3 in
Cable Length: 24 ft
Nominal Voltage: 200-240 Vac
Phase: 1
Output Amperage: 12-48 A
Frequency Rating: 50/60 Hz
Terminal Block: 12-4 AWG (3.5 - 25 mm2), Copper Only
Operating Temperature: -22 to 122 deg F
Enclosure Rating/IP Rating: NEMA 3R
Communication Interface: Wi-Fi 2.4 GHz, 802.11b/g/n
Warranty: 2 Years
Weight: 10 lb
Standards: cULus - E351001
