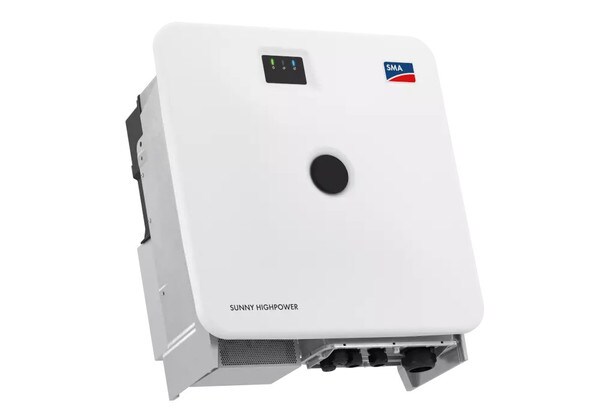

SMA Solar Technology AG 150000 W 3-Phase Sunny HighPower Peak 3 String Inverter

(0)No Reviews yet
SKU: SHP-150-US-20

The Sunny Highpower PEAK3 is the central component of the SMA solution for PV power plants with a decentralized architecture and system voltages of 1500 V DC. This compact string inverter enables cost-optimized solutions for industrial PV applications thanks to its high power density. It also provides a simple way of transport and allows for quick installation and commissioning. This string inverter with 150 kW of power is equipped with the automatic SMA Smart Connected service for proactive servicing that facilitates operation and maintenance and reduces service costs throughout the entire project lifetime.

Feature Bullets

  • High power density with 150 kW thanks to its compact structure
  • Max. yield due to possible DC/AC ratio of up to 150%
  • Superior PV system availability with 150 kW units
  • Innovative digital features aligned with the energy management platform ennexOS
  • For DC input voltages up to 1500 V
  • Flexible DC solutions with customer-specific PV array junction boxes


Type: 3-Phase
Overall Length: 32.7 in
Overall Width: 30.3 in
Overall Depth: 17.5 in
Input Voltage: 1500 V
Output Voltage: 600/480-690 V
Power Rating: 150000 W
Input Current: 180/325 A
Amperage Rating: 151 A
Efficiency: 99.1/98.8%
Frequency Rating: 50 Hz
Cooling Type: OptiCool, Active, Speed-Controlled Fan
Power Factor: 1
Mounting Type: Rack
Connection Type: Terminal Lug/Screw Terminal
Temperature Rating: -13 to 140 deg F
Display Type: LED
