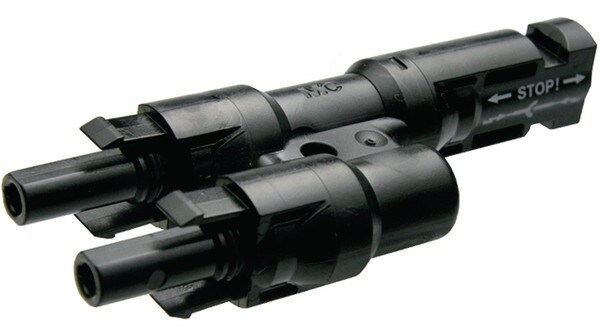

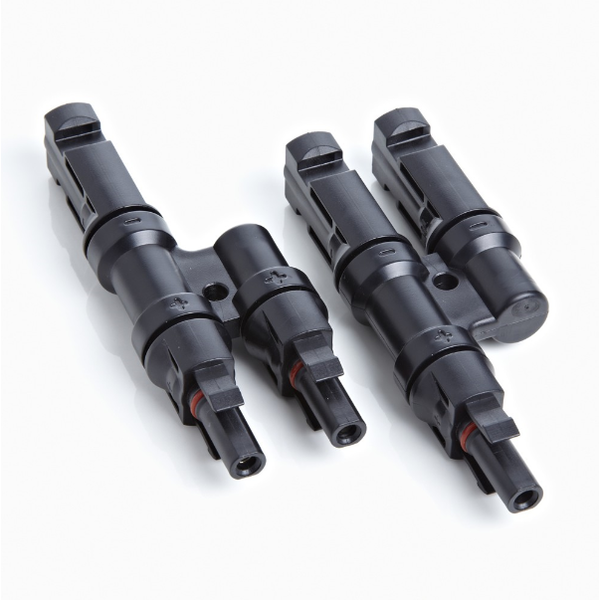

Staubli (2) Male x (1) Female MC4 Branch Connector

Branch connector for a safe and reliable parallel (or serial-parallel) connection of PV-modules.

Feature Bullets

• Plug-and-play: no crimping or torquing necessary
• Versatility and compact dimensions
• Mating compatibility with MC4 and MC4-Evo 2 connector
• DC 1500 V according to IEC 62852 and UL 6703
• Resistance to salt mist spray
• Proven MULTILAM Technology with high long-term stability which ensures consistently low performance loss throughout the entire service life of the connector
• World's first dual certified DC 1500 V branch connector

Specifications:

Connection Type: (2) Male x (1) Female
Contact Type: Plug
Contact Resistance: <0.5 mOhm
Rated Impulse Voltage: 16 kV
Rated Voltage: 1500 VDC
Test Voltage: 8 kV
Rated Current: 60 A IEC, 50 A UL
Contact Material: Tin Plated Copper
Insulation Material: PA
Contact System: Multilam
Degree of Pollution: 3
Enclosure Rating: IP65/IP68
Operating Temperature: -40 to 85 deg C (IEC) Ambient, -40 to 90 deg C (UL) Ambient
Fire Protection Class: UL94:V-0
Standards: UL E343181, CE Certified, IEC 62852:2014+AMD1:2020 - R 60149724, ETL Listed
Dimensions: 42.8 mm Height x 55 mm Length
