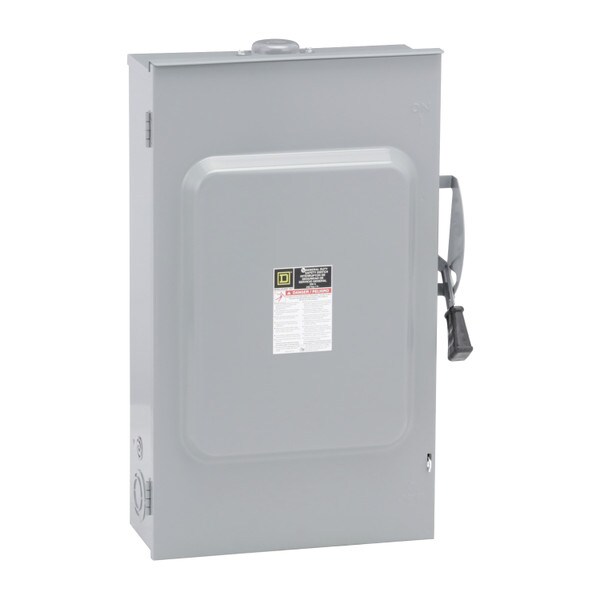

Square D D324NRB 200A 3-Pole AC Disconnect

General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory installed neutral assembly or field installed service grounding kit. This general duty single throw safety switch is a three pole, 200A, fusible disconnect with a 240VAC voltage rating. This switch has a factory installed neutral and a NEMA 3R enclosure and is surface mounted. This safety switch accepts H, K, or R fuses. This switch comes with lugs suitable for aluminum or copper conductors. These general duty switches are UL listed.

Feature Bullets

• General duty fusible 200A, 240VAC safety switch for residential and commercial applications
• Type 3R enclosure for rainproof applications, with bolt on hub provision
• Excellent for disconnecting lighting, air condition, and appliances
• Suitable for service entrance when equipped with neutral assembly or equipment grounding kit
• Factory installed neutral

Specifications:

Type: Single Throw, Fusible Disconnect
Series/Model: D32
Nominal Voltage Rating: 240 VAC
Frequency Rating: 60 Hz
Phase: 3
Number of Poles: 3
Current Rating: 200 A
Enclosure Rating: NEMA 3R
Dimensions: 29.25 in Height x 19 in Width x 8.5 in Depth
Wire Size: 6-250 kcmil Aluminum/Copper
Short Circuit Rating: 100 kA
Power Rating: 15 hp at 240 V AC 60 Hz for 1 phase, 25 hp at 240 V AC 60 Hz for 3 Phase, 60 hp at 240 V AC 60 Hz for 3 phase
Mounting Type: Surface
Connection Type: Lug
Number of Wires: 4
Torque Rating: 275 in-lbf
Standards: UL Listed
Warranty: 18 Months
Weight: 56.5 lb
Application: Residential
