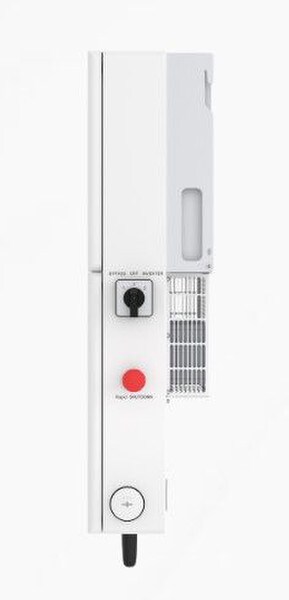

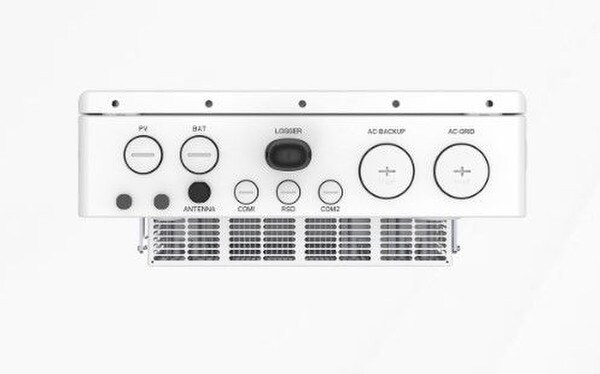

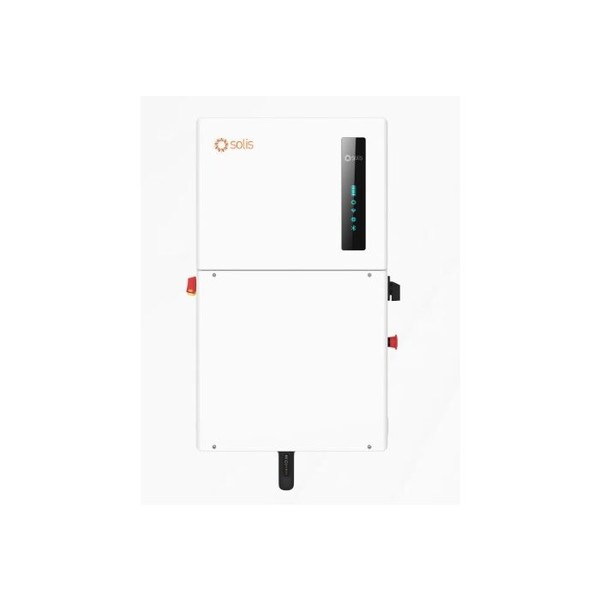

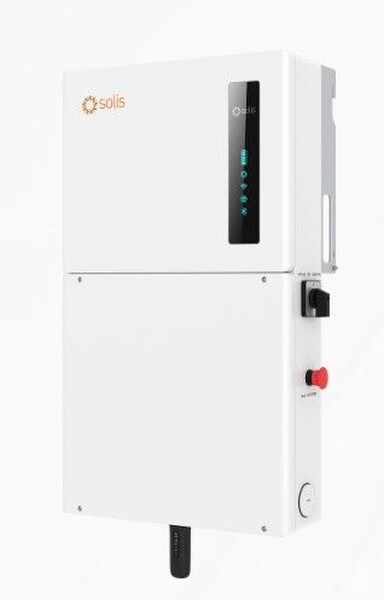

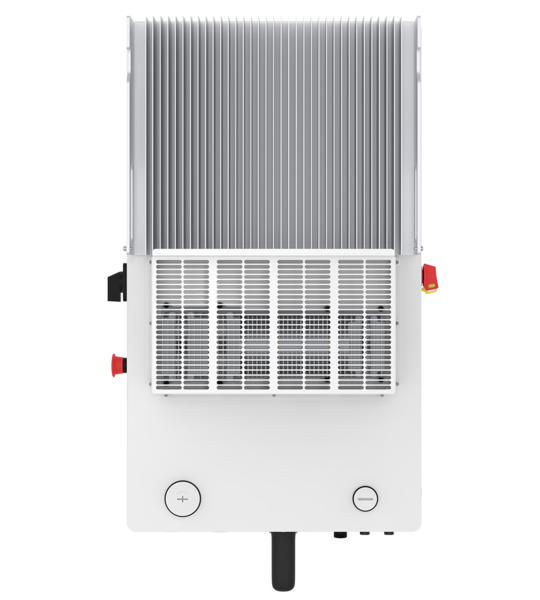

Solis S6 Hybrid Inverter 6kW Single Phase Three MPPT with APS Transmitter

The S6 (Series 6) hybrid energy storage string inverter is the latest Solis US model certified to IEEE 1547-2018, UL 1741 SA & SB, and SunSpec Modbus, providing economical zero-carbon power from an all-weather (Type 4X / IP 66) high-efficiency PV string inverter. This hybrid inverter can be DC-coupled to a variety of batteries, enabling a versatile off or on-grid solution. The S6 hybrid is a grid-forming inverter that supports the latest high-powered PV modules with 16A DC inputs at each MPPT. Safeguard your power, while ensuring the ability to easily grow your solution and preserve your investment.

Feature Bullets

• Highly Flexible - Able to supply a wide range of continuous backup, power in the event of a grid outage, Generates 120/240V backup power without an, external autotransformer, Compatible with multiple battery brands, providing, up to 150 kWh of storage capacity per inverter, Allows up to ten (10) inverters to be stacked in parallel for maximum scalability and flexibility
• Safe and Reliable - UL 1741 SA/SB and UL 9540 certified, California Rule 21 and HECO Rule 14H compliant (1), NEC 2020 compliant with various integrated RSD, transmitter options are available for module-level rapid shutdown (2), External RSD & emergency power off switch options are also available
• Intelligent Design - Supports operation in parallel with a generator and allows the generator to function as the grid source if utility power is lost, Optional integrated revenue-grade meter and external energy meter for production & consumption monitoring and export power control, SolisCloud allows for remote system troubleshooting, firmware upgrading, and configuration, reducing O&M costs
• Efficient Performance - • Maximum PV input current up to 16A per string, Generates up to 50A/114kW of continuous backup, power with up to 76A for ten seconds, Backup transfer (switch) time is < 10ms, DC to DC battery charging for optimal use of PV generated energy

Specifications:

Series/Model: S6
Rated Output Power: 6 kW - (AC Output (Grid))
Maximum Apparent Output Power: 6 kVA - (AC Output (Grid))
Rated Output Power: 6 kW - (AC Output (Grid))
Includes: Hybrid Inverter, APS Transmitter
Warranty: 10 Years
Application: Residential
