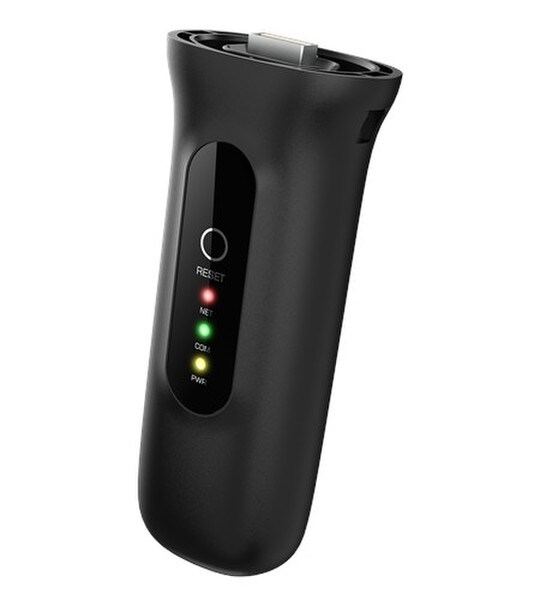

Solis 128 mm USB Solis inverter Solis Data Logging Stick

Use RS485 communication method to connect the inverters, up to 10 Solis Single Phase Grid-Tie inverters can be connected at the same time. Data communication with the monitoring system through wireless WiFi network or LAN, which can realize remote control and monitoring. The network transmits intuitive data, which is convenient for customers to monitor anytime and anywhere.

Feature Bullets

• Fault alarm, real-time monitoring
• Plug and play, convenient and fast
• Status indicator, easy to display working status
• Reset button, one key to send data, convenient debugging

Specifications:

Type: Solis inverter
Length: 128 mm
Width: 50 mm
Height: 34 mm
Intervals: 5 min
Communication Interface: USB
Wireless Communication: 802.11b/g/n (2.4G-2.483G)
Operating Voltage: 5 Vdc
Operating Temperature: -30 to 65 deg C
Humidity: 5-95%
