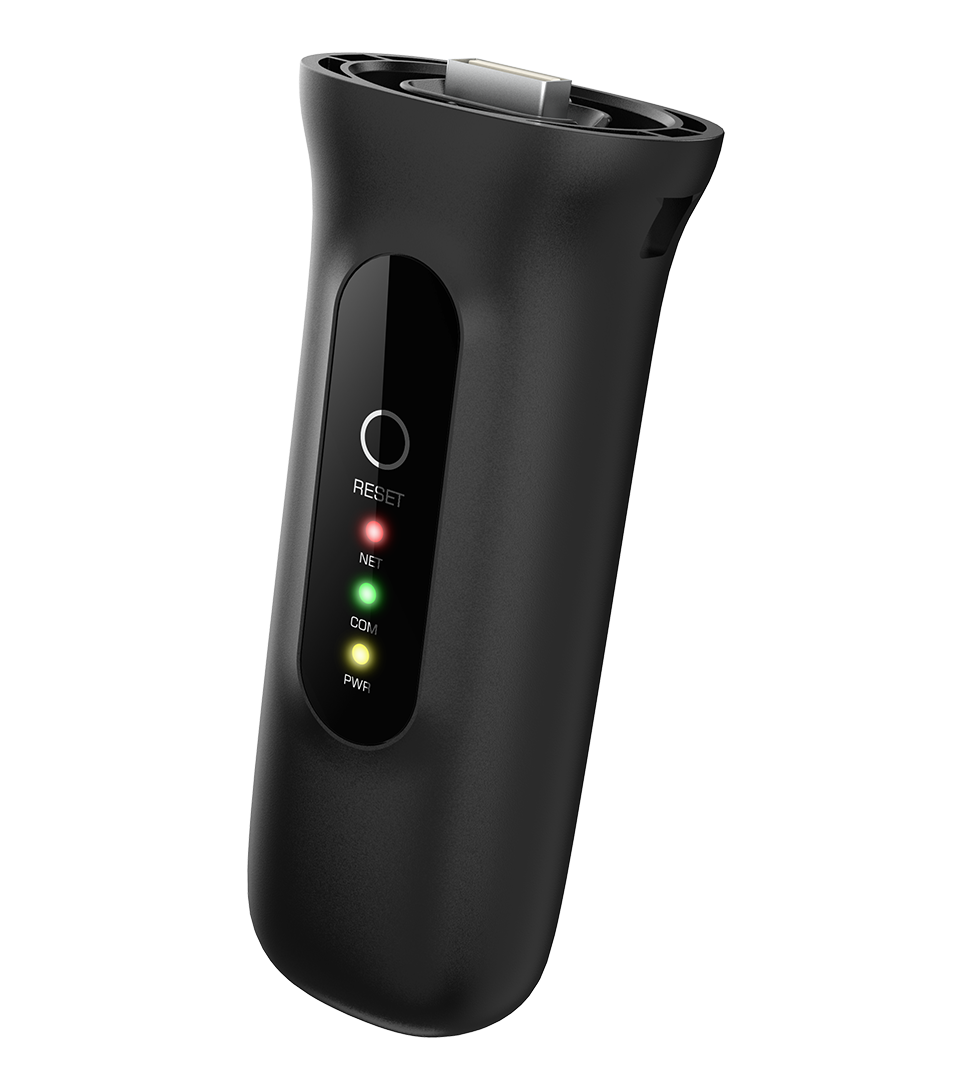

Solis Plugin WIFI Stick for Remote Monitoring w/ USB - 2 Year Standard Warranty

Use RS485 communication method to connect the inverters, up to 10 inverters can be connected at the same time. Data communication with the monitoring system through wireless Wi-Fi network, which can realize remote control and monitoring. The network transmits intuitive data, which is convenient for customers to monitor anytime and anywhere.

Feature Bullets

• Fault alarm, real-time monitoring
• Plug and play, convenient and fast
• Status indicator, easy to display working status
• RESET button, one key to send data, convenient debugging

Specifications:

Supported Device Type: Solis Inverter
Number of Connected Inverters: Data Collection Intervals: 5 min
Status indicator: 3 x LED
Communication Interface: 2.412 - 2.484 GHz
Configuration Method: APP/WEB
Wireless Communications: 802.11b/g/n (2.4G - 2.483G)
Operating Voltage: 5 VDC (+/-5%)
Operating Power Consumption: Operating Temperature: -30 to 65 deg C, -40 to 70 deg C Storage
Operating Humidity: 15-95%, RH, Non-Condensing
Operating Altitude: Protection Degree: IP65
Dimensions: 128 mm Length x 50 mm Width x 34 mm Height
Installation Method: Insert+Screw
Standards: CE, FCC
Weight: 84 g
