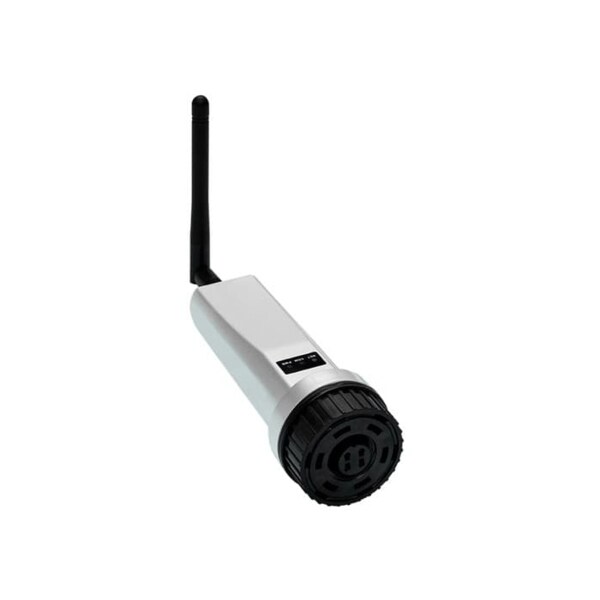

Solis Data Logging Stick - RS485 Communication

Use RS485 communication method to connect the inverter, and data connection through wireless Wi-Fi network, which can realize remote control and monitoring. The network transmits intuitive data, which is convenient for customers to monitor at any time and place.

Feature Bullets

• Fault alarm, real-time monitoring
• Status indicator, easy to display working status
• Plug and play, convenient and fast
• RESET button, one key to send data, convenient debugging

Specifications:

Communication Interface: External 4-Pin
Supported Device: Solis inverter
Number of Connected Inverters: </=10

Data Collection Intervals: 5 min
Status indicator: LED x 3
Wireless Communications: 802.11b/g/n (2.4G)
Configuration Method: App/Web
Operating Voltage: 5 VDC (+/-5%)
Operating Power Consumption: </=2 W

Operating Temperature: -30 to 65 deg C , -40 to 70 deg C Storage
Humidity: <40% Storage
Operating Altitude: 4000 m
Protection Degree: IP65
Dimensions: 133 mm Length x 44 mm Width x 44 mm Height
Installation Method: Externally Insert + Twist Lock
Standards: CE, FCC
Weight: 85 g
