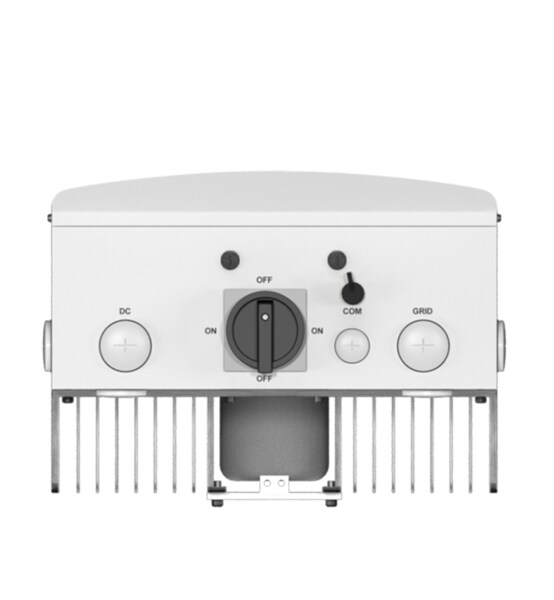

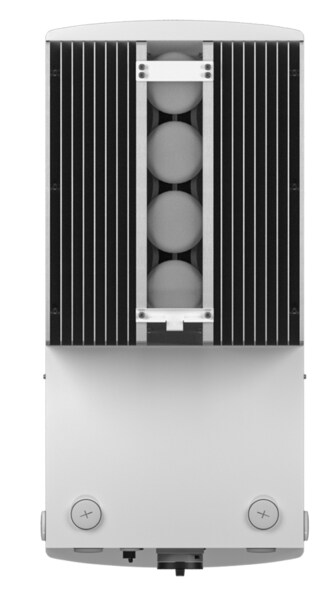

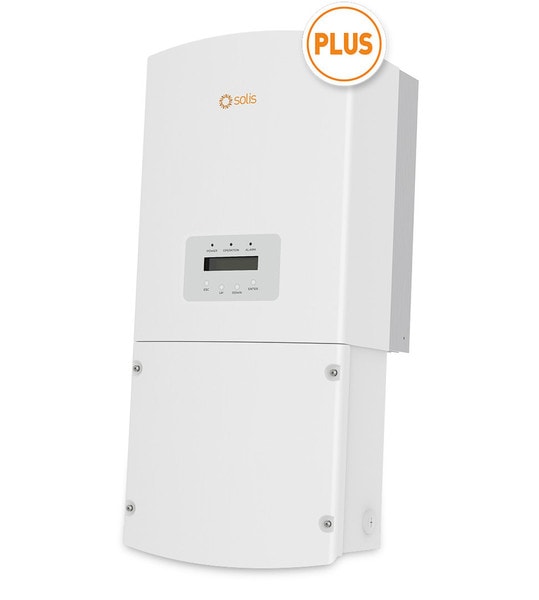

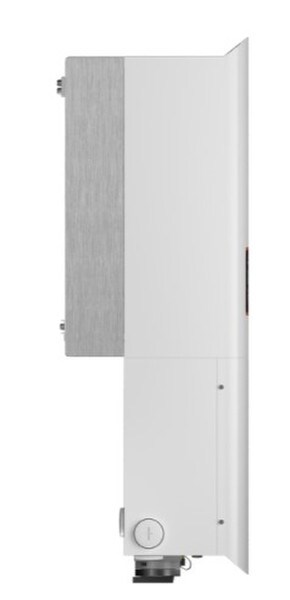

Solis Ginlong Technologies 6 kW Natural Convection Single-Phase String Inverter

Solis 6-10KW US plus version single phase string inverters have up to 4 MPPTs which are perfect for residential rooftop systems with different roof orientations. The maximum input current per string is up to 14A, which is compatible with new high-power and bifacial PV modules. A built-in (optional) ANSI C12.20, 0.5 Accuracy Class revenue grade meter will guarantee accurate data recording.

Feature Bullets

• String current up to 14A
• Support module level monitoring
• Industry-leading 3 and 4 MPPT designs
• CA Rule 21 compliant and UL 1741 SB Certified
• Integrated module level rapid shutdown transmitter
• Sunspec protocol with option cellular and WiFi
• AFCI protection, proactively reduces fire risk

Specifications:

Type: Single-Phase
Length: 28.8 in
Width: 13.1 in
Depth: 9.8 in
Input Voltage: 600 V
Output Voltage: 240/208 V
Power Rating: 6 kW
Input Current: 14 A
Amperage Rating: 25/28.8 A
Efficiency: 97.8%
Frequency Rating: 60 Hz
Cooling Type: Natural Convection
Power Factor: >0.99
Connection Type: Knockout/Screw Terminal
Temperature Rating: -13 to 140 deg F
Display Type: LCD
