  • Solaria PowerXT 430W 20 Cell Mono BLK/BLK 1000V Solar Panel

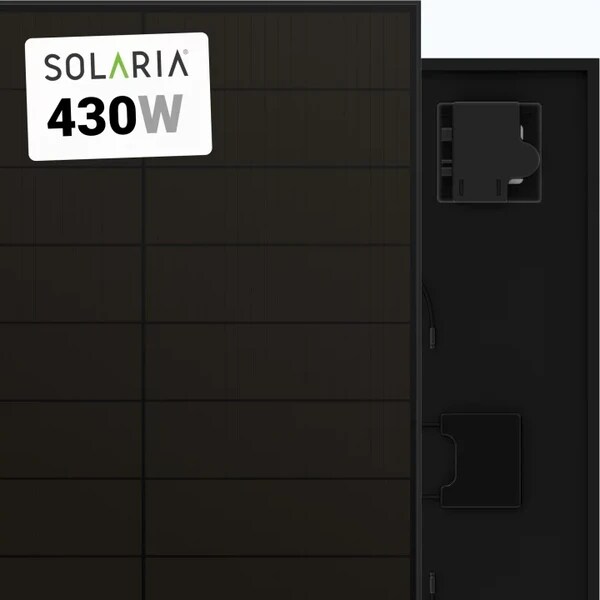

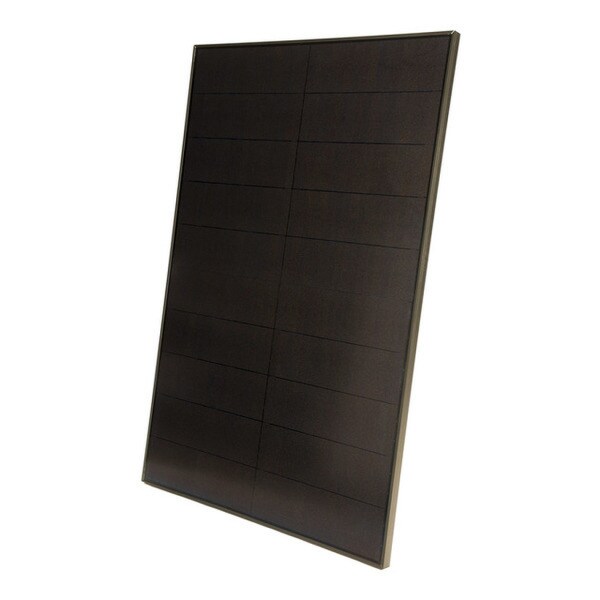

Solaria PowerXT 430W 20 Cell Mono BLK/BLK 1000V Solar Panel

(0)No Reviews yet
$480.00
SKU: PowerXT-430R-PL
WEIGHT: 50 kg
DIMENSION: 50 x 50
MANUFACTURE NUMBER: 111

This item is IN STOCK

Current Stock: 150

Description



  • Achieving 20% efficiency, Solaria PowerXT-C solar panels are one of the highest power panels in the residential and commercial solar market. Compared to conventional panels, Solaria PowerXT panels have fewer gaps between the solar cells; this leads to a higher power and superior aesthetics. Solaria PowerXT Pure Black panels are manufactured with black back sheet and frames, enhancing a home or building’s architectural beauty.



    Developed in California, Solaria’s patented cell cutting and panel assembly takes processed solar wafers and turns them into PowerXT solar panels. The process starts by creating a highly reliable PowerXT cell where busbars and ribbon interconnections are eliminated. Solaria then packages the cells into the PowerXT solar panel, reducing inactive space between the cells. This process leads to an exceptionally cost-effective and efficient solar panel.



Technical Specifications

Watts STC

430 W
Cells

20
Technology

Mono
Open Circuit Voltage (Voc)

47.3
Short Circuit Current (Isc)

11.43
Max Power Voltage (Vmpp)

39.3
Max Power Current (Impp)

10.93
Efficiency

19.9
Max System Voltage

1000
Frame Material

Black Anodized
Frame Thickness (mm)

40
Frame Color

Black
Backsheet Material

Black
Connector

MC4
Series Fuse Rating (Amps)

15
Temp Coefficient (Pmpp)

-0.39
Temp Coefficient (Voc)

-0.29
Fire Classification (Type)

1

Item Documents Download
