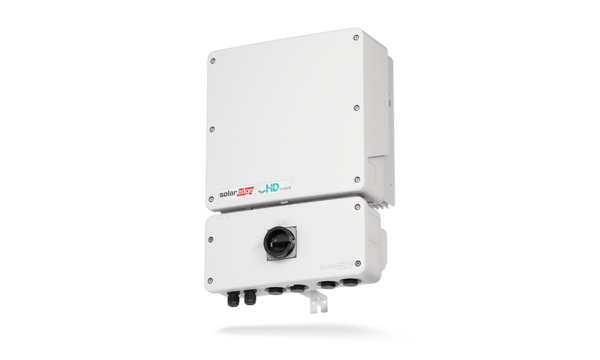

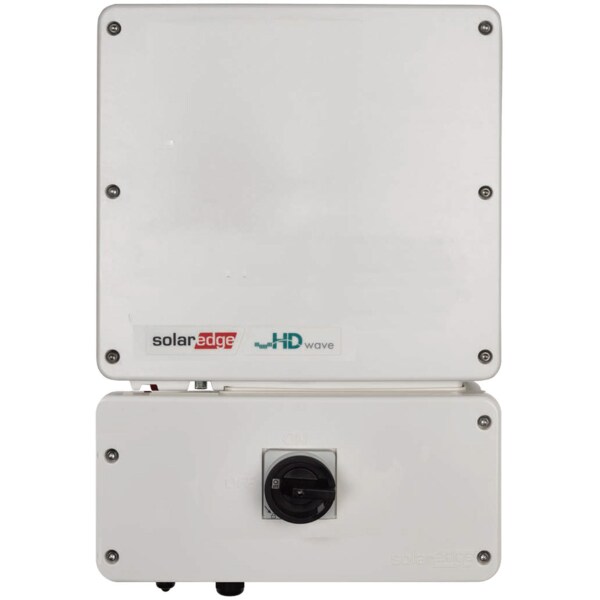

SolarEdge Single Phase Home Hub Inverter with Home Net Compatible & HD Wave Technology

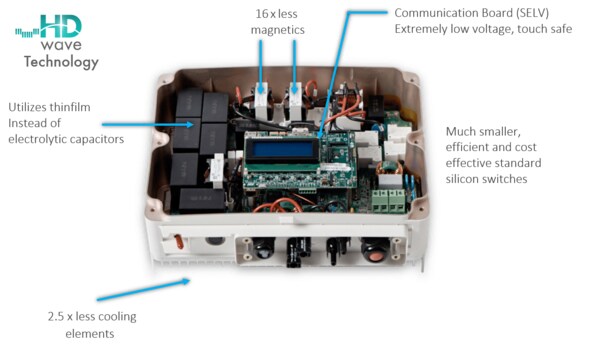

The SolarEdge single phase inverter with Home Wave technology breaks the mold of traditional solar inverters. Winner of the prestigious 2016 Intersolar Award and the renowned 2018 Edison Award, the single phase inverter is specifically designed to work with SolarEdge power optimizers. It comes with a built-in DC safety switch, integrated rapid shutdown, and features a standard 12-year warranty extendable to 20 or 25 years. SolarEdge's Innovative Inverter Topology: Because Maximum Power Point Tracking and voltage management are handled separately for each solar module by the SolarEdge power optimizer, the single phase inverter is only responsible for DC to AC inversion. Consequently, it is a simpler, more cost effective, more reliable solar inverter. The fixed string voltage ensures operation at the highest efficiency at all times independent of string length and temperature. Home Wave Technology: A New Era for PV Inverters - SolarEdge's latest generation of single phase inverters are designed using a novel power conversion technology that is based on a distributed switching and powerful DSP processing. The inverter is able to synthesize a clean sine wave that leads to a dramatic reduction in the magnetics and heavy cooling elements. The result is an even smaller and lighter inverter for simplified shipping and storing, and easy one-person installation. The record-breaking 99% efficiency allows more energy production for an improved ROI. SolarEdge home inverters now available with integrated production and consumption monitoring . Only requiring the simple connection of two external SolarEdge CTs (sold separately) to enable consumption monitoring, giving homeowners clear insight into their energy usage.

Feature Bullets

• Specifically designed to work with SolarEdge power optimizers
• 3kW to 11.4kW range
• 99% weighted efficiency (33%-50% less losses than the market standard)
• Small, lightweight, and easy to install
• Up to 155% oversizing allowed
• High reliability due to lower heat dissipation
• Faster inverter commissioning using your smartphone with SolarEdge SetApp
• Standard 12-year warranty (extendable to 20 or 25 years)
• Built-in module-level monitoring
• Internet communication via Ethernet or wireless connectivity (using optional ZigBee® or cellular plug-ins)
• NEMA 4X - suitable for outdoor and indoor installations
• Integrated arc fault protection and rapid shutdown for NEC 2014 and 2017, 690.11 and 690.12
• Optional: Faster installations with built-in consumption metering (1% accuracy) and production revenue grade metering (0.5% accuracy, ANSI C12.20)
• All inverters are UL1741 SA certified, for CPUC Rule 21 grid compliance

Specifications:

Width: 14.6 in
Height: 21.06 in
Depth: 8.5 mm
Maximum Input Voltage: 480 VDC
Nominal DC Input Voltage: 380 VDC
Transformer-Less, Ungrounded: Yes, Input
Reverse-Polarity Protection: Yes, Input
Ground Fault Isolation Detection: 600 kOhm Sensitivity Input - DC (PV & Battery)
Maximum DC Power at 208V: 1550 W Input
Maximum DC Power at 240V: 17650 W Input
Maximum Input Current at 240 V: 30.5 A
Maximum Input Current at 208 V: 27 A
Maximum Input Short-Circuit Current: 45 A
Maximum Inverter Efficiency: 99.2% Input
CEC Weighted Efficiency: 99% at 240V, 98.5% at 208V Input
Rated AC Output Power: 11400 W at 240 V, 10000 W at 208 V
Maximum AC Power Output: 11400 W at 240 V, 10000 W at 208 V
AC Output Voltage (Nominal): 240 VAC
AC Output Voltage (Range): 211-264 VAC
AC Frequency Range (Min-Nom-Max): 59.3-60-60.5 Hz
Maximum Continuous Output Current at 240 V: 47.5 A
Maximum Continuous Output Current at 208 V: 48.5 A
GFDI Threshold: 1 Output
Power Factor: 1, Adjustable -0.85 to 0.85
Utility Monitoring, Islanding Protection, Country Configurable Thresholds: Yes, Output
Typical Nighttime Power Consumption: <2.5 W Input
Supported Communication Interfaces: RS485, Ethernet, Wireless SolarEdge Home Network
Inverter Commissioning: With the SetApp Mobile Application using built-in Wi-Fi Access Point for Local Connection
Phase: 1
Noise Rating: <50 dBA
Cooling: Natural Convection
Operating Temperature: -40 to 140 deg F
Protection Rating: NEMA 4X
Standards: Conforms to UL 1741, UL 1741SA, UL 1741SB, UL 1699B, Certified by CSA 22.2#107.1, C22, 2#330, C22.3#9, ANSI/CAN/UL 9540, IEEE1547 & IEEE-1547.1, Rule 21, Rule 14H, FCC Part 15 Class B, CSAcUS
Warranty: 12-25 Years
Weight: 44.9 lb
Application: Residential Purpose
