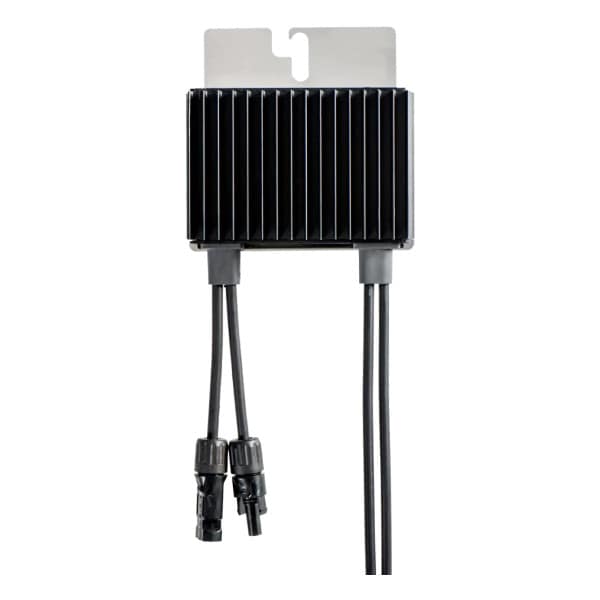

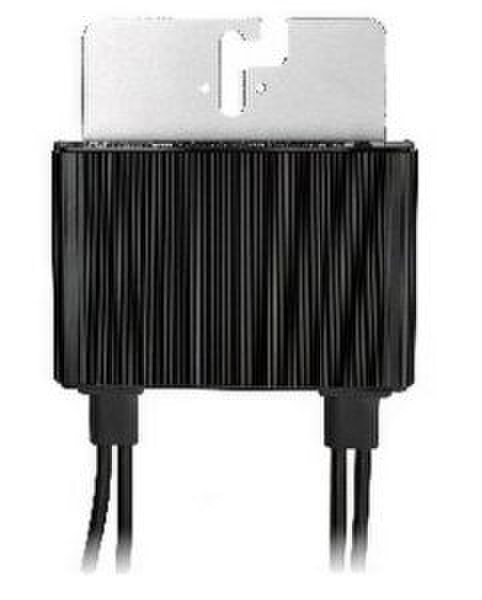

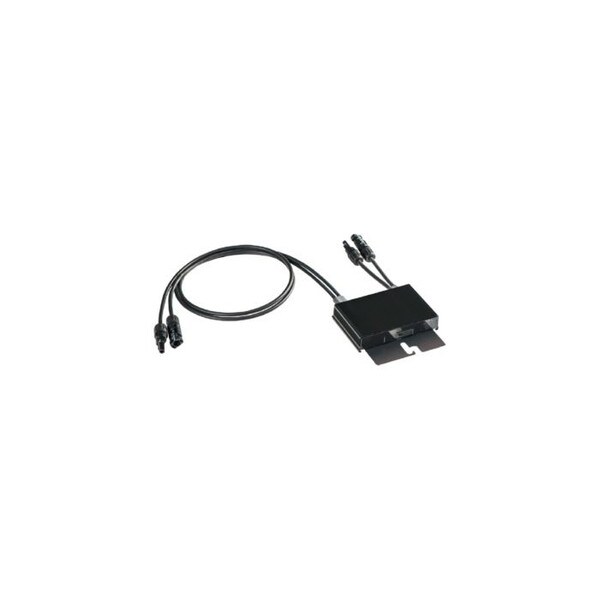

SolarEdge S440 Power Optimizer (SKU Part Number S440-1GM4MRM)

The SolarEdge Power Optimizer is a device that attaches directly to your solar module and uses MPPT technology to optimize the DC power before sending it to the inverter. The Power Optimizer is very similar to a microinverter. However, the Power Optimizers do not actually invert the DC power to AC power. The optimizers allow you to see system performance and diagnostics at the module level, similar to a microinverter, yet they last much longer due to the type of electronics used in the device. Microinverters have a much shorter lifespan vs a power optimizer. The SolarEdge optimizers come with a 25 year warranty, which means it's not too likely that you will ever have to service any of the devices once they're installed. Unlike a microinverter system, the Power Optimizers feed DC energy into a specifically designed inverter that maximizes the efficiency and output of the solar array.

Feature Bullets

• Specifically designed to work with SolarEdge residential inverters
• Detects abnormal PV connector behavior, preventing potential safety issues
• Module-level voltage shutdown for installer and firefighter safety
• Superior efficiency (99.5%)
• Mitigates all types of module mismatch loss, from manufacturing tolerance to partial shading
• Faster installations with simplified cable management and easy assembly using a single bolt
• Flexible system design for maximum space utilization
• Compatible with bifacial PV modules

Specifications:

Rated Input DC Power: 440 W
Absolute Maximum Input Voltage: 60 VDC
MPPT Operating Range: 8-60 VDC
Maximum Short Circuit Current (ISC) of Connected PV Module: 14.5 ADC
Efficiency: 99.5%
Maximum Output Current: 15 ADC
Maximum Output Voltage: 60 VDC
Safety Output Voltage: 1 +/-0.1 VDC
Input Connector: MC4
Wire Length: 0.1 m (Input), (+) 2.3m (-) 0.10 (Output)
Operating Temperature: -40 to 85 deg C
Enclosure Rating: IP68
Relative Humidity: 0-100%
Dimensions: 155 mm Length x 129 mm Width x 30 mm Height
Standards: FCC Part 15 Class B, IEC61000-6-2, IEC61000-6-3, CISPR11, EN-55011, IEC62109-1 (class II safety), UL1741, RoHS Compliant
Warranty: 25 Years
Weight: 720 g
