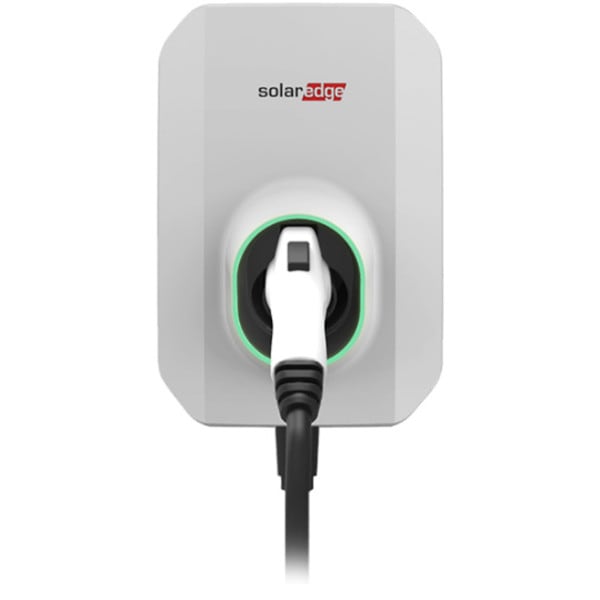

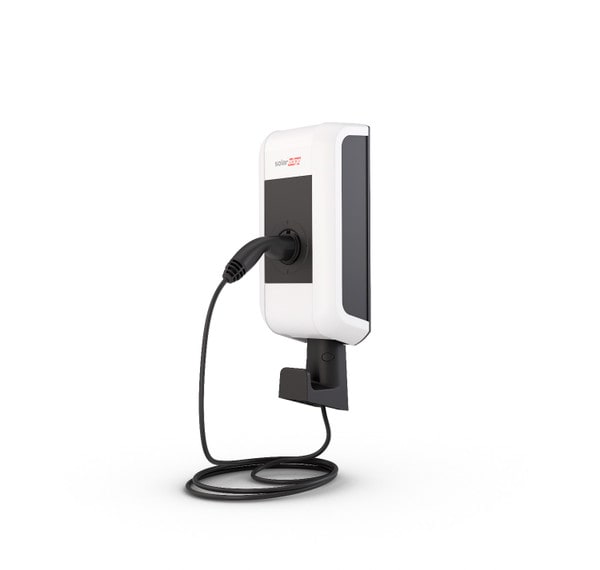

SolarEdge 9.6 kW Home EV Charger with Cable

Our smart home EV chargers use available solar energy for EV charging, providing the convenience of quick charging from home with cleaner, cheaper, renewable energy.

Feature Bullets

• Residential EV charging solution that seamlessly integrates with the full SolarEdge Home ecosystem
• Utilizes excess PV to charge EV from the sun, for reduced homeowner electricity bills
• Charge smarter with our custom scheduling feature, allowing automatic charging during low-rate periods
• Suitable for single and three phase installations, for both indoor and outdoor use
• Control and monitoring via the mySolarEdge app, including remote operations, charging schedules, and charging history
• Optional RFID card authentication and MID meter

Specifications:

Rated Output AC Power: 9.6 kW
Charging Mode: AC Level 2
Maximum Continuous Output Current: 40 A AC at 240 VAC
Nominal AC Output Voltage: 240 VAC
Nominal AC Frequency: 60 Hz
Ground Fault Detection Threshold: 5 mA
Supported Communication Interfaces: Wi-Fi (built-in antenna included), Ethernet, RS485 and Cellular (Optional)
Smart Energy Management: Controlled Excess Solar Charging
EV Charger Status LEDs/Fault Indicator: Yes
EV Charger Unplugging Detection: Yes, Current Termination According to SAE J1772
EV Charger Ground Connection Monitoring: Yes, Continuous
EV Charger Configuration: Installer Commissioning via SetApp, Homeowner Configuration Controls and Monitoring via mySolarEdge app
AC Connection Plug: NEMA 6 - 50
EV Charger Connector: SAE J1772-2009
EV Charger Cable Length: 25 ft
EV Charge Cable Weight: 12.5 lb
Operating Temperature: -22 to 122 deg F
Enclosure Rating: NEMA 3R
Standards: IEC60950, UL60950, C-Tick, FCC Part 15 cETLus Listed B IEC61000-6-3, IEC 61000-6-2
Warranty: 5 Years
Weight: 6.3 lb
