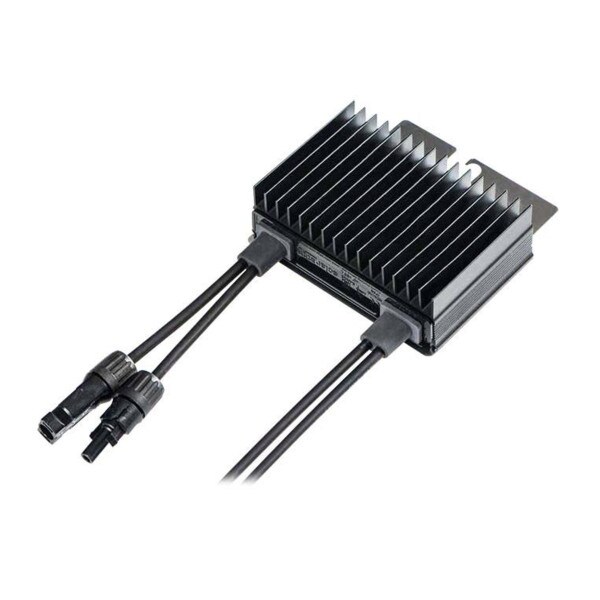

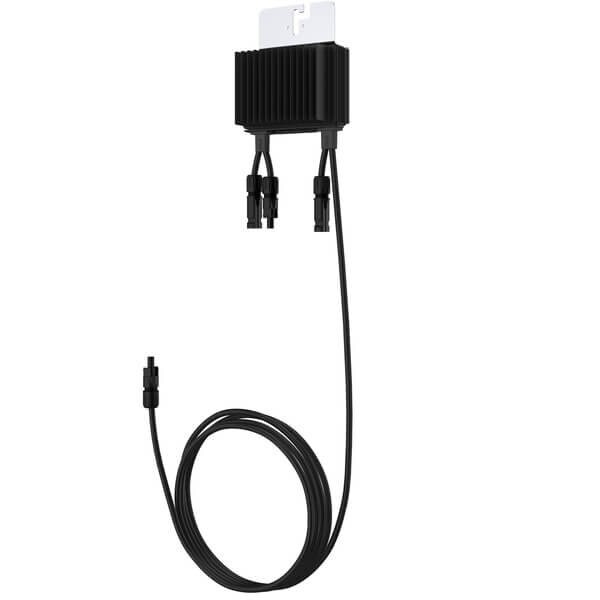

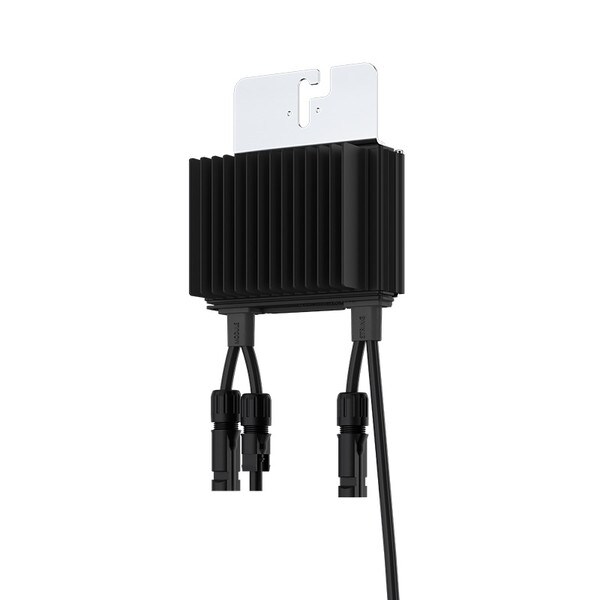

SolarEdge 850 W Power Optimizer

Maximize solar panel production and mitigate all types of panels mismatch-loss, from manufacturing tolerance to partial shading and aging, while ensuring the highest levels of system safety.

Feature Bullets

• PV power optimization at the module level
• Specifically designed to work with SolarEdge inverters
• Up to 25% more energy
• Superior efficiency (99.5%)
• Balance of System cost reduction; 50% less cables, fuses, and combiner boxes, and over 2x longer string lengths possible
• Fast installation with a single bolt
• Advanced maintenance with module level monitoring
• Module level voltage shutdown for installer and firefighter safety
• Use with two PV modules connected in series or in parallel
• The most cost-effective solution for commercial and large field installations

Specifications:

Rated Input DC Power: 850 W
Connection Method: Single Input for Series Connected Modules
Absolute Maximum Input Voltage: 125 VDC
MPPT Operating Range: 12.5-105 VDC
Maximum Short-Circuit Current (ISC): 14.1 ADC
Maximum Efficiency: 99.5%
Weighted Efficiency: 98.8%
Over Voltage Category: Category II
Maximum Output Current: 18 ADC
Maximum Output Voltage: 80 VDC
Safety Output Voltage Per Power Optimizer: 1 +/-0.1 VDC
Standards: EMC - FCC Part 15 cETLus Listed B, IEC61000-6-2, IEC61000-6-3, Safety IEC62109-1 (cETLus Listed II Safety), RoHS Complaint, VDE-AR-E 2100-712:2018-12
Compatible SolarEdge Inverters: Three Phase Inverter SE16K & Large
Maximum Allowed System Voltage: 1000 VDC
Input Connector: (4) MC4
Input Wire Length: 0.16 m, 0.9 m, 1.3 m, 1.6 m
Output Connector: MC4
Output Wire Length: 1.2-2.2 m
Temperature Rating: -40 to 85 deg C/-40 to 185 deg F
Enclosure Rating: IP68/NEMA 6P
Relative Humidity: 0-100%
Warranty: 25 Years
Weight: 2.34 lb
